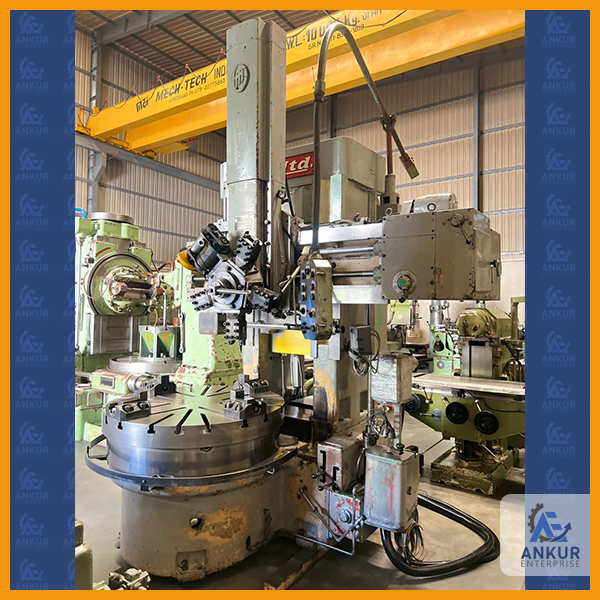

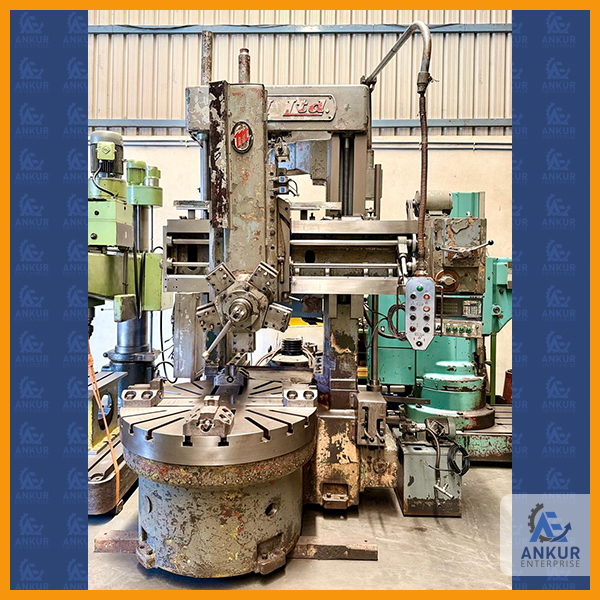

| VTL | |
| MAKE | O-M (JAPAN) |

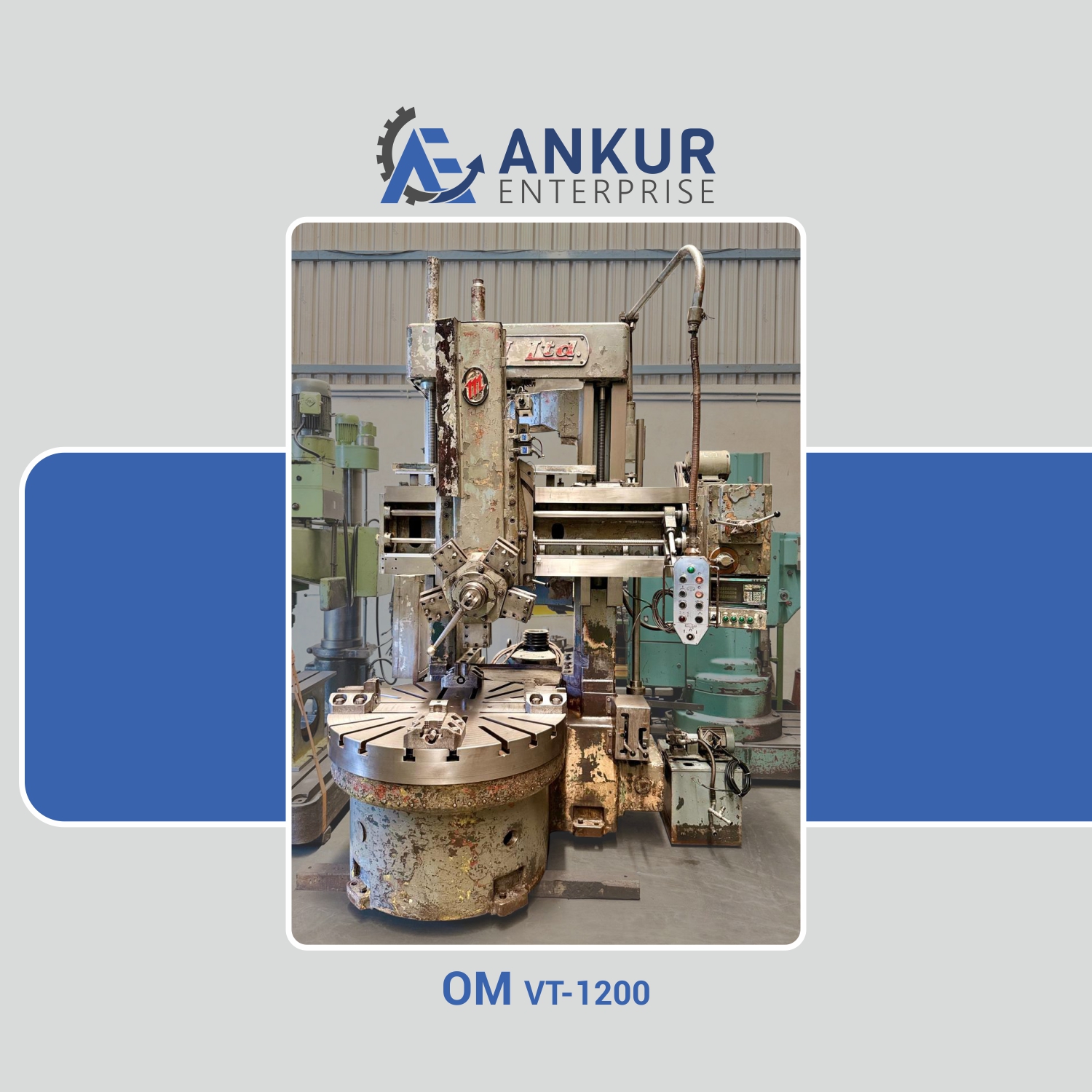

| MODEL | VT-1200 |

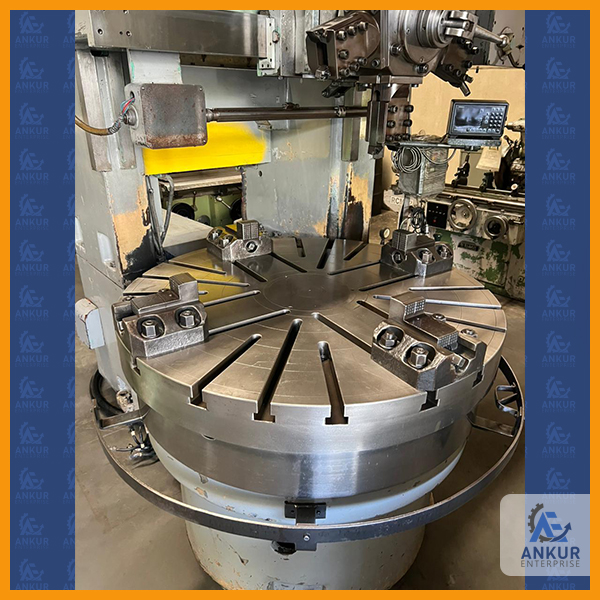

| CHUCK DIA. | 1250 MM |
| MAX. TURNING DIA. | 1600 MM |
| MAX. TURNING HEIGHT ABOVE TABLE | 1030 (930) MM |
| MAX. LOAD CAPACITY | 4 TON |
| VERTICAL TRAVEL OF TURRET HEAD | 700 MM |
| TOOL POST HORIZONTAL TRAVEL DISTANCE | 950 MM |
| TABLE SPEED | 3.6 TO 180 RPM |
| NO. OF TURRET POSITION | 5 |
| APPROX. WEIGHT | 8800 KG |

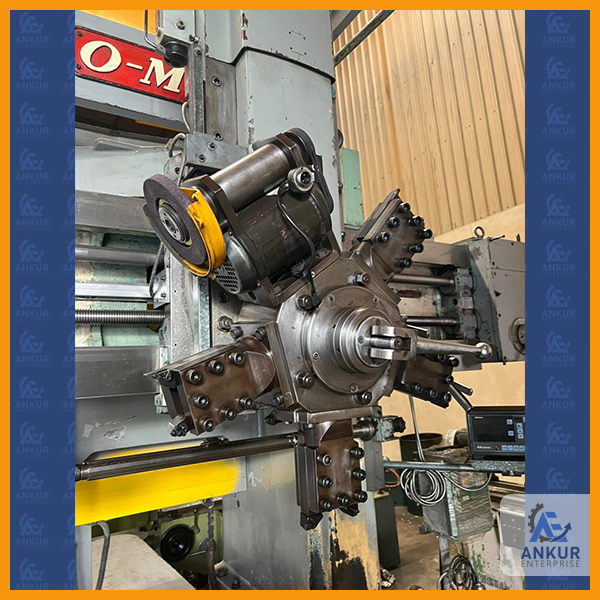

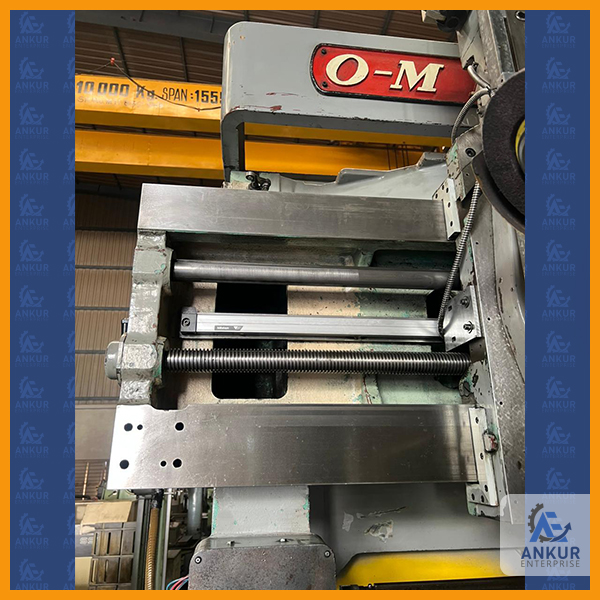

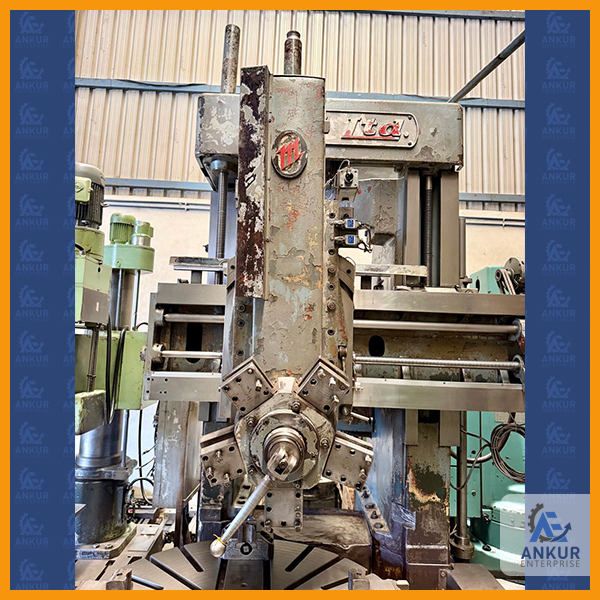

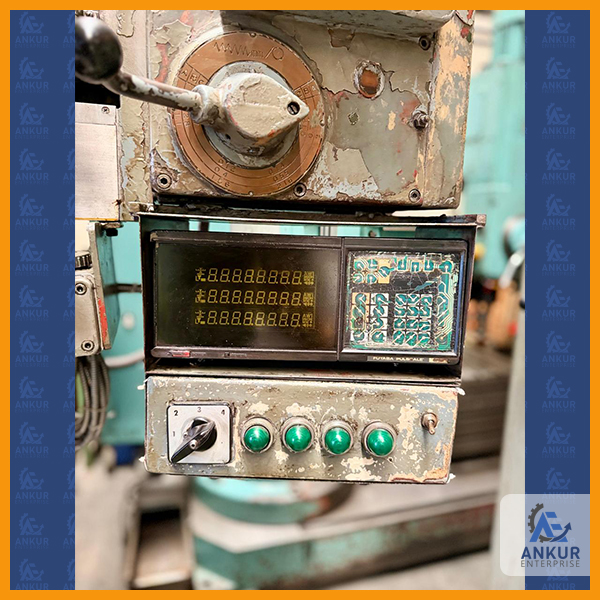

| THIS IS A TURRET TYPE MACHINE WITH GRINDING ATTACHMENT MOUNTED ON TURRET & EQUIPPED WITH DRO |
