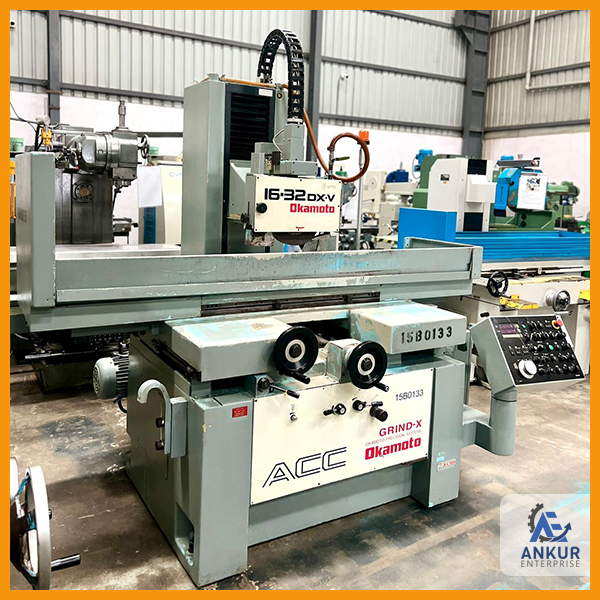

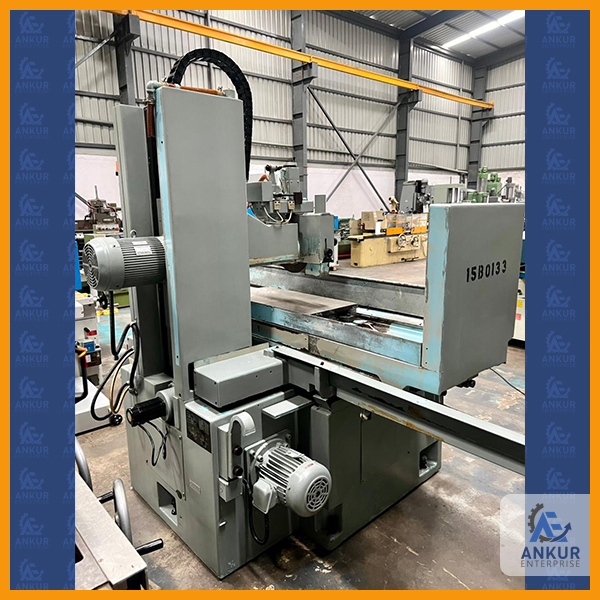

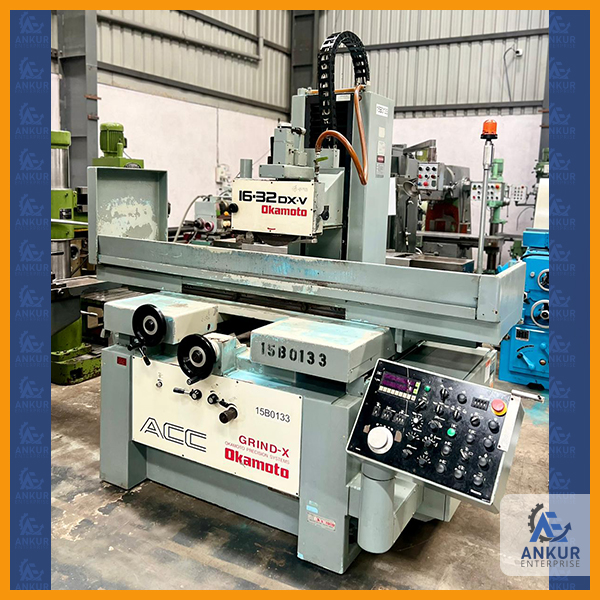

| SURFACE GRINDER | |

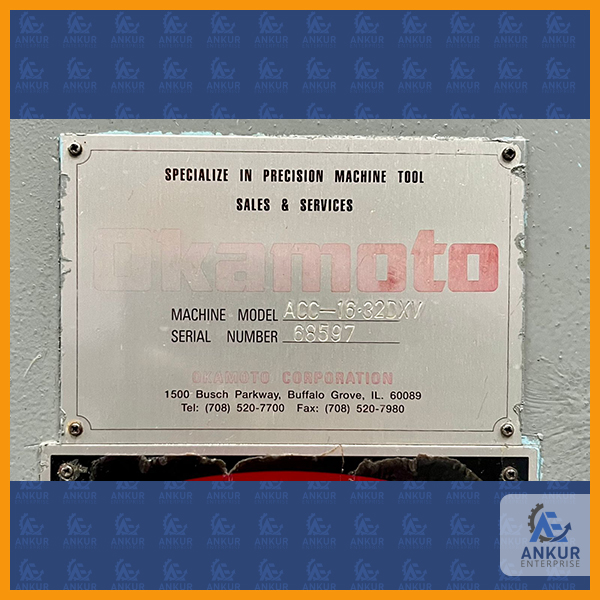

| MAKE | OKAMOTO (JAPAN) |
| MODEL | ACC 16-32 DX-V |
| MAGNET SIZE | 800X400 MM (ELECTROMAGNET) |
| WORKING SIZE | 960X450 MM |
| GRINDING WHEEL DIMENSIONS | 304X38X127 MM (DXWXH) |
| MAX. GRINDING WHEEL SPEED | 1800 RPM |
| MAX. DISTANCE UNDER 12” WHEEL | 545 MM |
| TOTAL LOAD CAPACITY INCLUDING CHUCK | 700 KG |
| SPINDLE MOTOR POWER | 5 HP |
| HYDRAULIC MOTOR POWER | 2 HP |

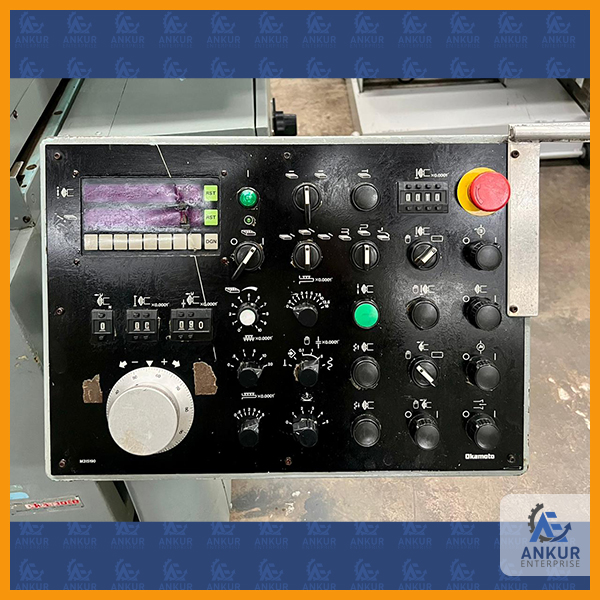

| FEATURES INCLUDE PROGRAMMABLE AUTOMATIC INCREMENTAL DOWNFEED OF WHEEL HEAD | |
| SERVO DRIVEN DOWNFEED | |
| SPARKOUT PASSES (0 TO 5) W/AUTO TABLE PARK AT COMPLETION OF GRIND CYCLE | |
| AUTO INCREMENTAL DOWNFEED FOR BOTH SURFACE & PLUNGE OPERATIONS | |

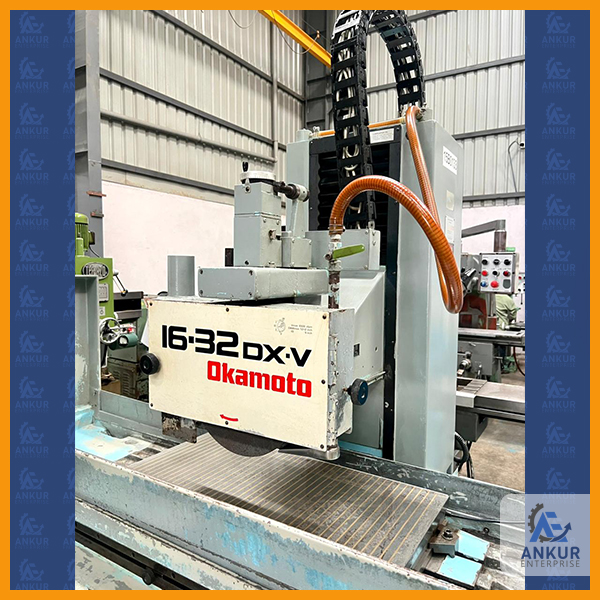

| EQUIPPED WITH OVERHEAD WHEEL DRESSER. |
