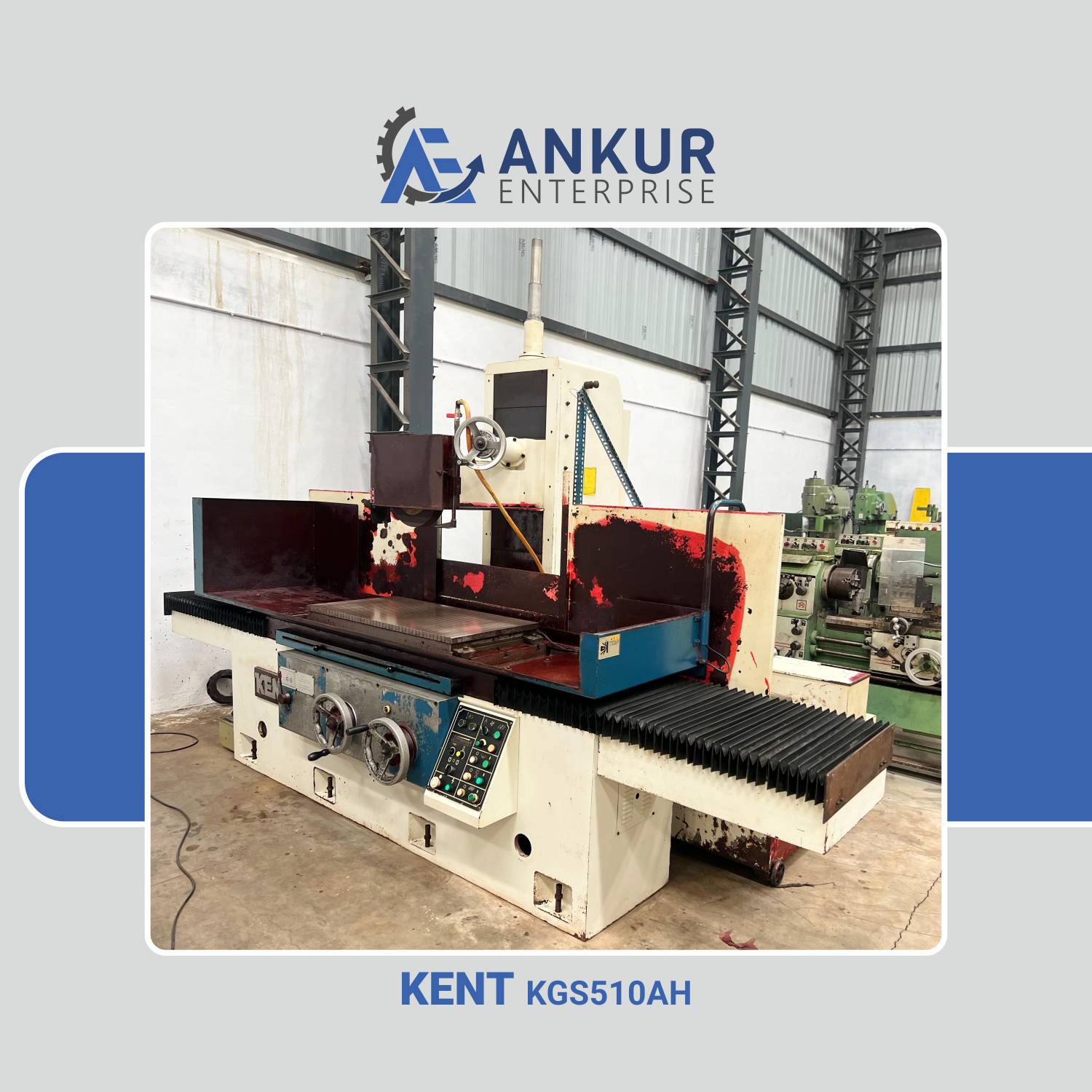

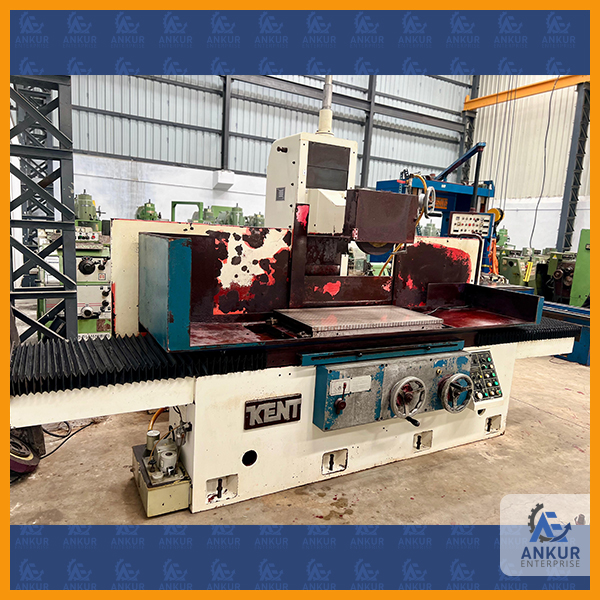

| MAKE | KENT (TAIWAN) |
| MODEL | KGS510AH |
| YEAR | 2004 |

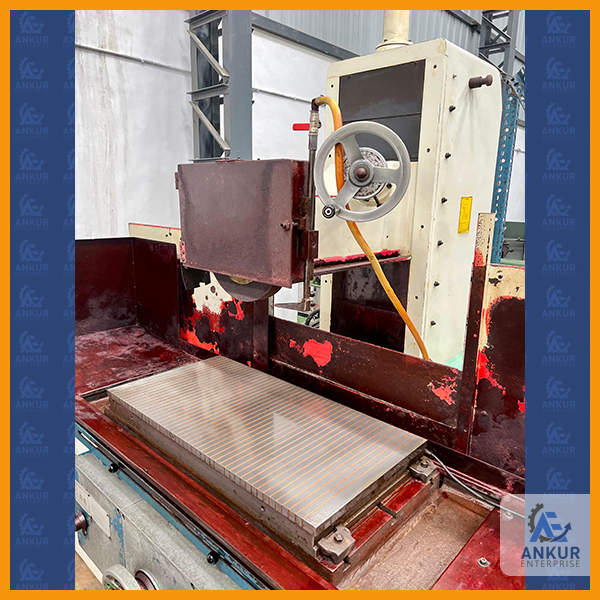

| MAGNET SIZE | 1000X500 MM (ELECTROMAGNET) |
| MAX. TRAVEL | 1140X540 MM |
| DISTANCE SPINDLE CENTER TO TABLE | 575 MM |
| MAX. TABLE LOAD INCLUDING CHUCK | 1000 KG |
| GRINDING WHEEL DIMENSIONS | 355X50X127 MM |
| SPINDLE SPEED | 1740 RPM |
| APPROX. WEIGHT | 5.5 TON |

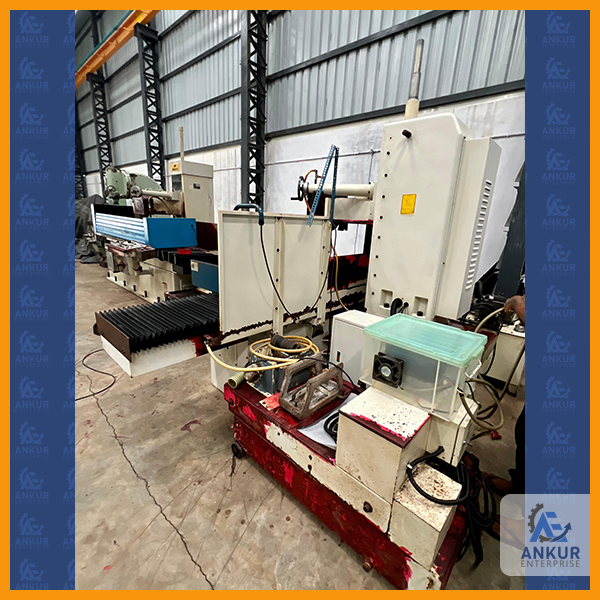

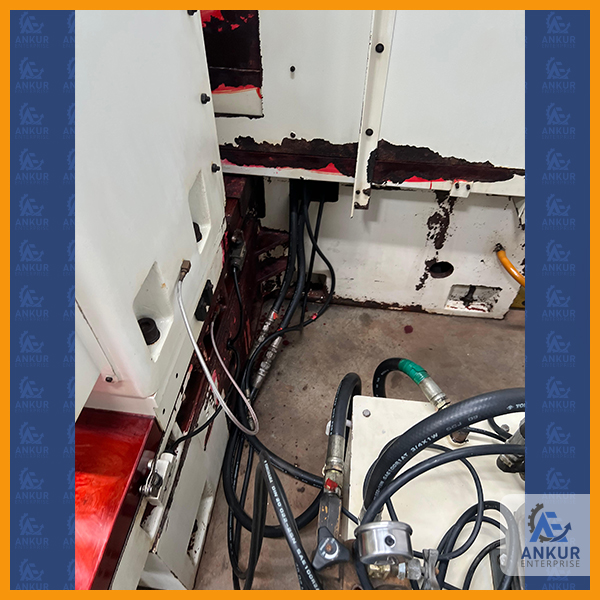

| EQUIPPED WITH HYDRAULIC POWER PACK, COOLANT PUMP & TANK, MAGNETIC SEPARATOR, AND WHEEL BALANCING STAND | |
| COLUMN MOVEMENT TYPE MACHINE |
