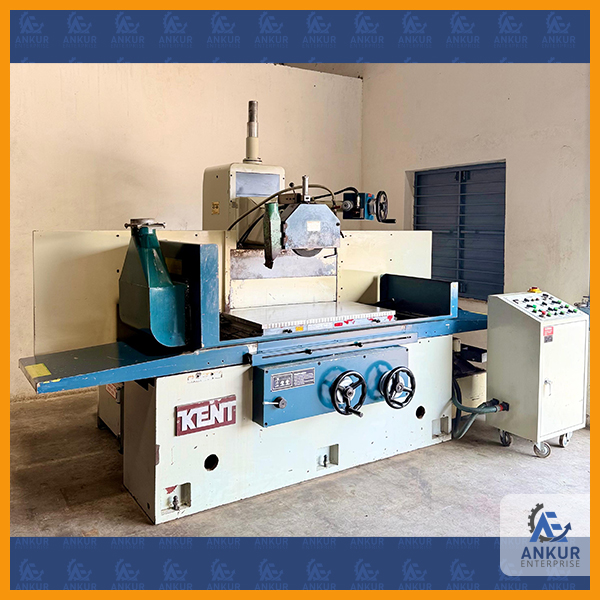

| SURFACE GRINDER | |
| MAKE | KENT (TAIWAN) |
| MODEL | KGS-510AHD |

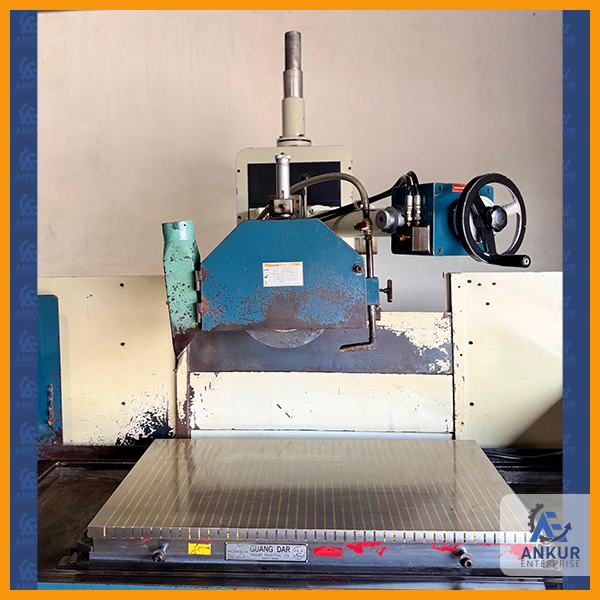

| MAGNET SIZE | 1000X500 MM (ELECTROMAGNET) |
| WORKING SIZE | 1140X540 MM |
| DISTANCE SPINDLE CENTER TO TABLE | 590 MM |
| GRINDING WHEEL DIMENSIONS | 355X38X50 (DXWXB) |
| SPINDLE SPEED | 1740 RPM |
| AUTO DOWN FEED INCREMENT | 0.005 TO 0.04 MM |
| SPINDLE MOTOR | 7.5 HP |
| APPROX. WEIGHT | 6 TON |
| COMPLETE WITH HYDRAULIC UNIT, MAGNETIC SEPARATOR & PAPER | |
| FILTER COOLANT SYSTEM, COOLANT TANK & PUMP. | |
| FEATURE INCLUDES AUTOMATIC DOWNFEED OF WHEELHEAD. | |
| EQUIPPED WITH OVERHEAD WHEEL DRESSER. |
