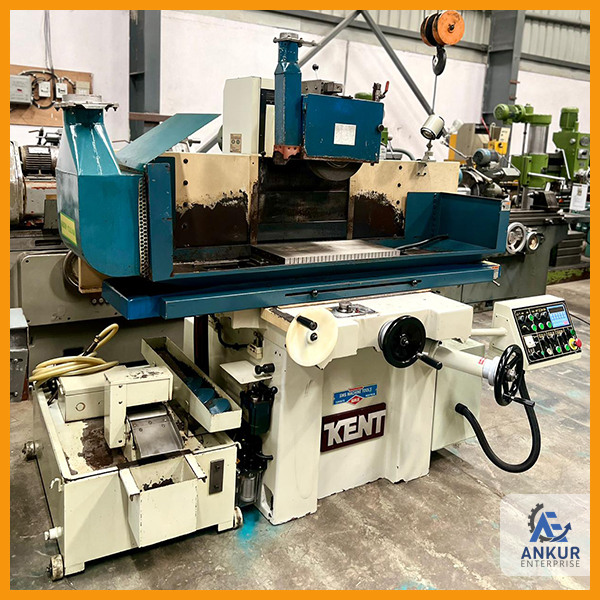

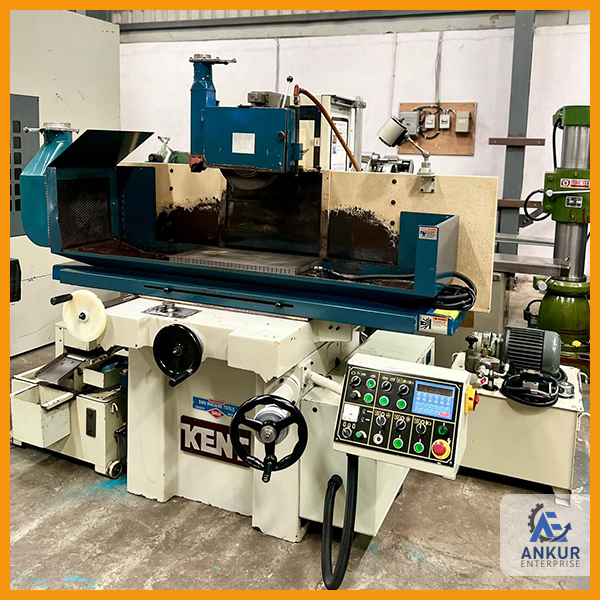

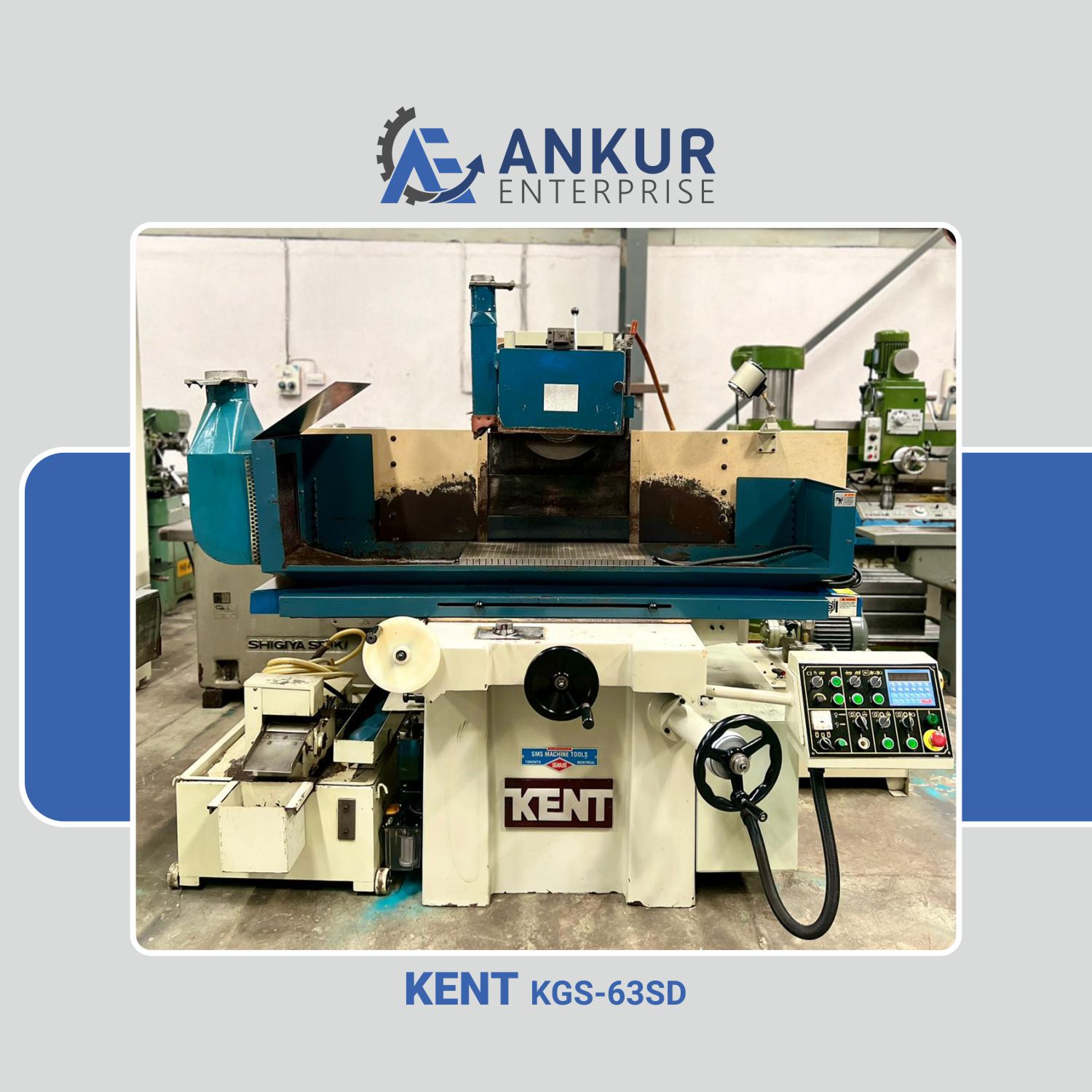

| SURFACE GRINDER | |

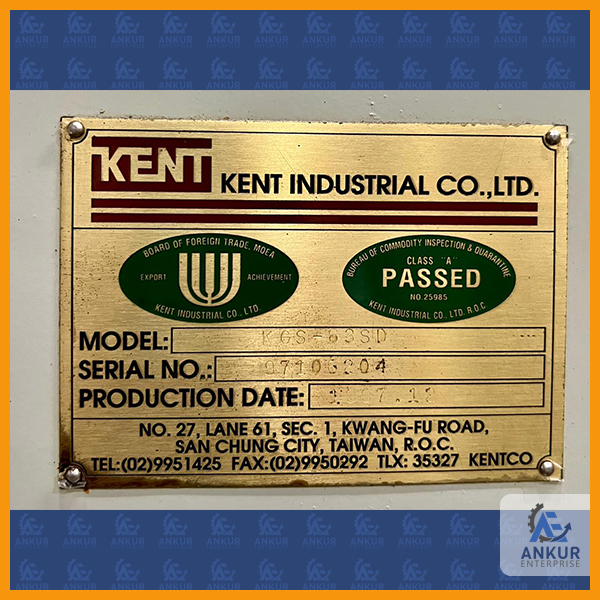

| MAKE | KENT (TAIWAN) |
| MODEL | KGS-63SD |
| MAGNET SIZE | 600X300 MM (ELECTROMAGNET) |
| WORKING SIZE | 710X340 MM |
| GRINDING WHEEL DIMENSIONS | 355X38X127 MM (DXWXH) |
| MAX. GRINDING WHEEL SPEED | 1740 RPM |
| DISTANCE SPINDLE CENTER TO TABLE | 540 MM |
| TABLE LOAD | 250 KG |
| COMPLETE WITH HYDRAULIC UNIT, MAGNETIC SEPARATOR UNIT, COOLANT TANK & PUMP | |
| FEATURE INCLUDES AUTOMATIC DOWNFEED OF WHEELHEAD & PLUNGE GRINDING MODE | |
| THIS MACHINE OFFERS PROGRAMMABLE CYCLES FOR ROUGH GRINDING, FINE GRINDING & SPARK-OUT | |
| EQUIPPED OVERHEAD WHEEL DRESSER |
