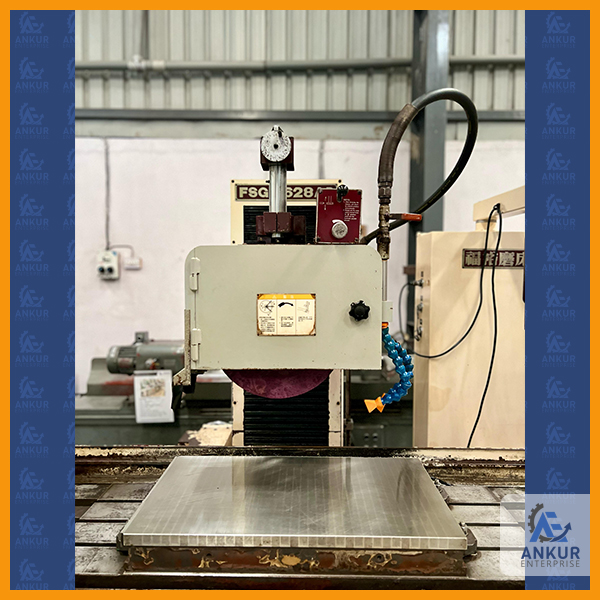

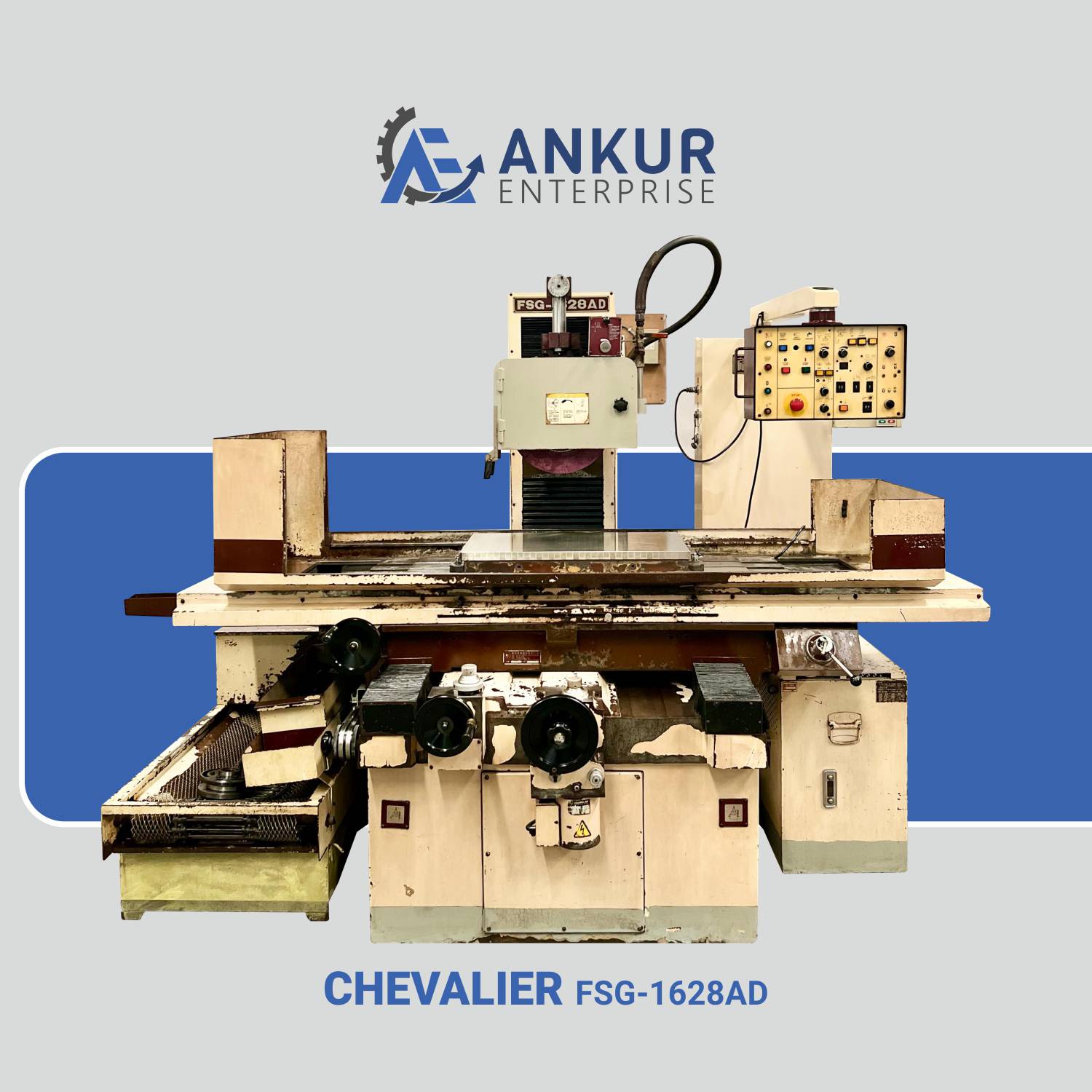

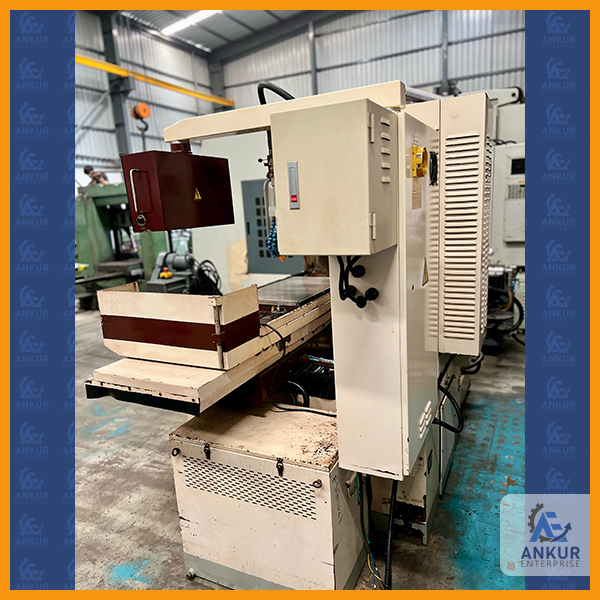

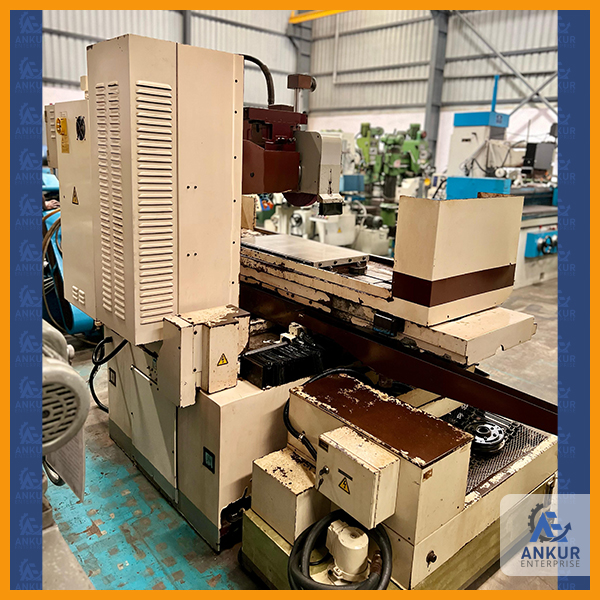

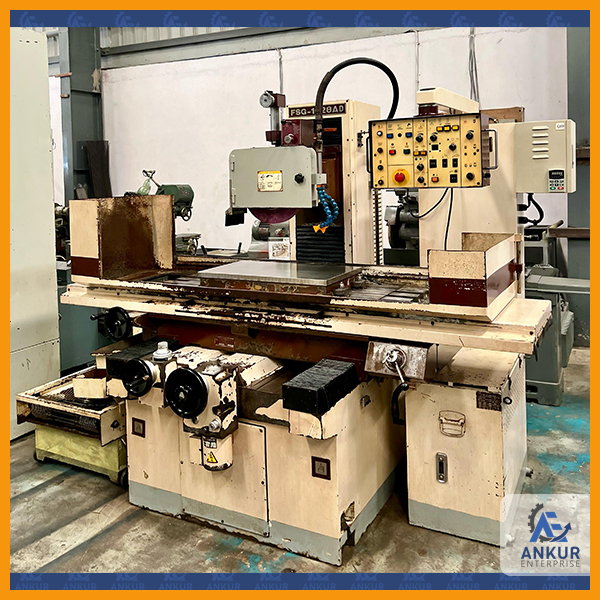

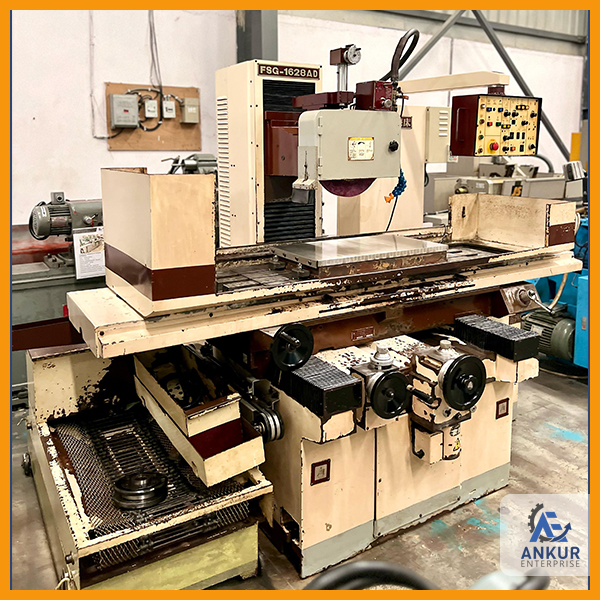

| SURFACE GRINDER MACHINE | |
| MAKE | CHEVALIER (TAIWAN) |
| MODEL | FSG-1628AD |
| MAGNET SIZE | 700X400 MM (ELECTROMAGNET) |
| MAX. WORKING SIZE (MANUAL) | 750X 455 MM |
| MAX. WORKING SIZE (HYDRAULIC) | 795X405 MM |
| SPINDLE SPEED | 3450 RPM |
| DISTANCE FROM SPINDLE CENTER TO TABLE | 615 MM |
| GRINDING WHEEL SIZE | 355X50X127 MM (DXWXB) |
| SPINDLE MOTOR | 5 HP |
| EQUIPPED WITH HYDRAULIC POWER PACK & TANK, COOLANT SYSTEM WITH PAPER FILTRATION UNIT | |

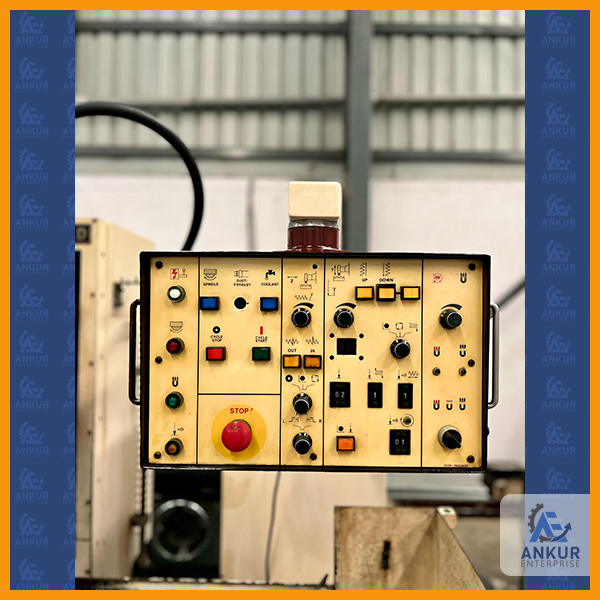

| FEATURES INCLUDE INCREMENTAL DOWNFEED CONTROL (PENDANT MOUNTED) | |
| ELECTROMAGNETIC CHUCK MOUNTED ON TABLE | |
| OVER THE WHEEL DRESSER | |
| PROGRAMABLE AUTO IDF (INFEED DEPTH AND FEEDRATE) AND 3 AXIS AUTO FEED |
