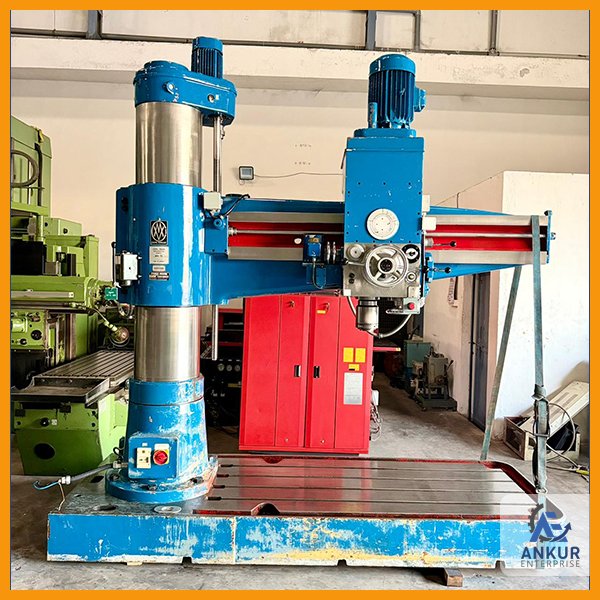

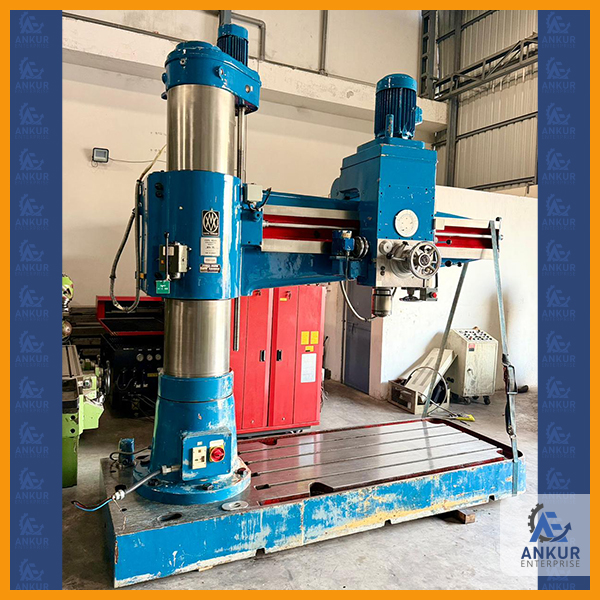

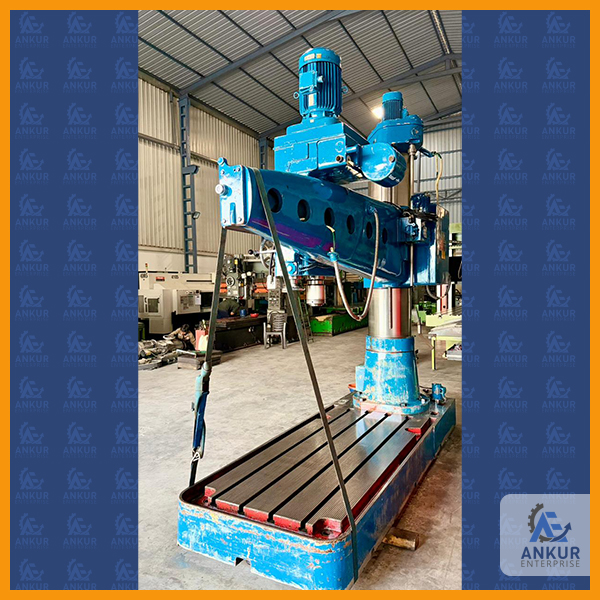

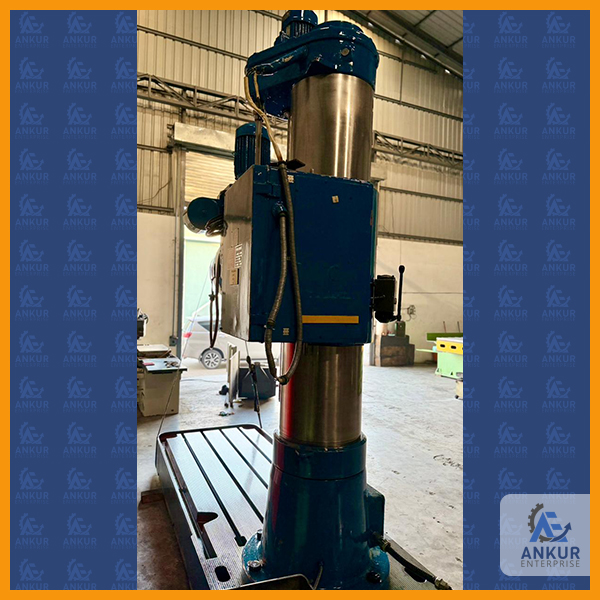

| RADIAL DRILLING MACHINE | |

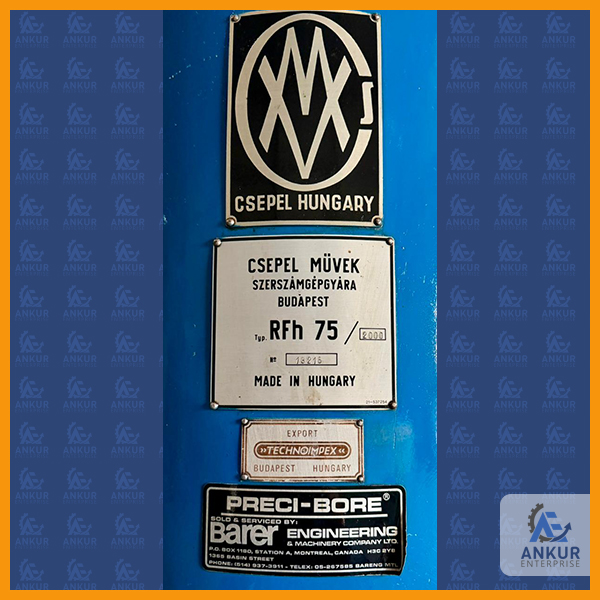

| MAKE | CSEPEL (HUNGARY) |
| MODEL | RFH 75/2000 |
| DRILLING CAPACITY IN STEEL | 75 MM |
| DRILLING CAPACITY IN CAST IRON | 90 MM |
| SPINDLE DIAMETER | 95 MM |
| ARM LENGTH | 2000 MM |
| SPINDLE TAPER | MT 5 |
| SPINDLE FEED TRAVEL | 380 MM |
| SPINDLE SPEEDS | 19 RPM TO 1900 RPM |
| VERTICAL TRAVEL OF ARM | 1020 MM |
| FEED TRAVEL RATES | 0.047 MM/REV TO 2.00 MM/REV |
| MAX. HEIGHT BETWEEN BASE TO SPINDLE | 1750 MM |
| CLAMPING TYPE | HYDRAULIC |
| APPROX WEIGHT | 8 TON |
