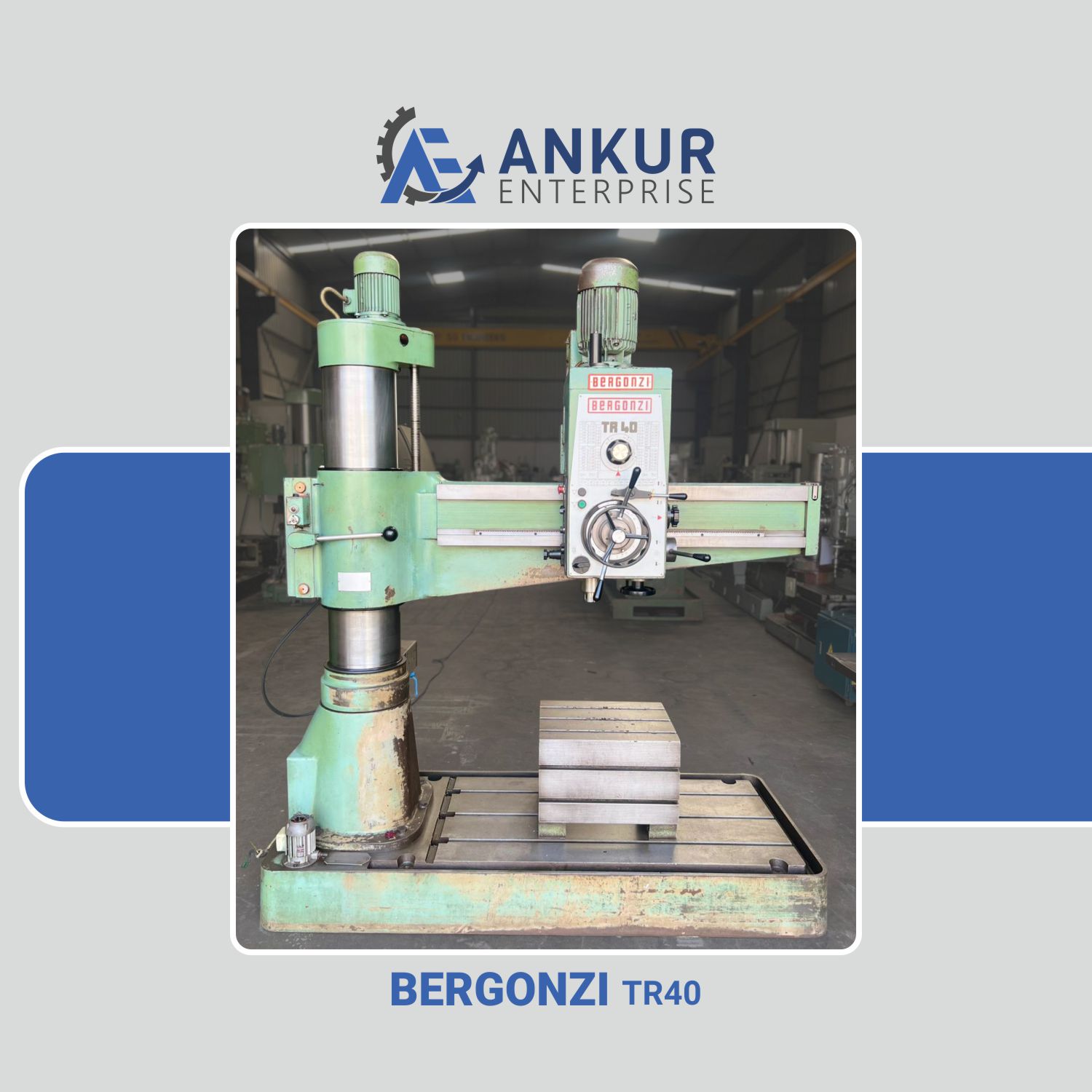

| RADIAL DRILL (WITH BOX TABLE) | |
| MAKE | BERGONZI (ITALY) |
| MODEL | TR 40 |
| DRILLING CAPACITY | 50 MM |
| SPINDLE DIAMETER | 75 MM |
| ARM LENGTH | 1100 MM |
| SPINDLE TAPER | MT 4 |
| SPINDLE SPEEDS | 40 RPM TO 1400 RPM |
| SPINDLE FEED TRAVEL | 230 MM |
| SPINDLE FEED TRAVEL RATE | 0.08 MM/REV TO 0.40 MM/REV |
| VERTICAL TRAVEL OF ARM | 480 MM |
| CLAMPING TYPE | HYDRAULIC |
