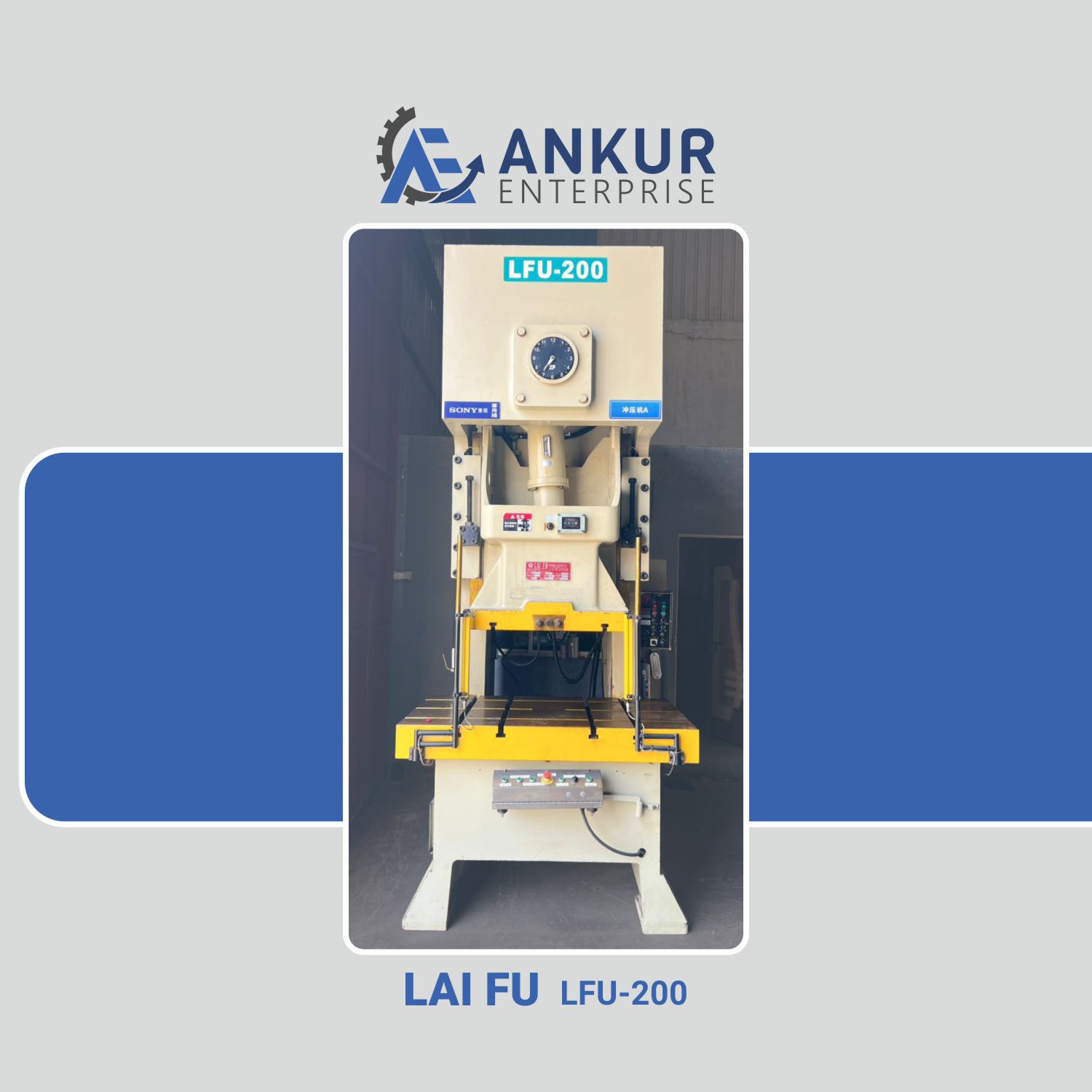

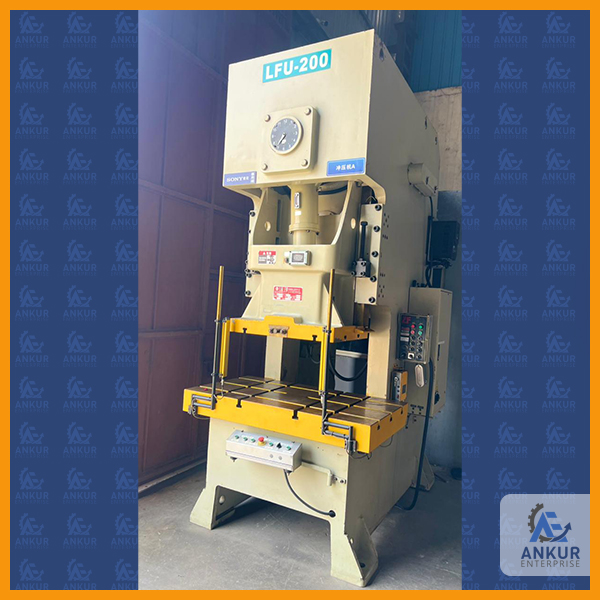

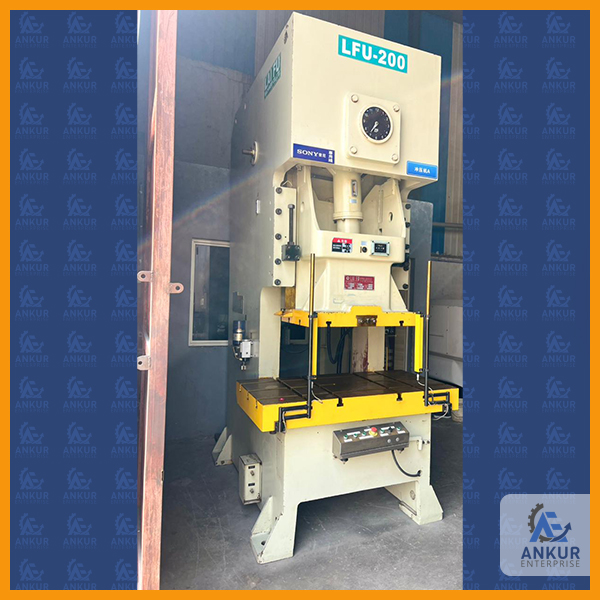

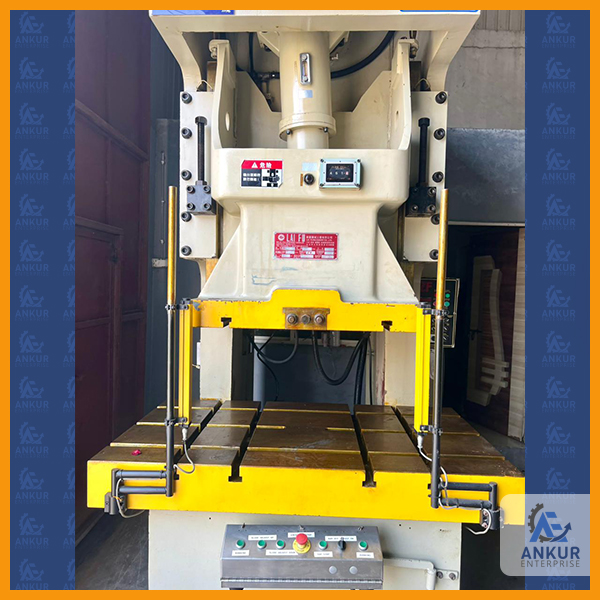

| HIGH PRECISION C-FRAME SINGLE CRANK PRESS | |

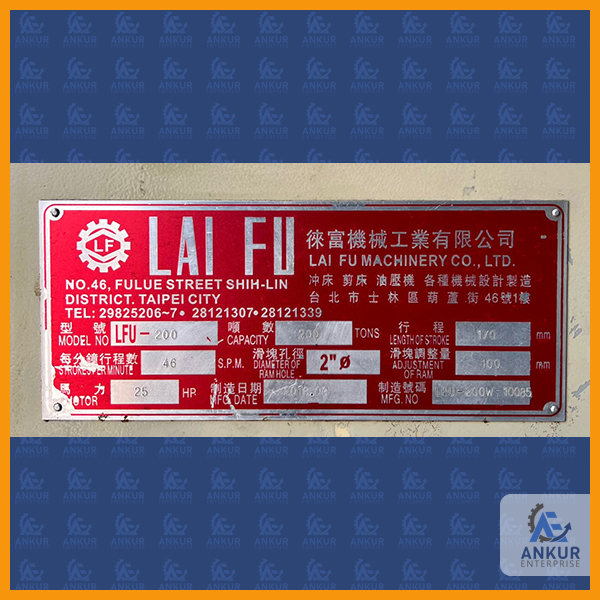

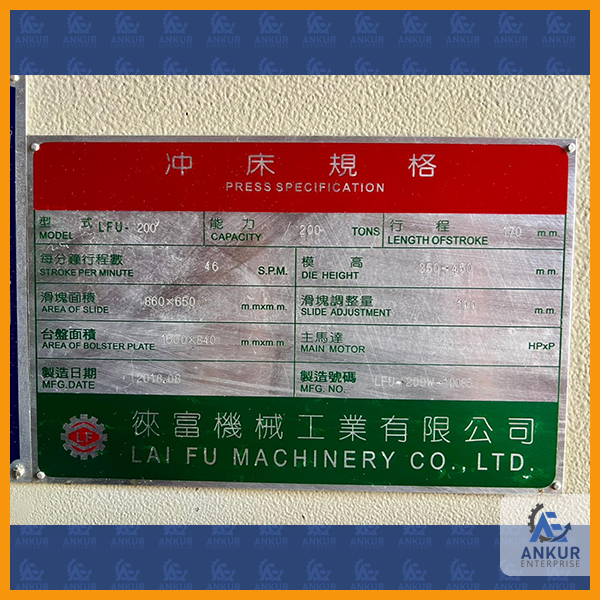

| MAKE | LAI FU (TAIWAN) |
| MODEL | LFU-200 |
| YEAR | 2018 |
| CAPACITY | 200 TON |
| LENGTH OF STROKE | 170 MM |
| STROKE PER MINUTE | 46 SPM |
| DIE HEIGHT | 350-450 MM |
| SLIDE ADJUSTMENT | 100 MM |
| DIA. OF RAM HOLE | 50.8 MM |
| AREA OF SLIDE | 860X650 MM |
| AREA OF BOLSTER PLATE | 1500X840 MM |
| MAIN MOTOR | 25 HP |
