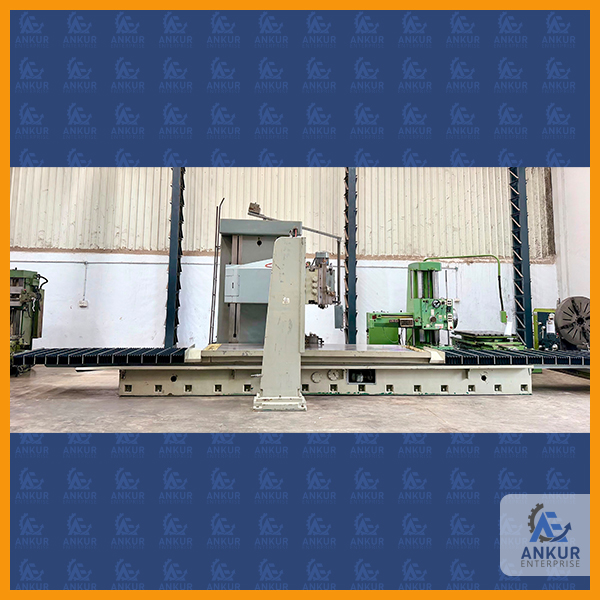

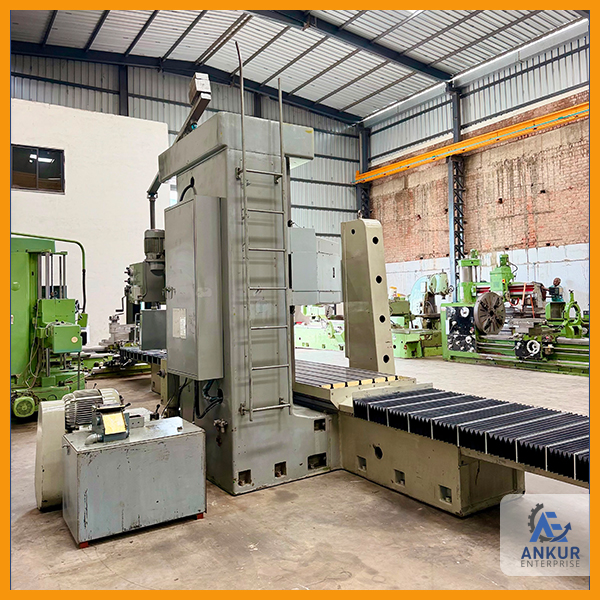

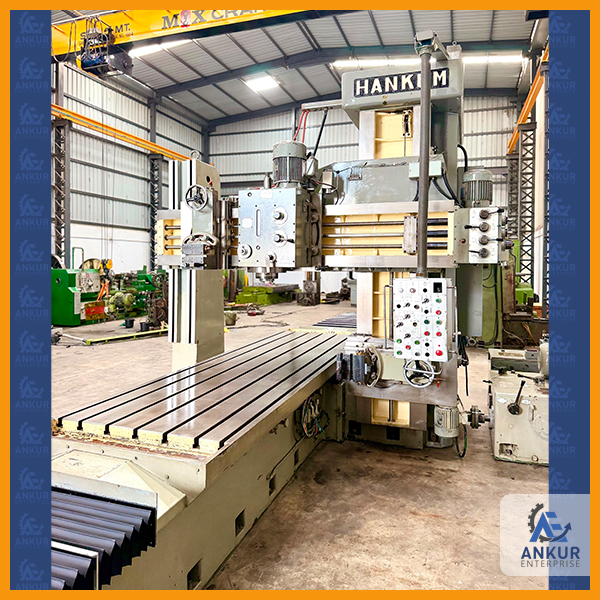

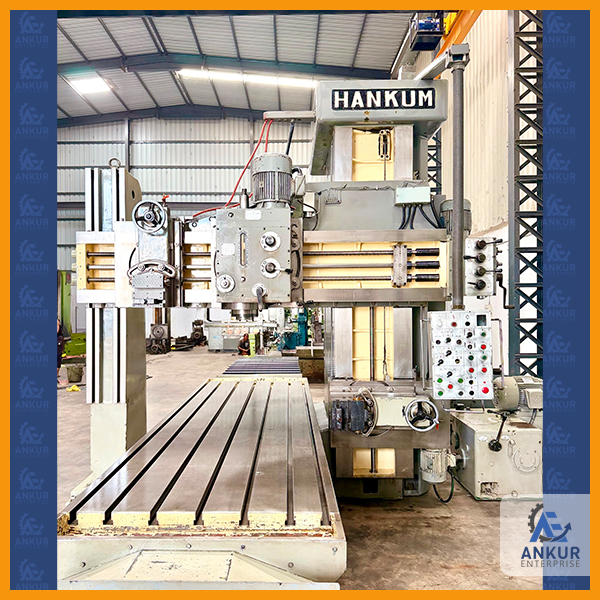

| PLANO MILLER MACHINE | |

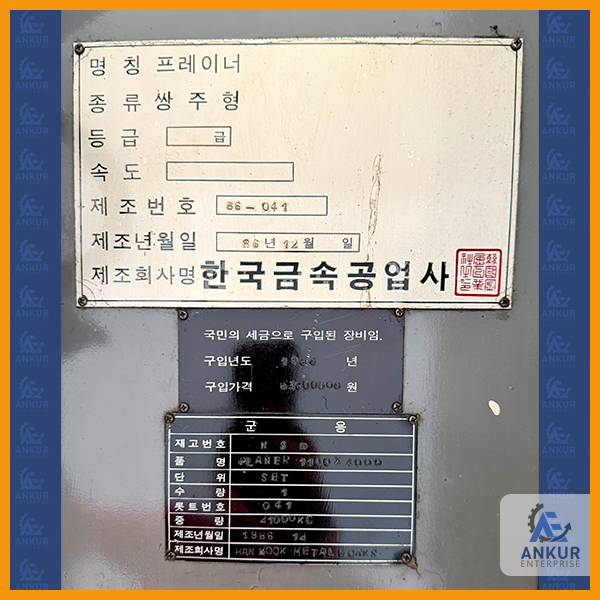

| MAKE | HANKUM (KOREA) |

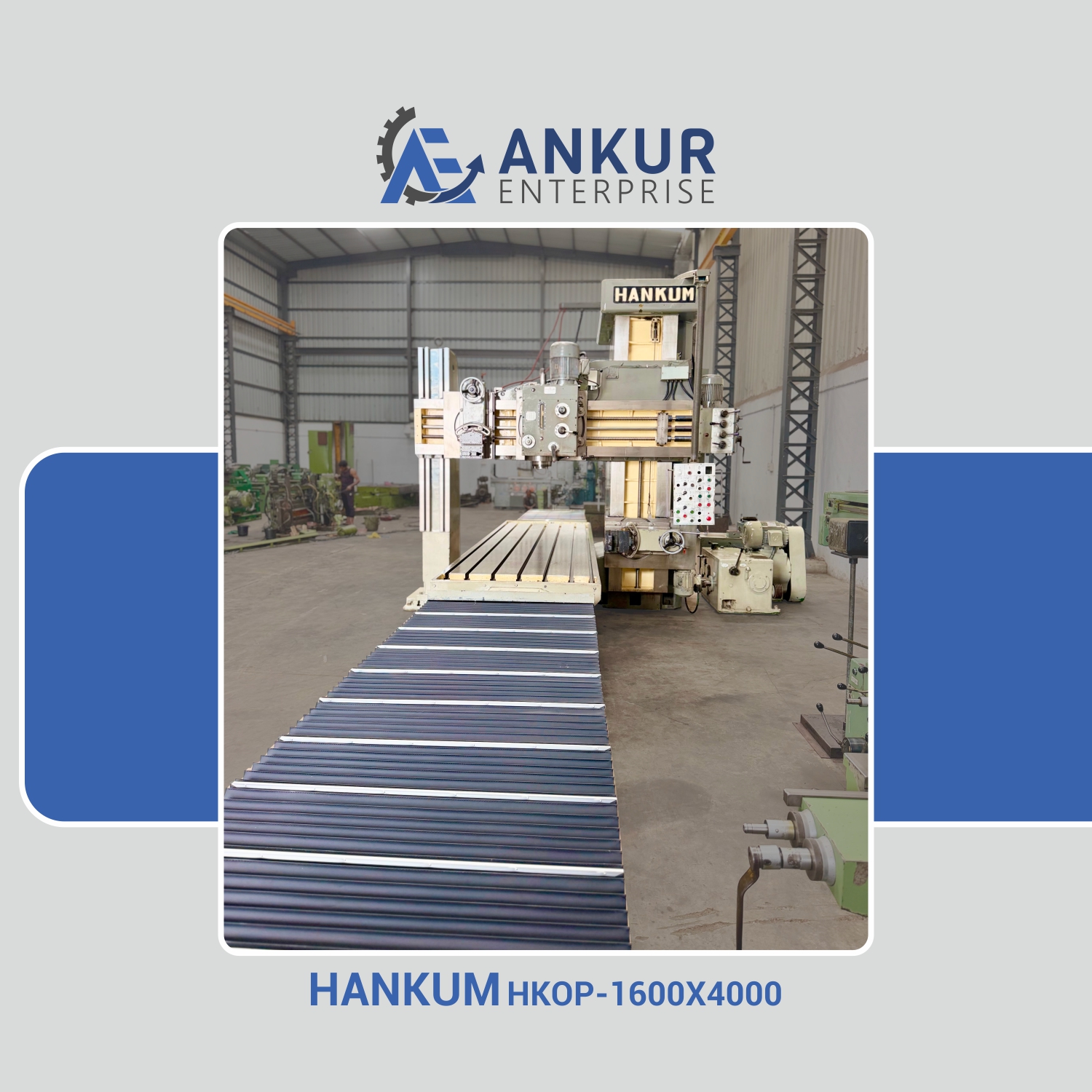

| MODEL | HKOP-1600X4000 |
| TABLE SIZE | 4000X1100 MM |
| WORKING SIZE | 4400X |
| GAP | 1600 MM |
| HEIGHT | 1000 MM |
| SPINDLE TAPER | ISO 50 |
| SPINDLE SPEED FOR VERTICAL HEAD | 70-600 RPM |

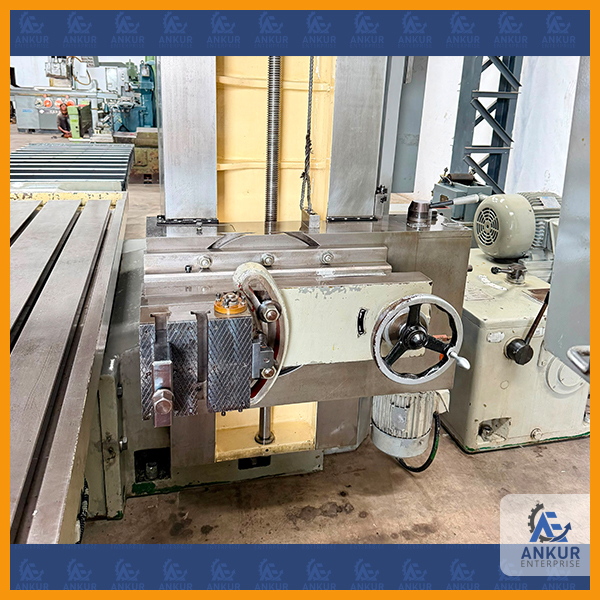

| SIDE PLANNING HEAD INWARD & OUTWARD MOVEMENT | 160 MM |
| APPROX. WEIGHT | 21 TON |
| OVERALL POWER CONSUMPTION | 32 KW |

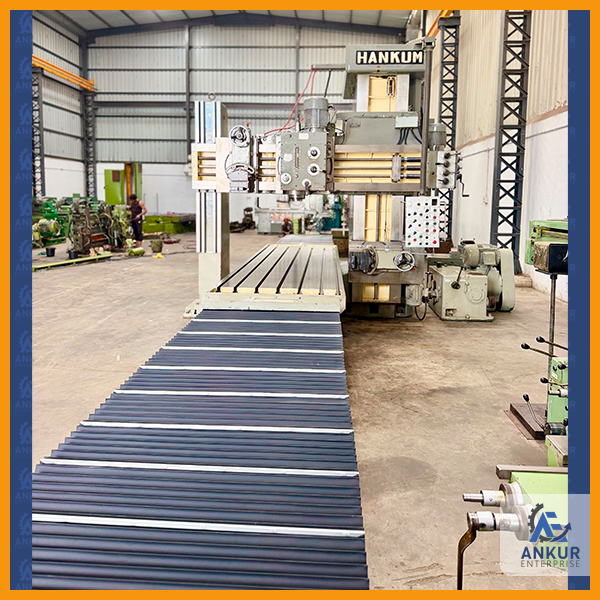

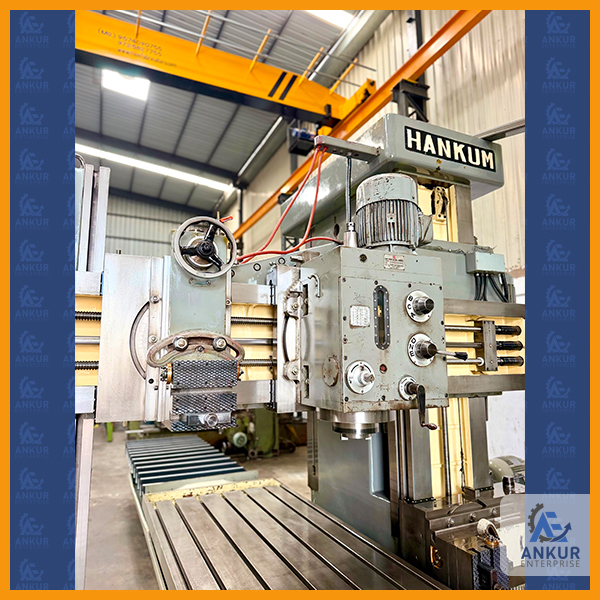

| EQUIPPED WITH TWO PLANNING HEAD & 1 MILLING HEAD | |

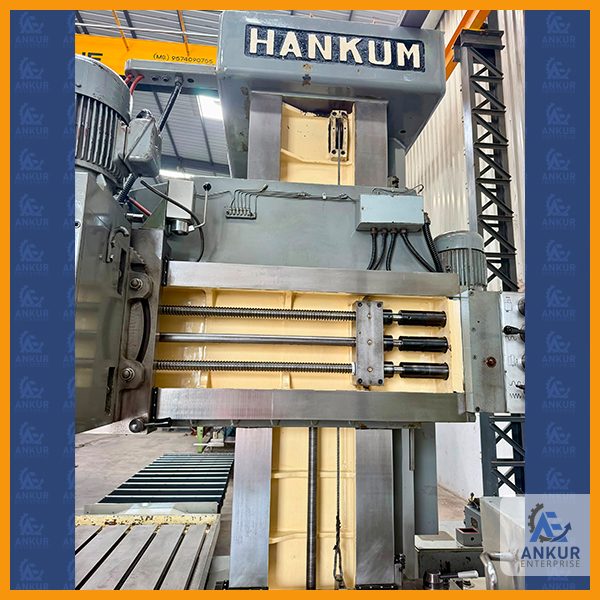

| X AXIS MOVEMENT IS ON RACK & PIN ON & Y AXIS IS EQUIPPED WITH BALL SCREW | |

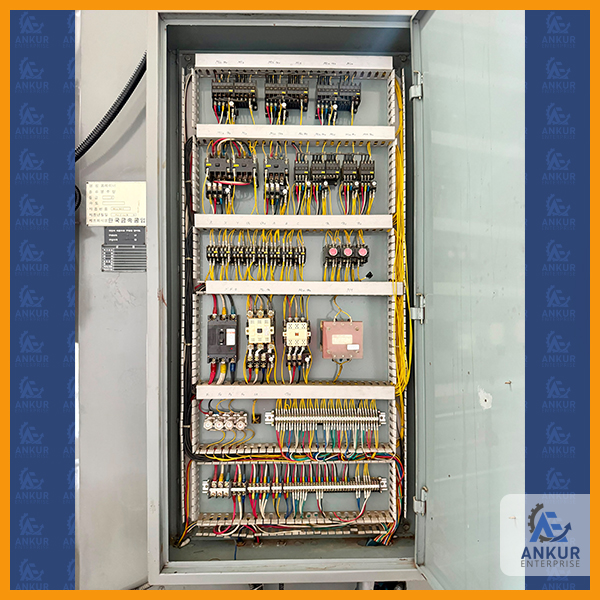

| COMPLETE WITH ELECTRICAL MANUAL | |

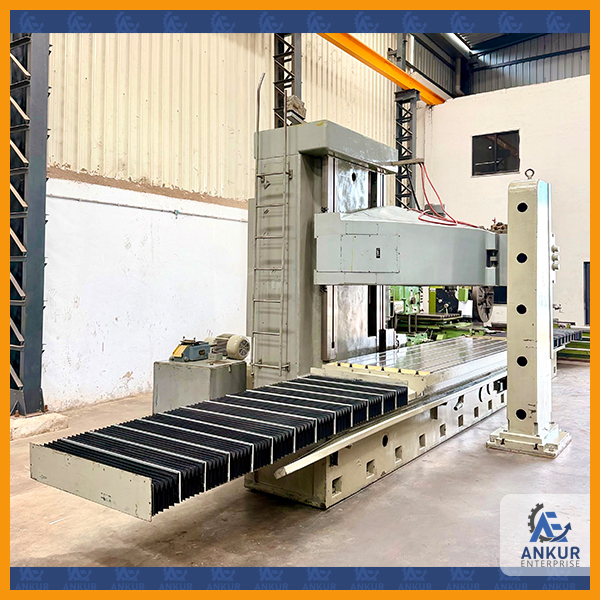

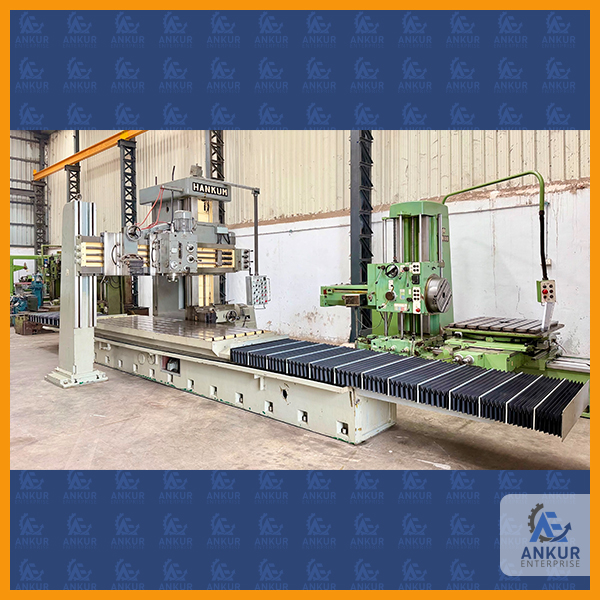

| EQUIPPED WITH BELLOW COVERS |
