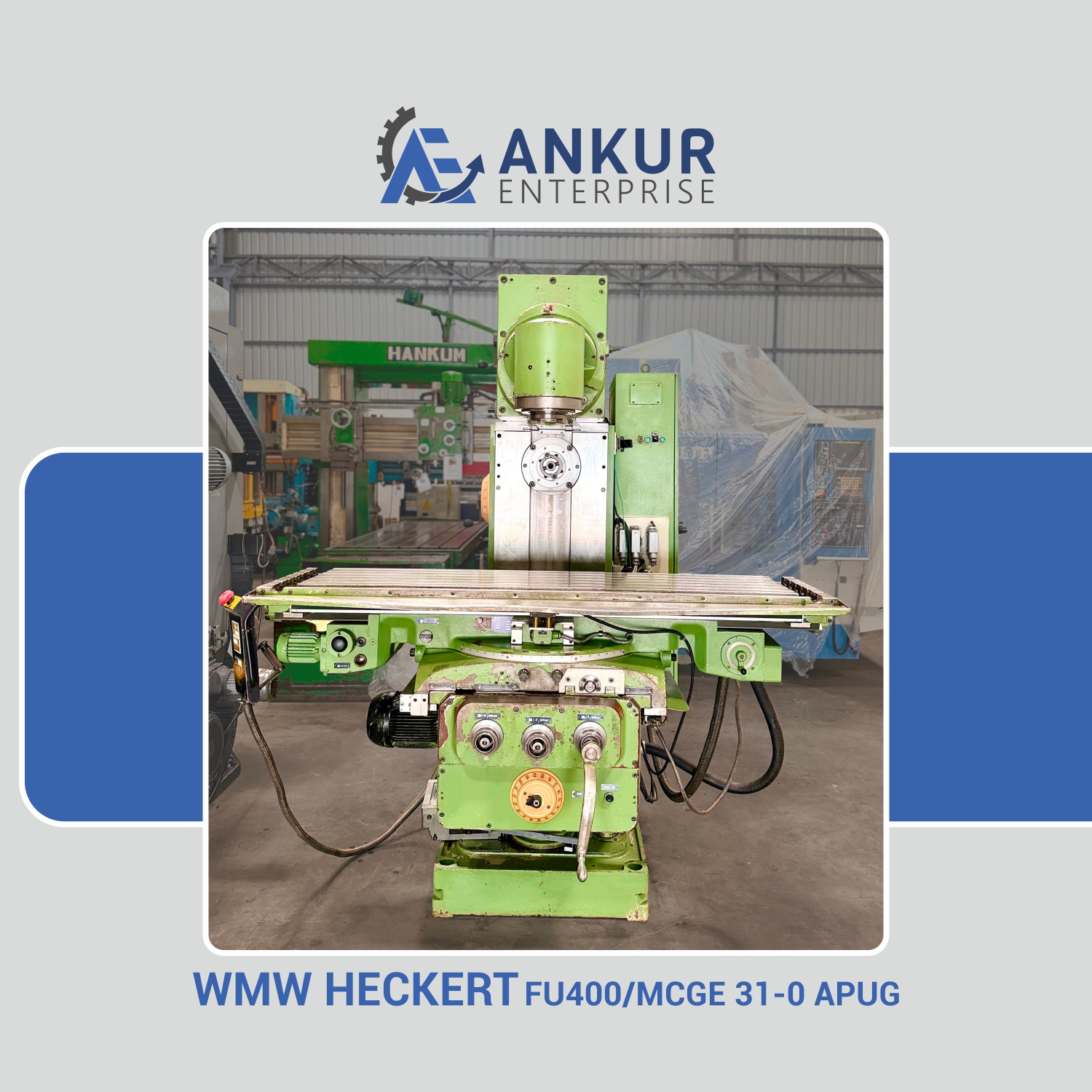

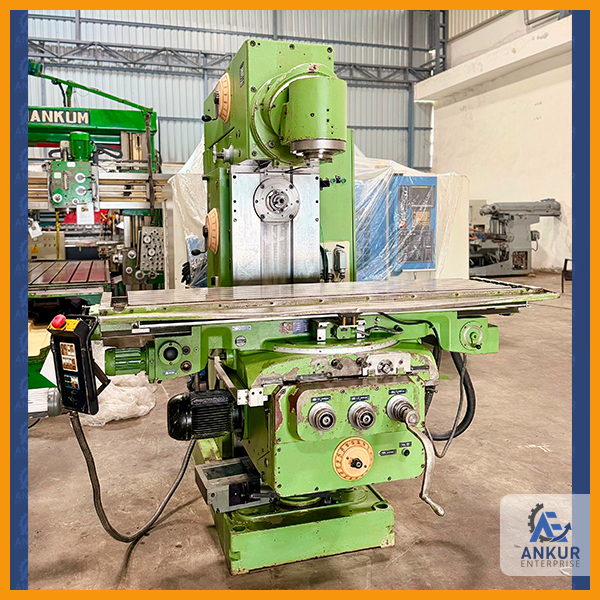

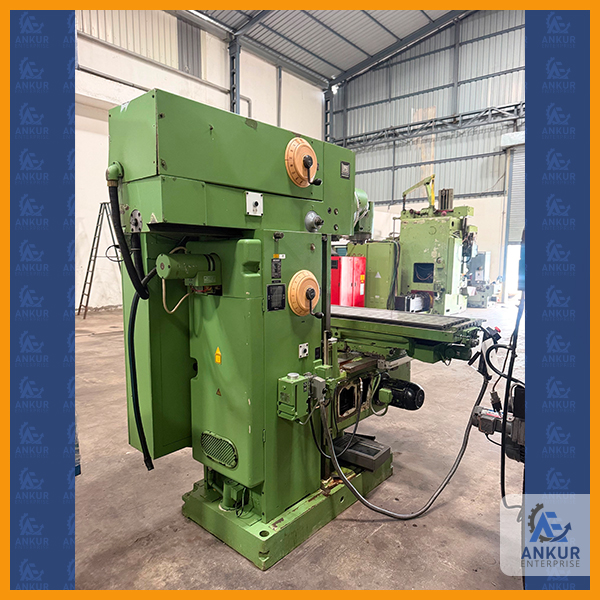

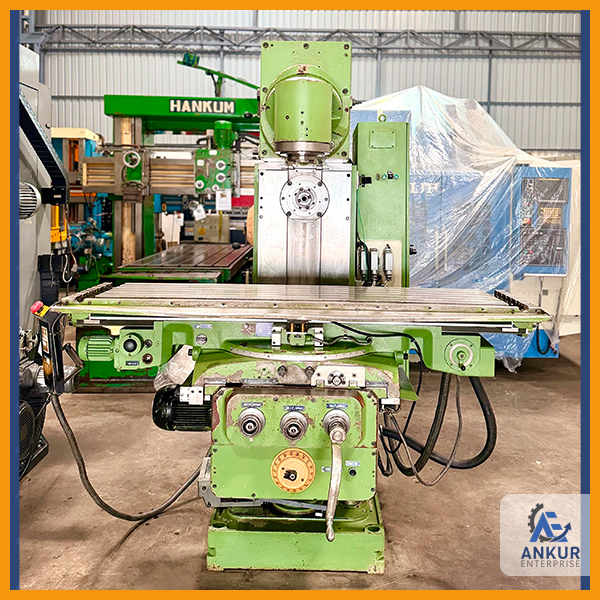

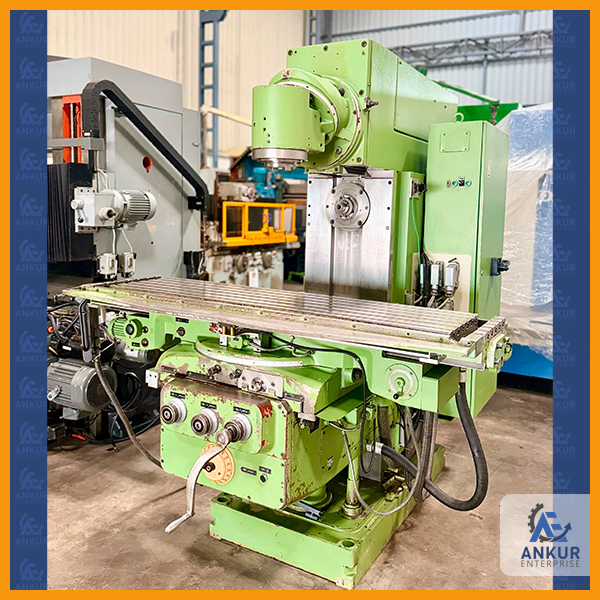

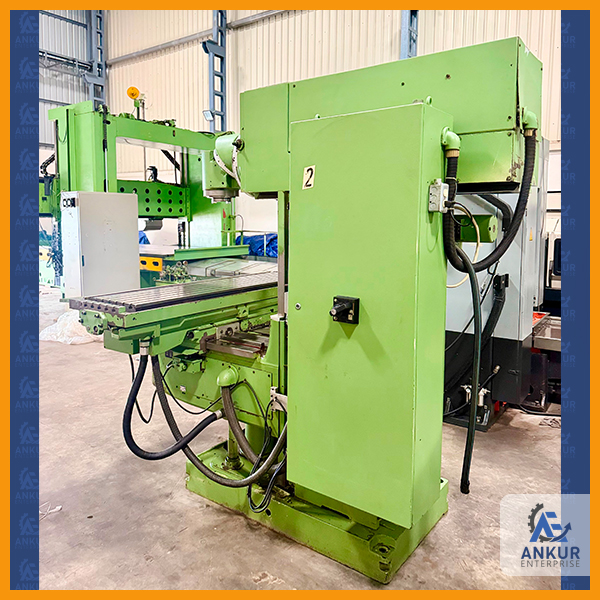

| DUAL SPINDLE UNIVERSAL MILLING MACHINE | |
| MAKE | WMW HECKERT (GERMANY) |
| MODEL | FU400/MCGE 31-0 APUG |

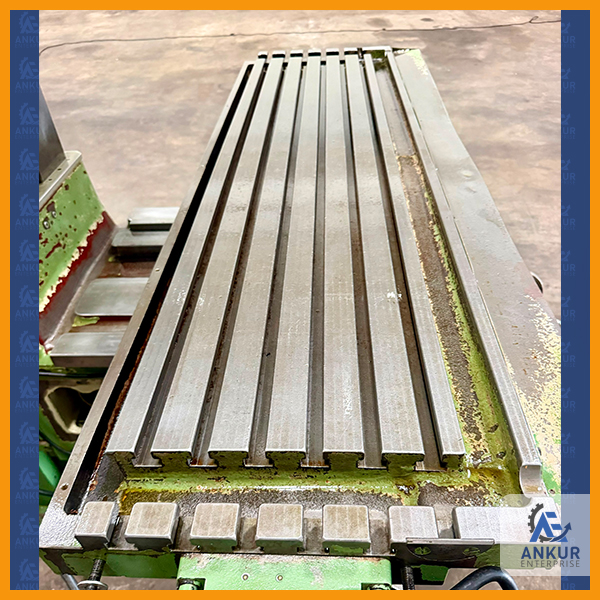

| TABLE SIZE | 1800X500 MM |
| XYZ TRAVEL | 1320X350X400 MM |
| MAX. SPINDLE TO TABLE DISTANCE | 650 MM |
| MAX. LOAD ON TABLE | 1.5 TON |
| TABLE SWIVEL | +-45 DEGREE |
| SPINDLE SPEED FOR VERTICAL HEAD | 45-2240 RPM |
| SPINDLE SPEED FOR HORIZONTAL HEAD | 28-1400 RPM |
| MAX. SPINDLE TORQUE | 1850 NM |
| FEED RANGE | 16-800 MM/MIN |
| X/Y RAPID TRAVERSE | 3150 MM/MIN |
| Z RAPID TRAVERSE | 1000 MM/MIN |
| SPINDLE TAPER | ISO 50 |
| APPROX. WEIGHT | 4.2 TON |
| MAIN MOTOR SPINDLE POWER | 11 KW |
| OVERALL POWER CONSUMPTION | 29.6 KW |

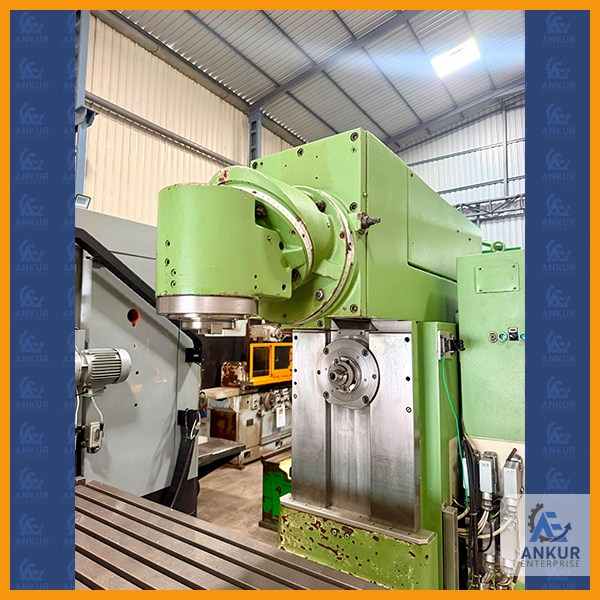

| EQUIPPED WITH DOUBLE SWIVELLING HEAD & DRO. |
