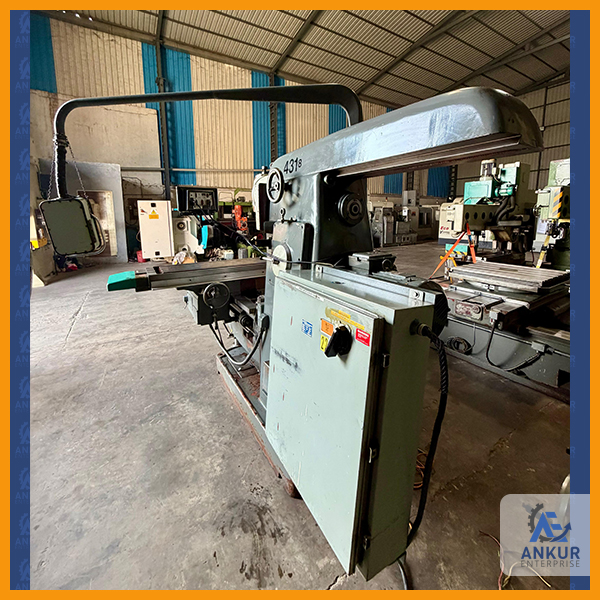

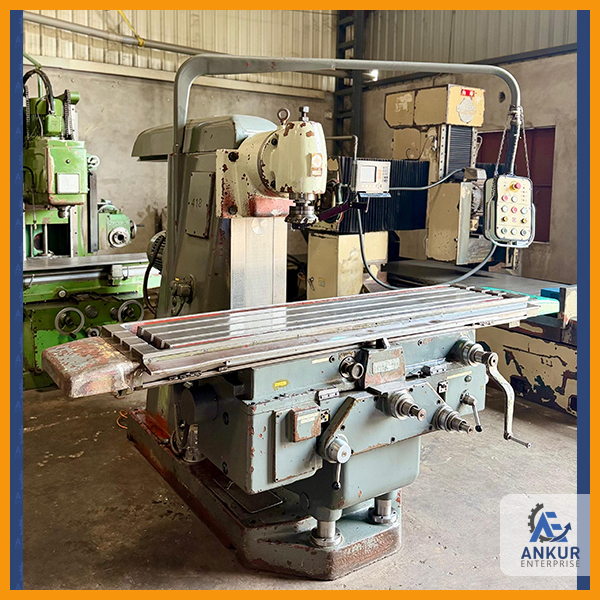

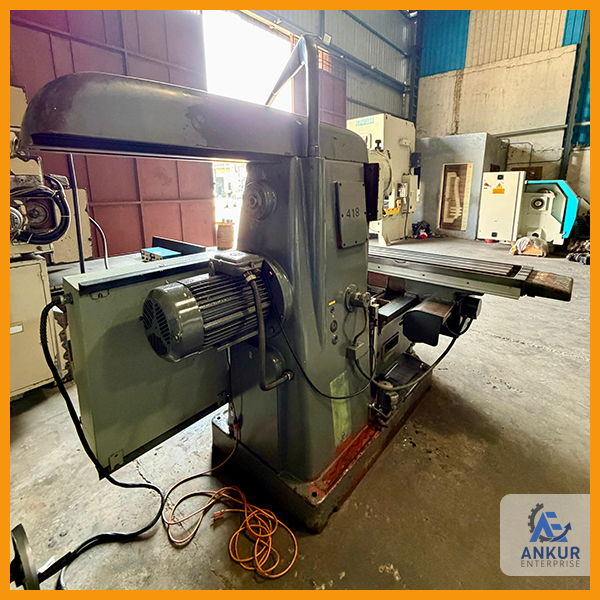

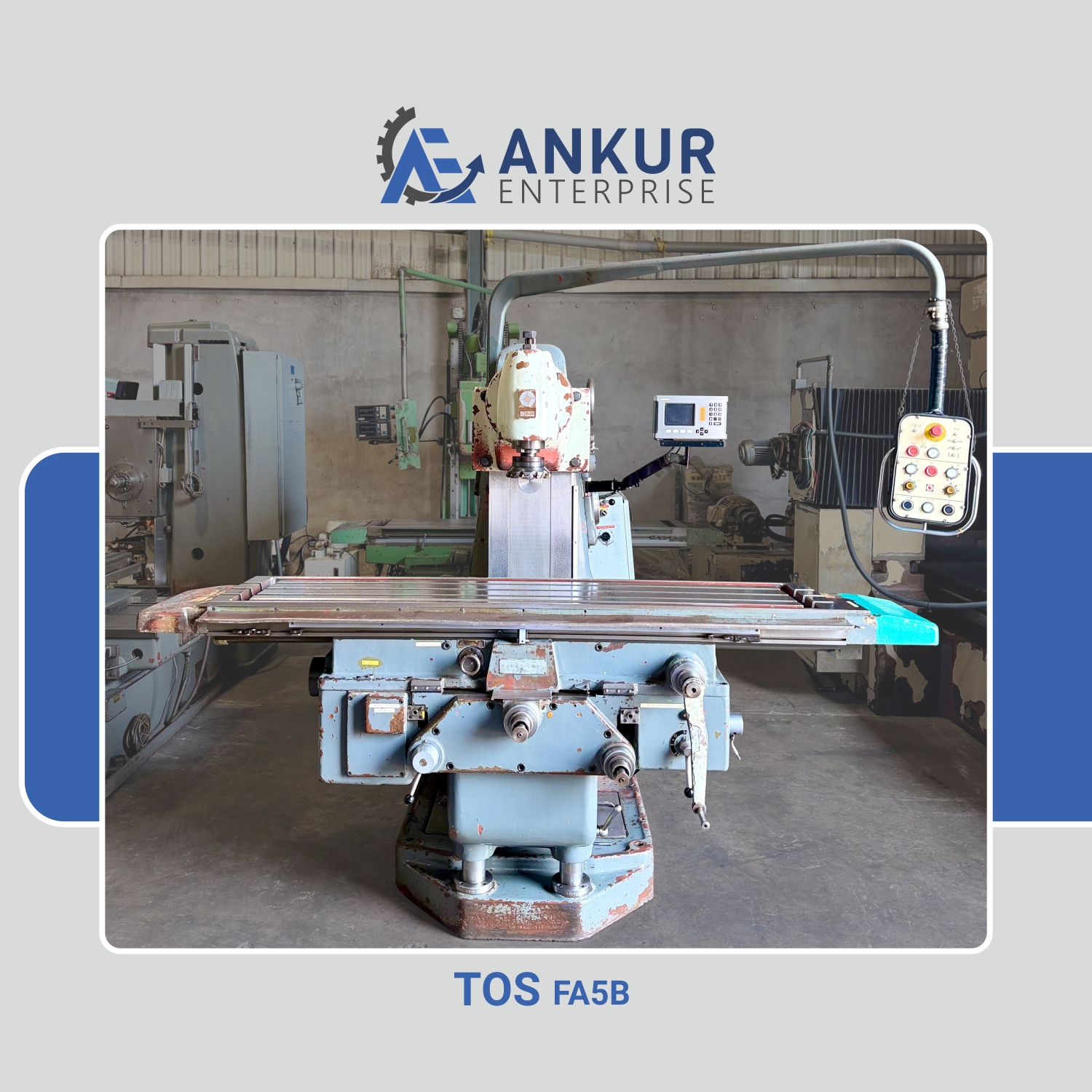

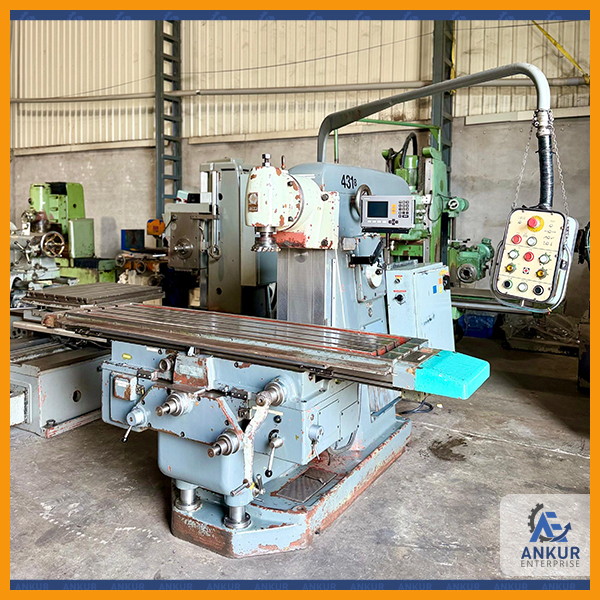

| HORIZONTAL/VERTICAL MILLING MACHINE | |

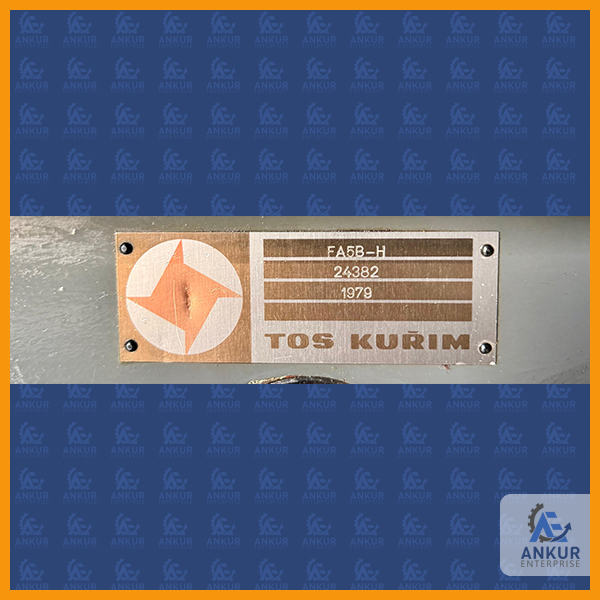

| MAKE | TOS KURIM (CZECH REPUBLIC) |
| MODEL | FA5B-H |

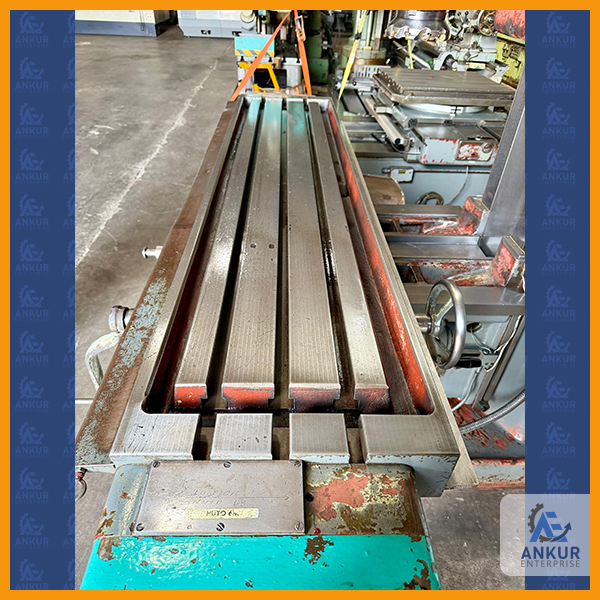

| TABLE SIZE | 2000X450 MM |
| XYZ TRAVEL | 1400X450X450 MM |
| SPINDLE TAPER | ISO 50 |
| DISTANCE BETWEEN SPINDLE AXIS TO SURFACE OF TABLE | 115-575 MM (MIN-MAX) |
| SPINDLE SPEED | 18-1400 RPM |
| LONGITUDINAL & CROSS FEED RATE | 10-1250 MM/MIN |
| VERTICAL FEED RATE | 2.5-315 MM/MIN |
| RAPID FEEDS LONGITUDINAL & CROSS | 3200 MM/MIN |
| RAPID FEED VERTICA | 800 MM/MIN |
| APPROX. WEIGHT | 5.5 TON |

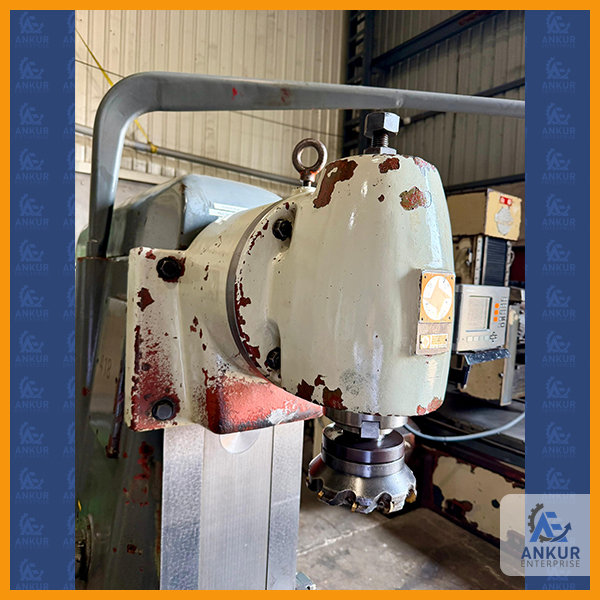

| EQUIPPED WITH VERTICAL MILLING HEAD & DRO. | |

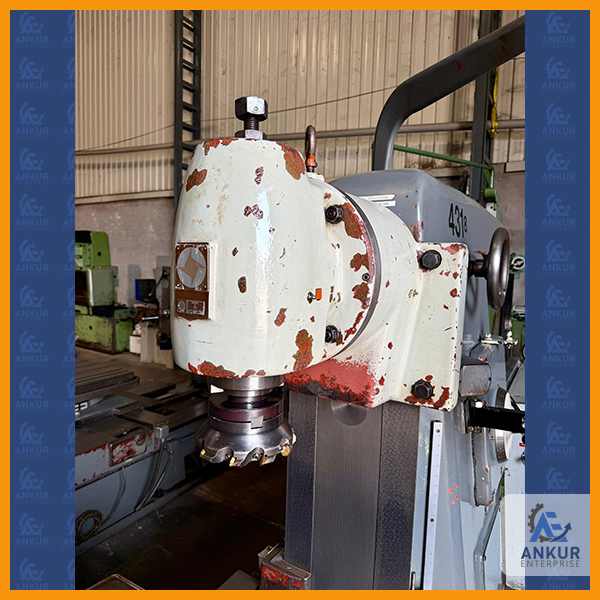

| FACING CUTTER IS MOUNTED ON THE SPINDLE. |
