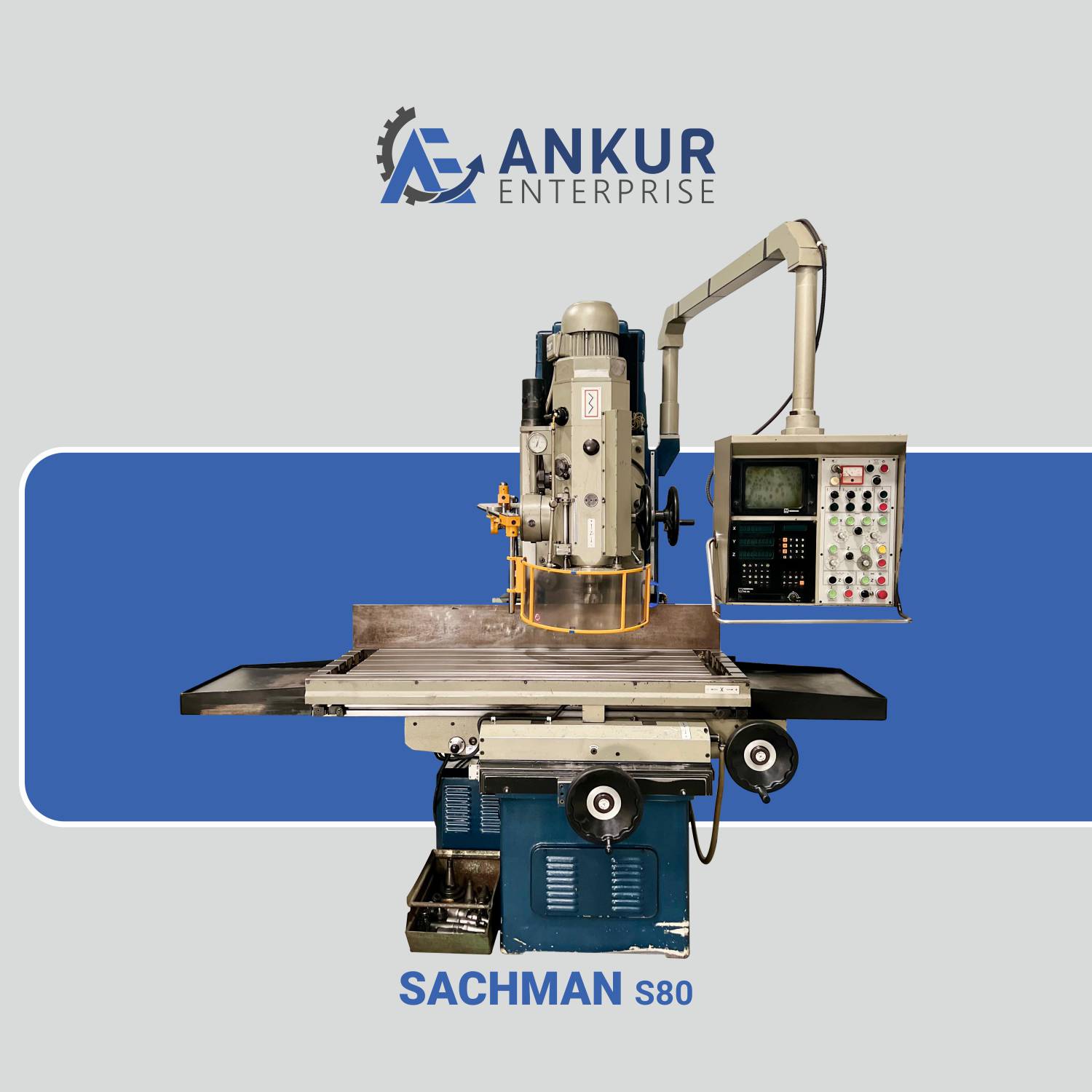

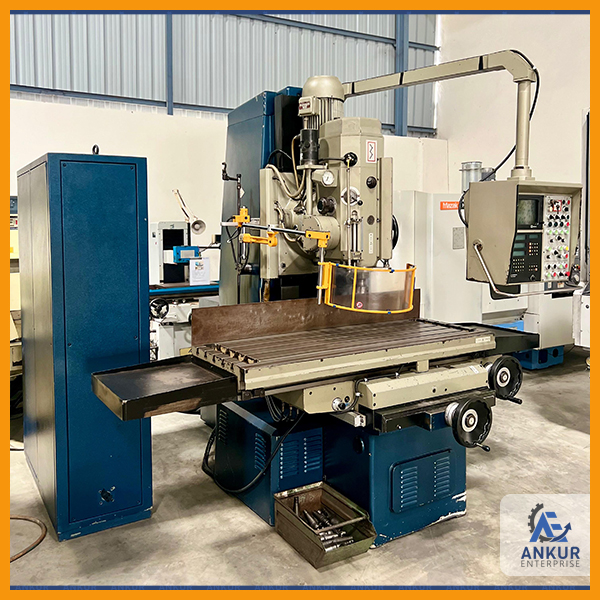

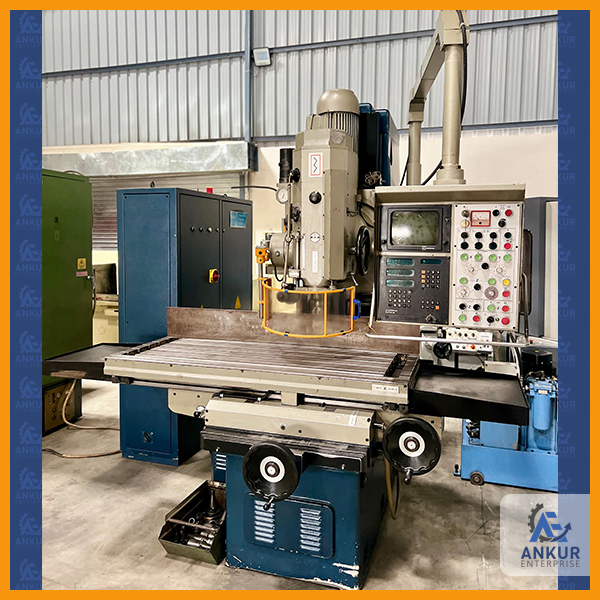

| VERTICAL MILLING AND BORING MACHINE | |
| MAKE | SACHMAN (ITALY) |
| MODEL | S80 |
| TABLE SIZE | 1600X560 MM |
| X, Y & Z TRAVEL | 1200, 560 & 725 MM |
| SPINDLE SPEED | 40 – 2000 RPM |
| SPINDLE VERTICAL TRAVEL | 160 MM |
| MAX. DISTANCE BETWEEN TABLE TOP & SPINDLE | 725 MM |
| TABLE FEED RATE OF TRAVEL | 12 MM/MIN TO 610 MM/MIN |
| SPINDLE FEED RATE OF TRAVEL | 0.05 MM/REV TO 0.20 MM/REV |
| APPROX. WEIGHT | 5.5 TON |
