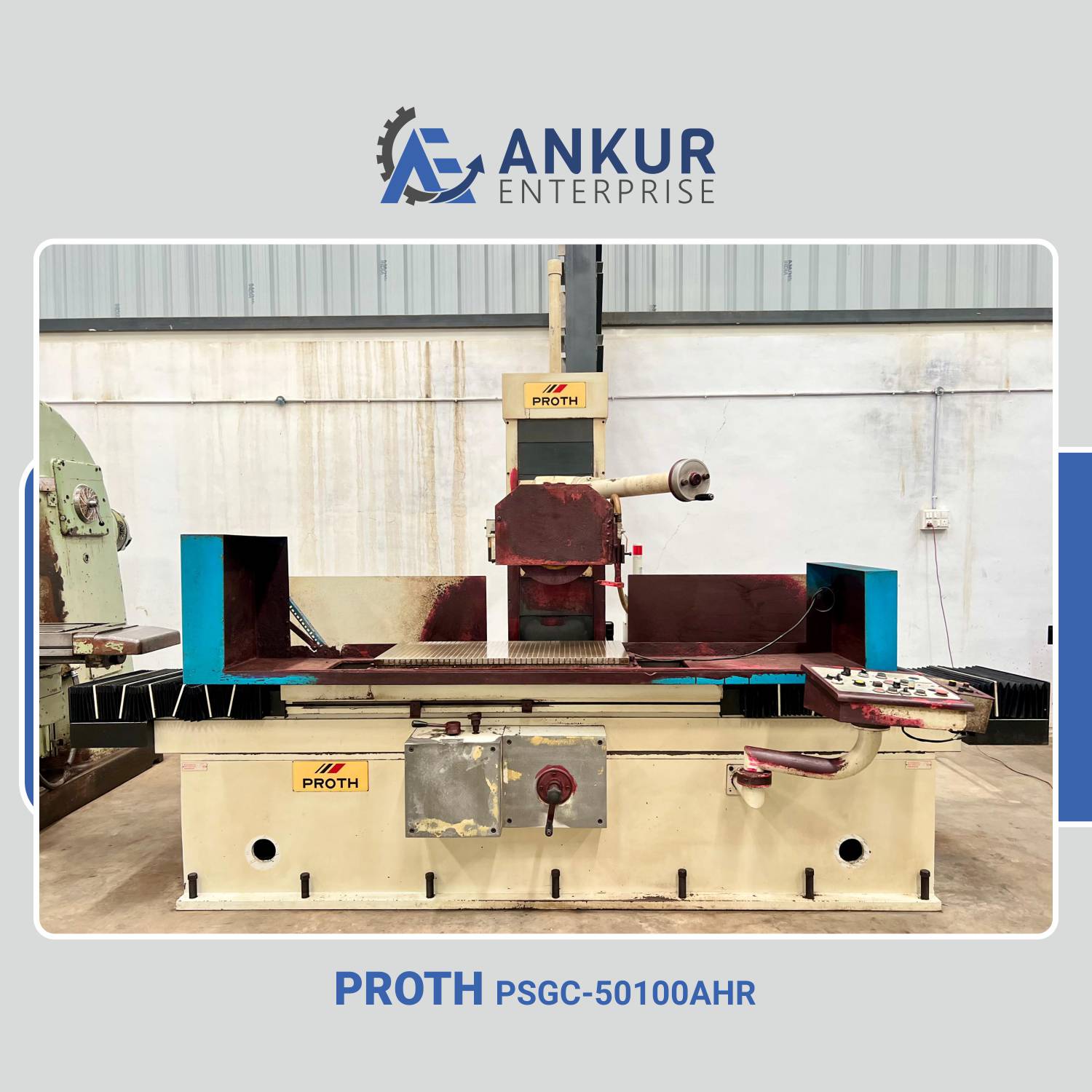

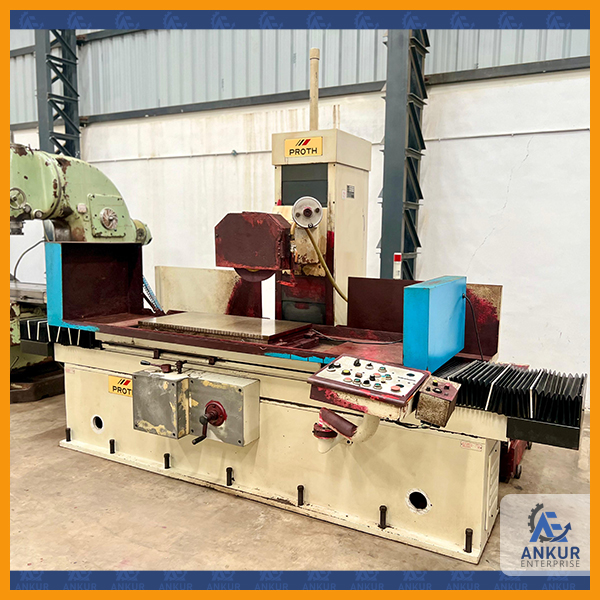

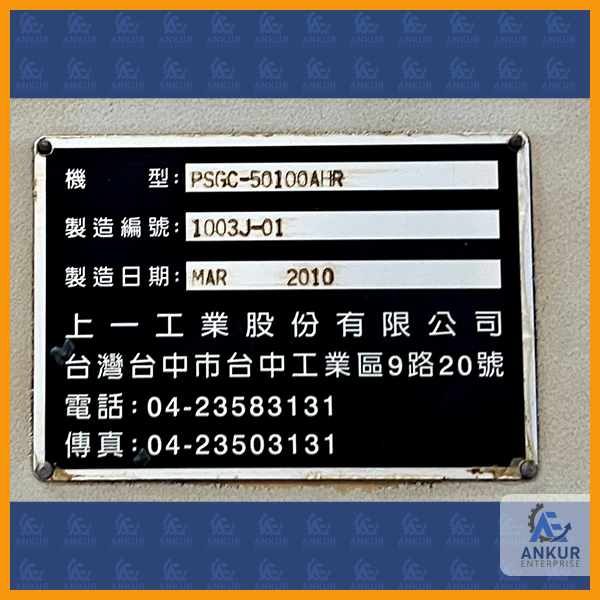

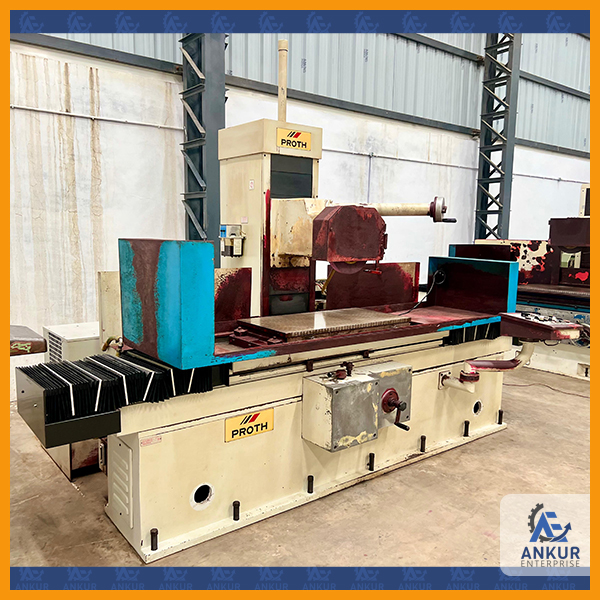

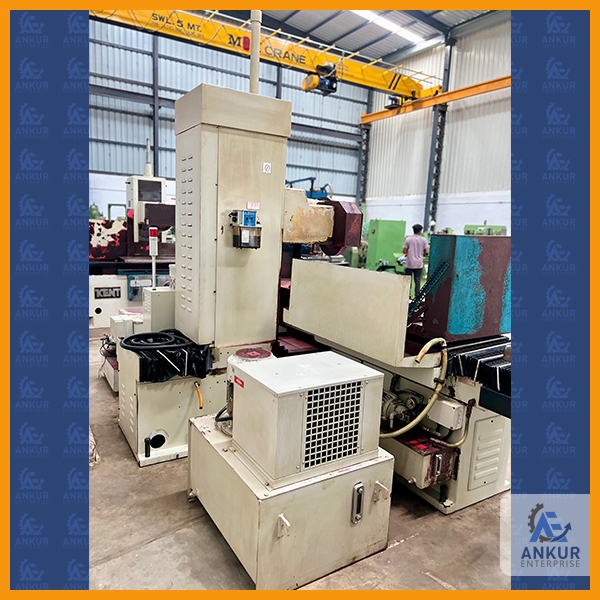

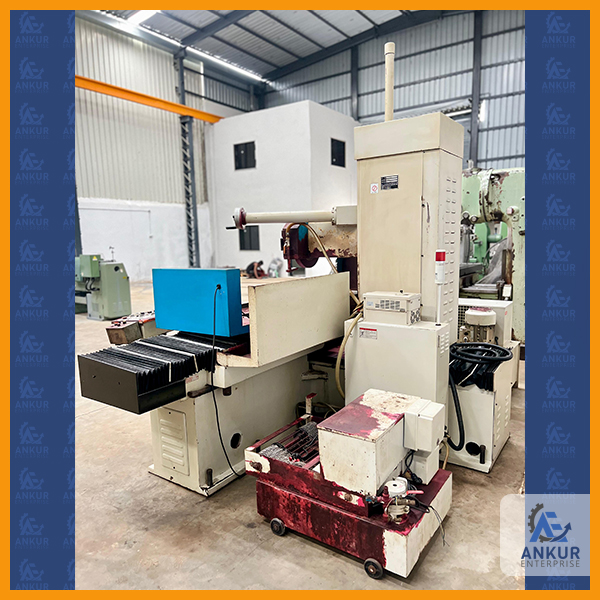

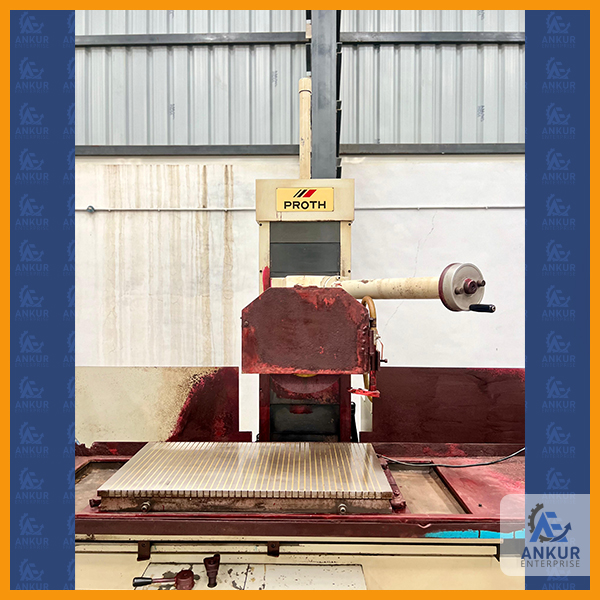

| MAKE | PROTH (TAIWAN) |
| MODEL | PSGC-50100AHR |
| YEAR | 2010 |
| MAGNET SIZE | 1000X500 MM (ELECTROMAGNET) |
| MAX. TRAVEL | 1150X560 MM |
| SPINDLE CENTER HEIGHT FROM TABLE | 700 MM |
| MAX HEIGHT FROM TABLE TOP TO BOTTOM OF STANDARD WHEEL | 522 MM |
| SPINDLE SPEED | 1800 RPM |
| MAX. WORKPIECE WEIGHT | 1335 KG |
| GRINDING WHEEL DIMENSIONS | 355X50X127 MM |
| APPROX. WEIGHT | 7 TON |
| COMPLETE WITH HYDRAULIC POWER PACK & MAGNETIC SEPARATOR UNIT, COOLANT PUMP & TANK | |
| EQUIPPED WITH SAFETY COVERS | |
| COLUMN MOVEMENT TYPE MACHINE |
