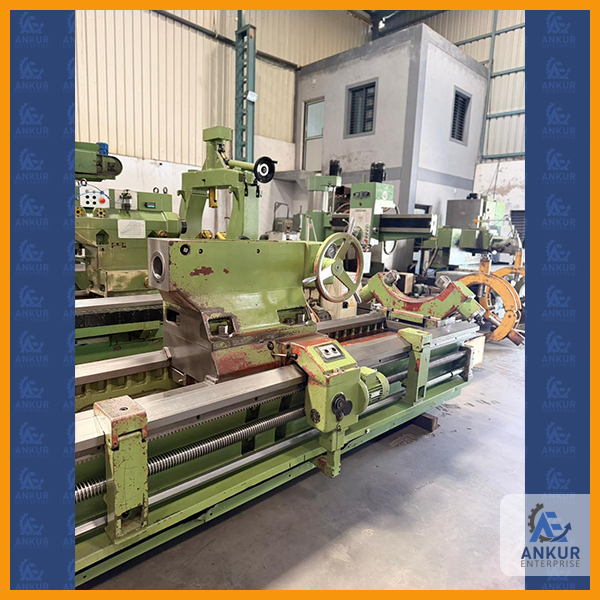

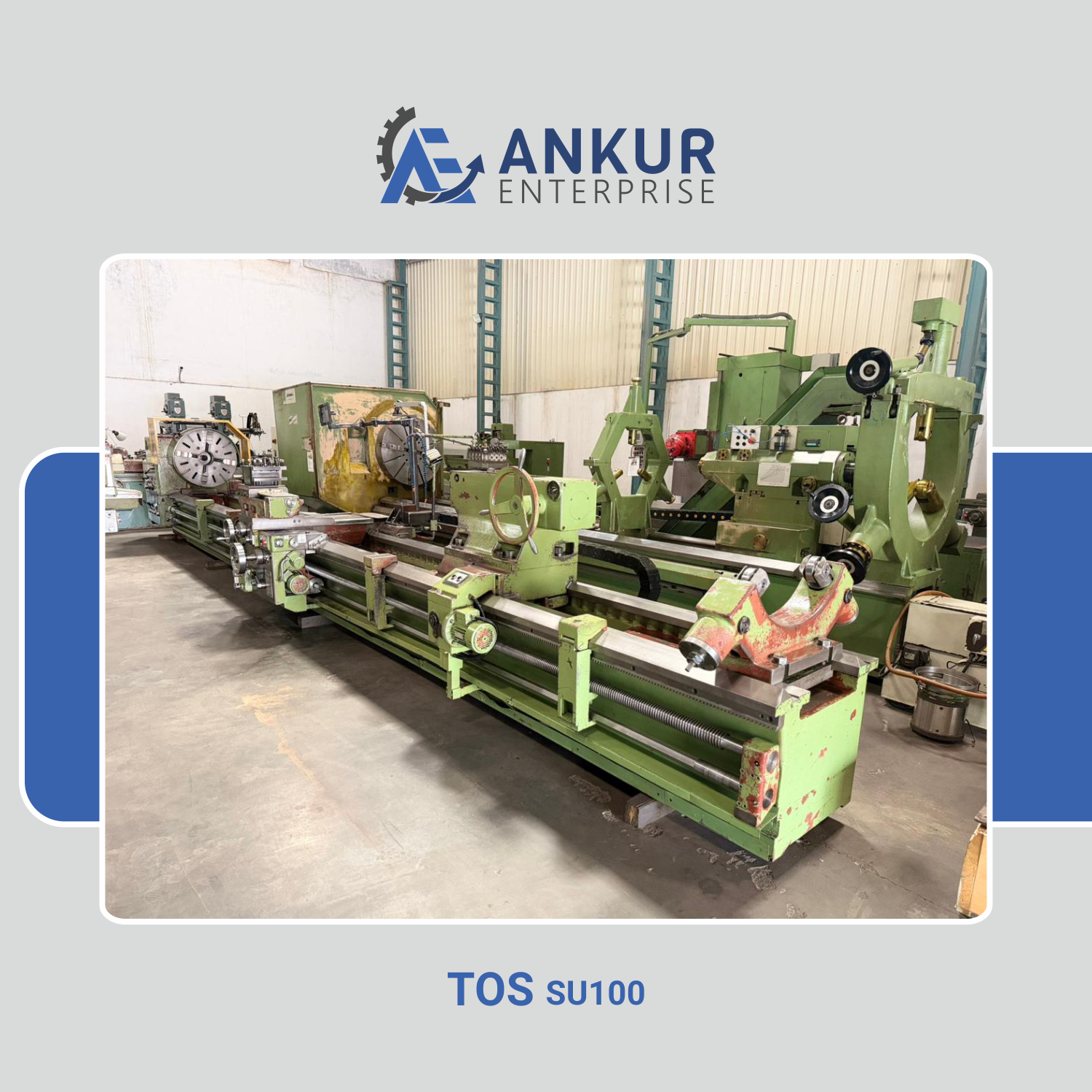

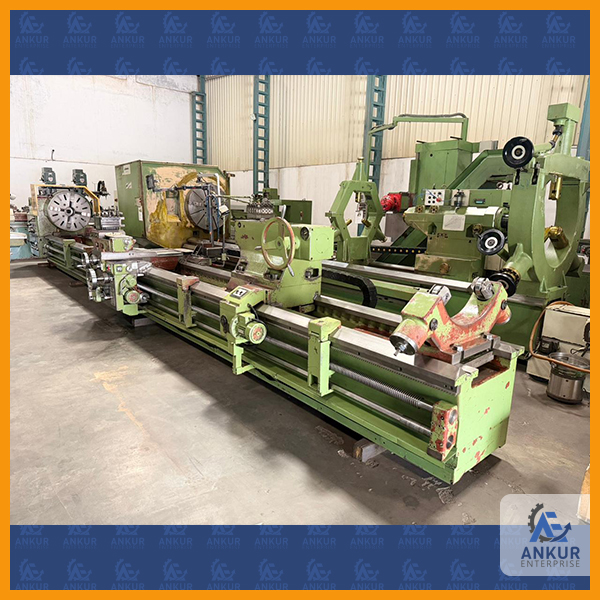

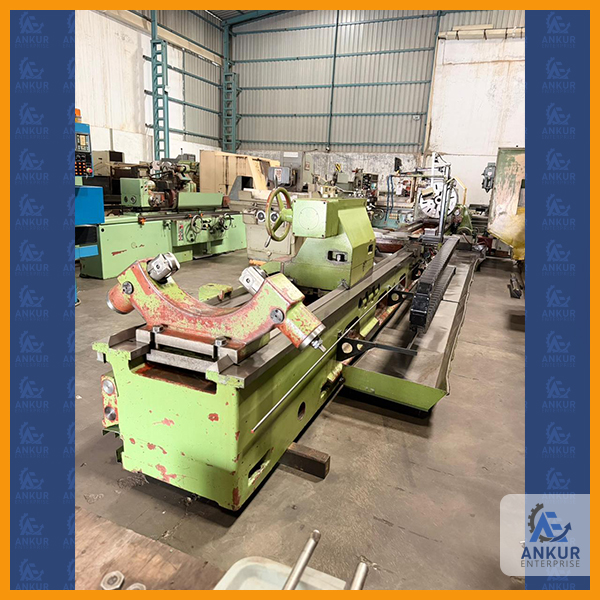

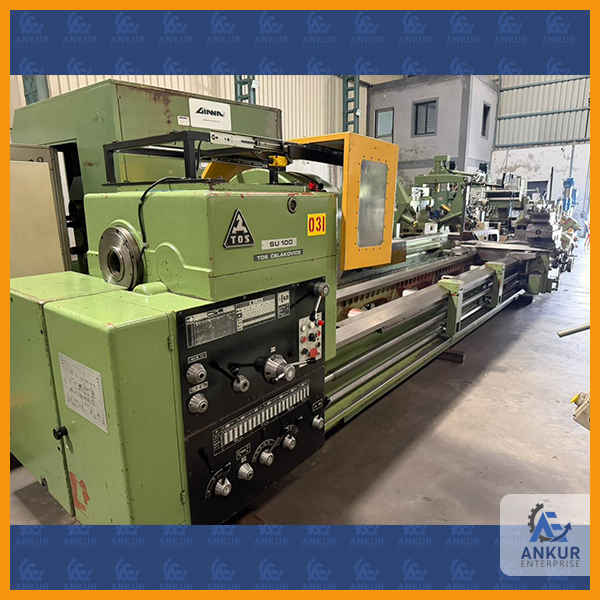

| HEAVY DUTY LATHE MACHINE | |
| MAKE | TOS (CZECH REPUBLIC) |
| MODEL | SU100 |
| YEAR | 1996 |
| ABC | 8000 MM |
| CENTER HEIGHT | 520 MM |
| SWING OVER BED | 1050 MM |

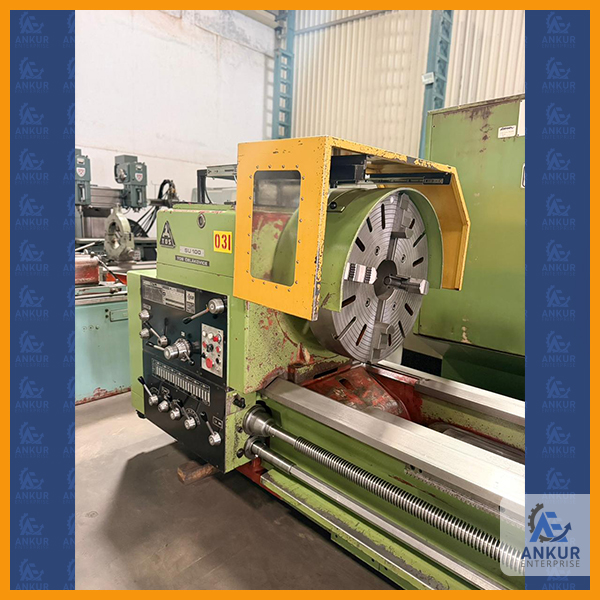

| CHUCK DIA. | 800 MM |
| SWING OVER CARRIAGE | 730 MM |
| BED WIDTH | 800 MM |
| SPINDLE SPEED | 2.24 TO 450 RPM |
| SPINDLE BORE | 102 MM |
| MAX. LOAD BETWEEN CENTER | 5 TON |
| MAX. LOAD WHEN SUPPORTED BY REST | 6 TON |
| MAIN MOTOR | 22 KW |
| TOTAL INPUT | 24 KW |
| APPROX. WEIGHT | 11.6 TON |

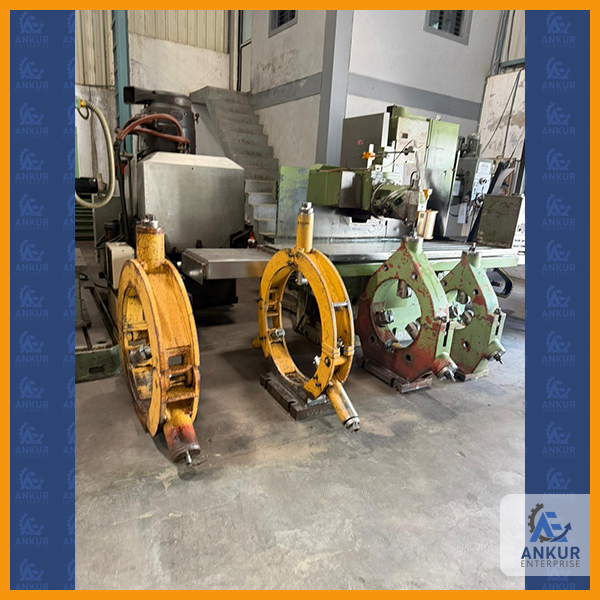

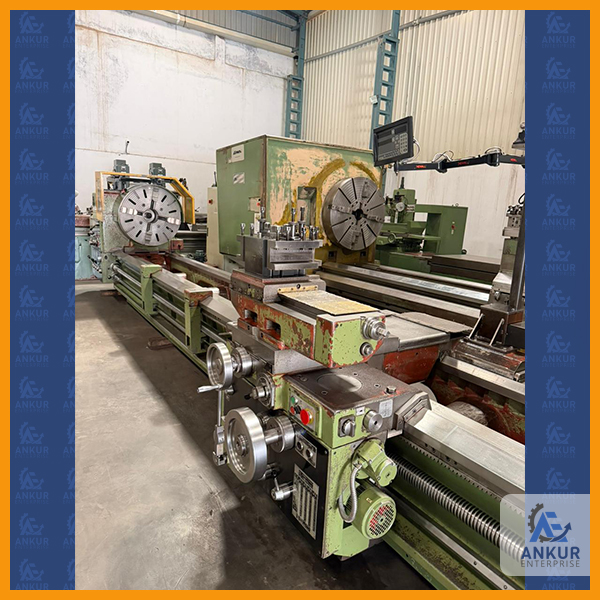

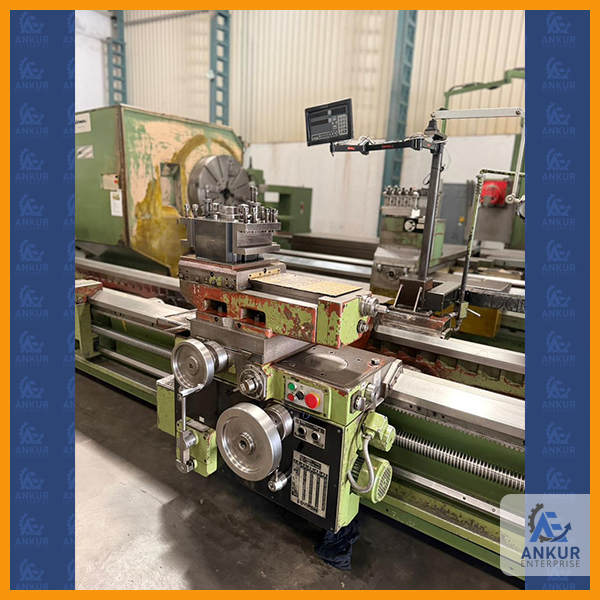

| MACHINE IS COMPLETE WITH DRO, FOUR 3 PIN STEADY & ONE 2 PIN STEADY. | |
| WITH MOTORISED RAPID TRAVEL ON CARRIAGE & CROSS SLIDE. |
