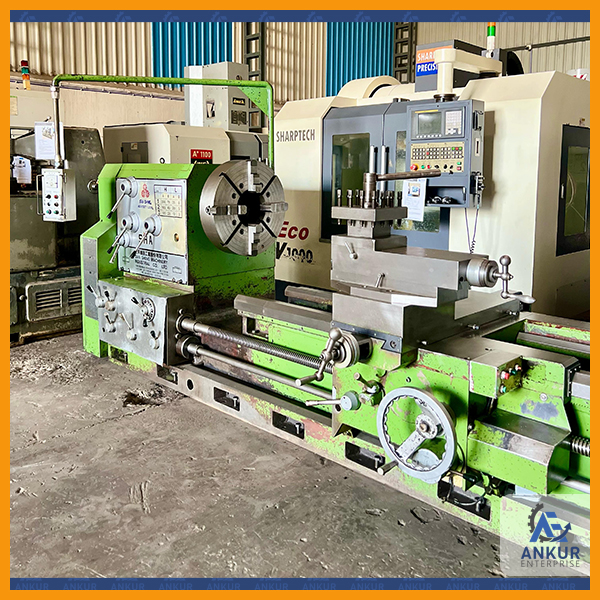

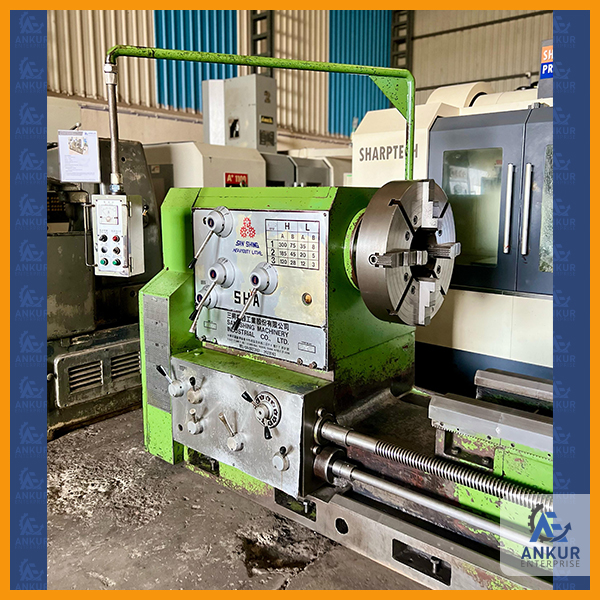

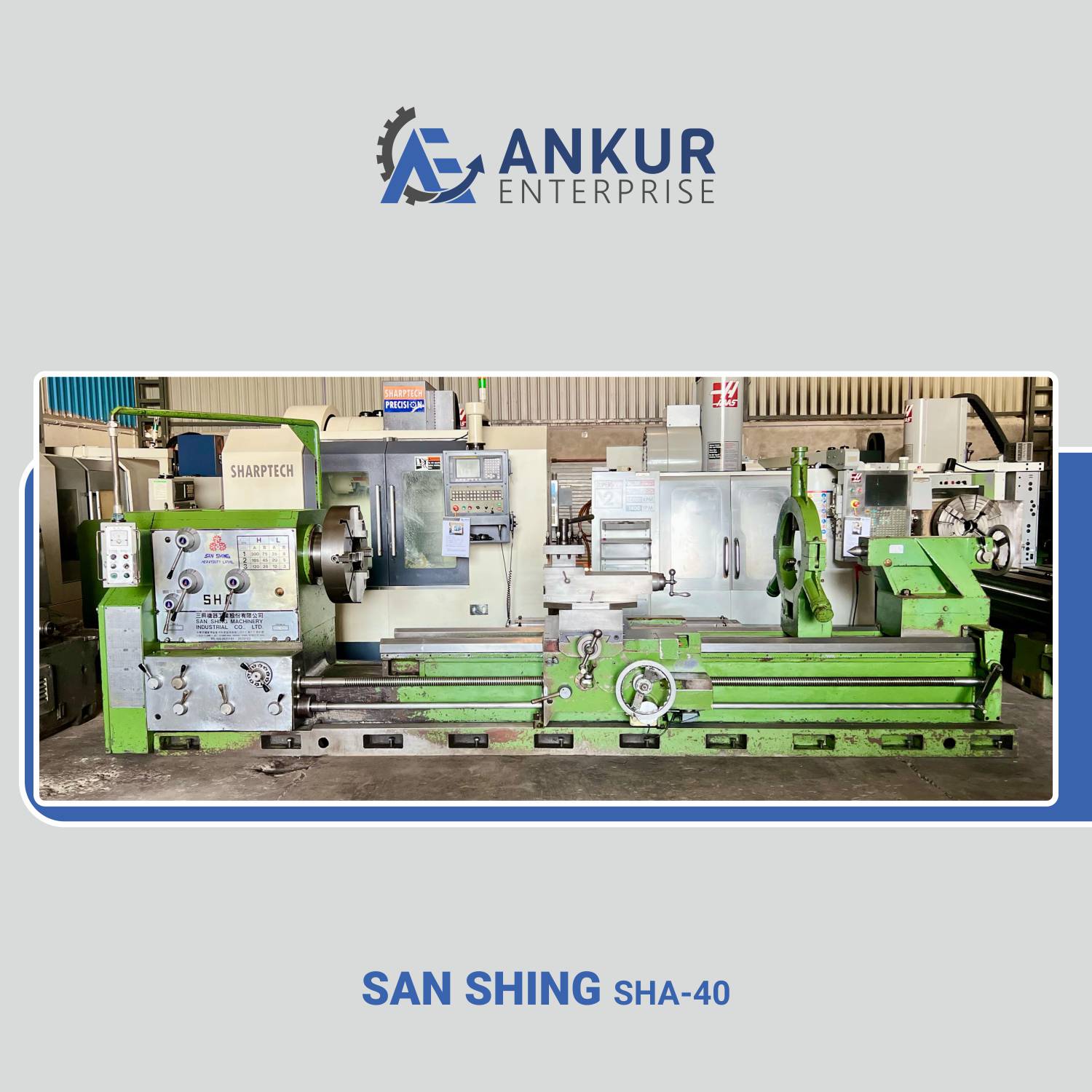

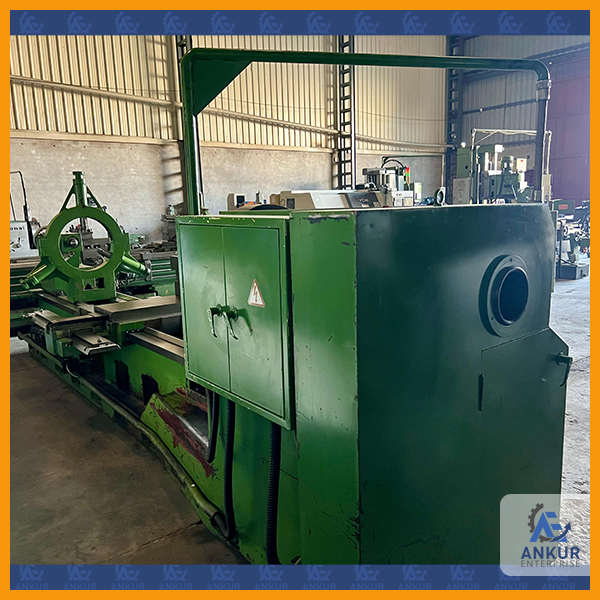

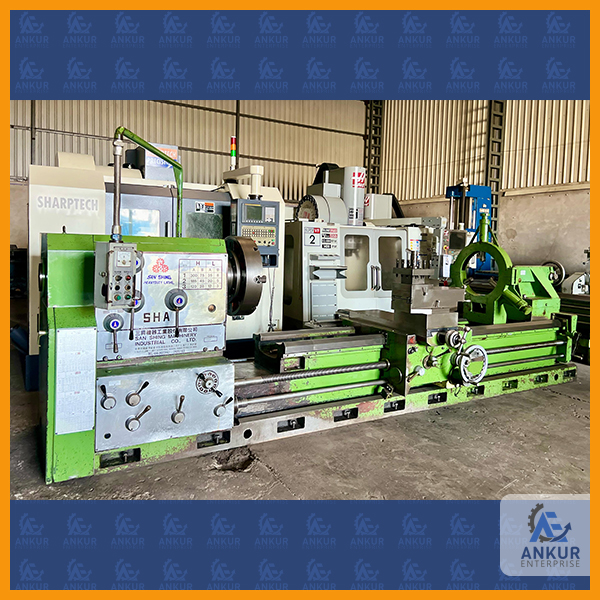

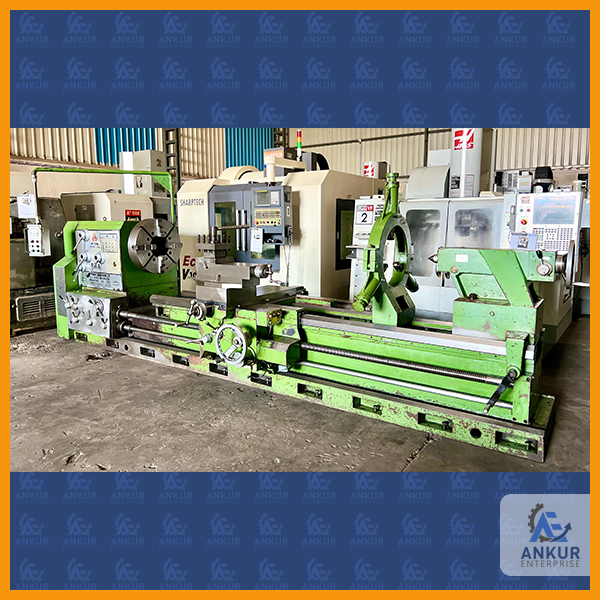

| HEAVY DUTY LATHE MACHINE | |
| MAKE | SAN SHING (TAIWAN) |
| MODEL | SHA-40 |
| MAX JOB LENGTH MACHINE CAN DO | 3000 MM |
| CENTER HEIGHT | 500 MM |
| SWING OVER BED | 1000 MM |
| SWING IN GAP | 1500 MM |
| SWING OVER CROSS SLIDE | 750 MM |

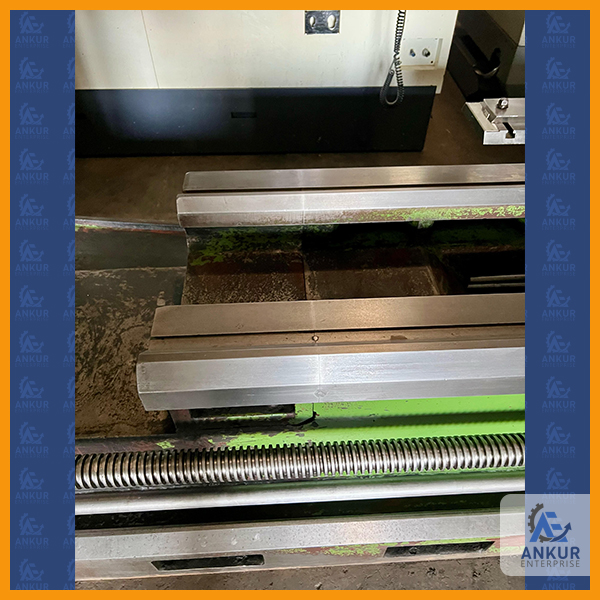

| BED WIDTH | 560 MM |

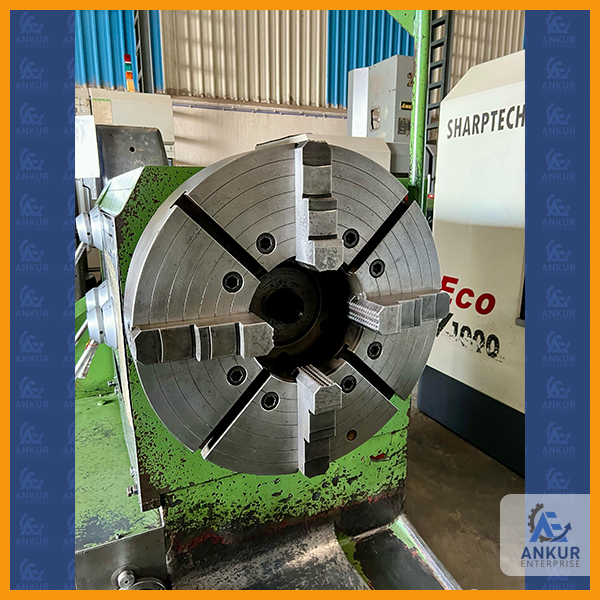

| CHUCK DIA. | 600 MM |
| SPINDLE BORE | 150 MM |
| SPINDLE SPEED | 3-300 RPM |
| QUILL TAPER | MT6 |
| APPROX. WEIGHT | 8 TON |
| MACHINE IS GAP BED TYPE LATHE | |

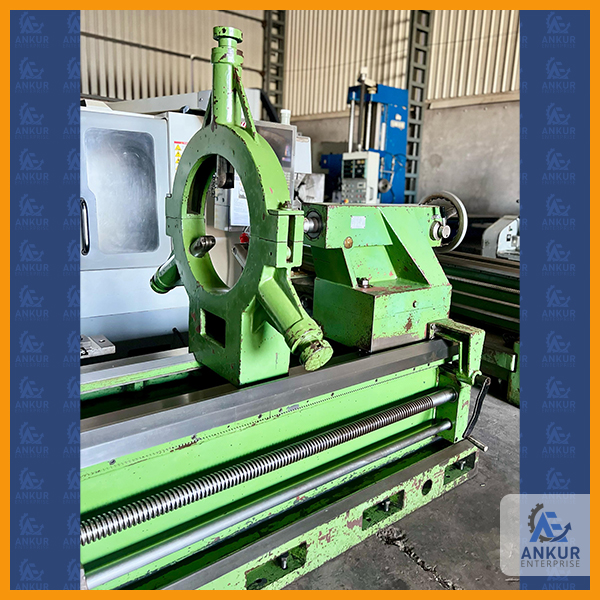

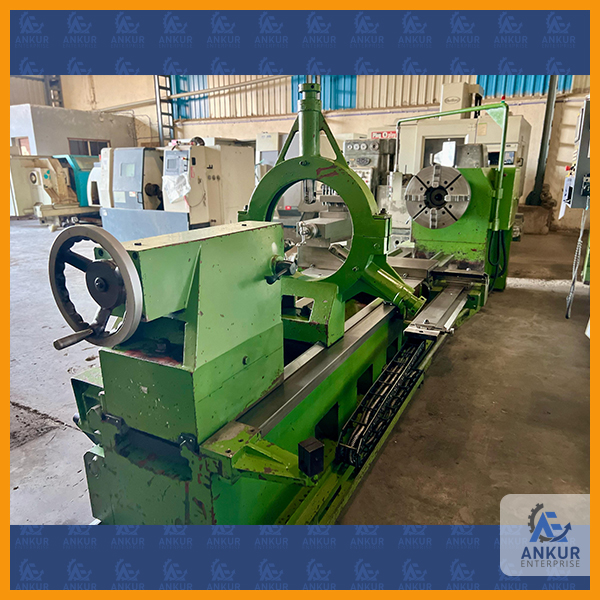

| EQUIPPED WITH CONTROL PENDANT AND 3 PIN STEADY | |

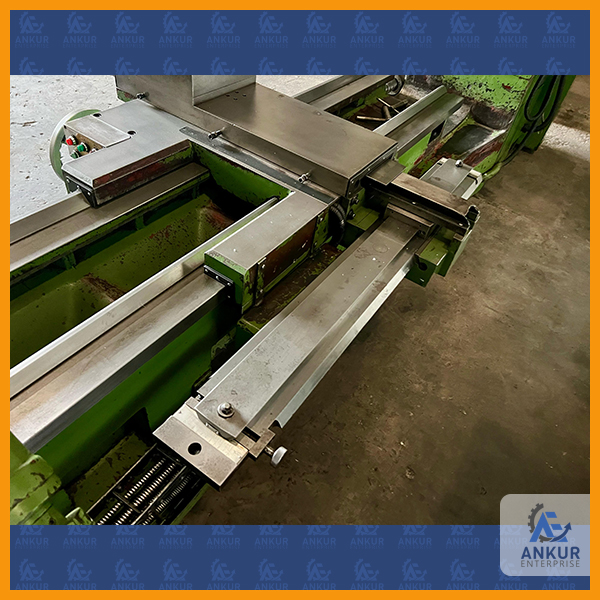

| COMPLETE WITH TAPER TURNING ATTACHMENT +- 10 ANGLES | |
| WITH MOTORISED RAPID TRAVEL OF CROSS SLIDE AND CARRIAGE |
