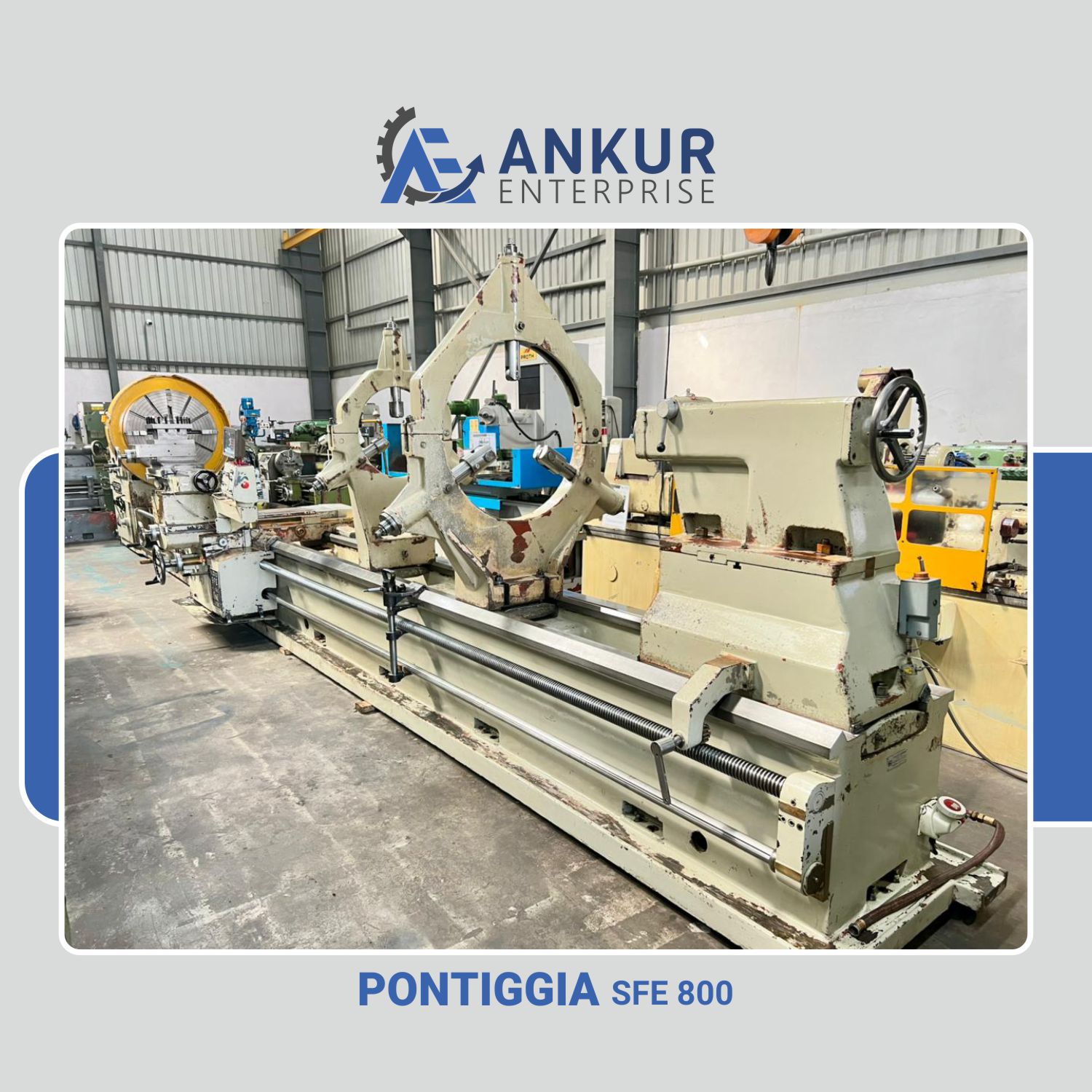

| HEAVY DUTY LATHE MACHINE | ||
| MAKE | PONTIGGIA (ITALY) | |
| MODEL | SFE 800 | |
| YEAR | 1981 | |
| ADMIT BETWEEN CENTER | 8000 MM | |
| CENTER HEIGHT | 800 MM | |
| MAX. Ø OVER SADDLE | 1200 MM | |
| MAX. Ø OVER BED | 1590 MM | |

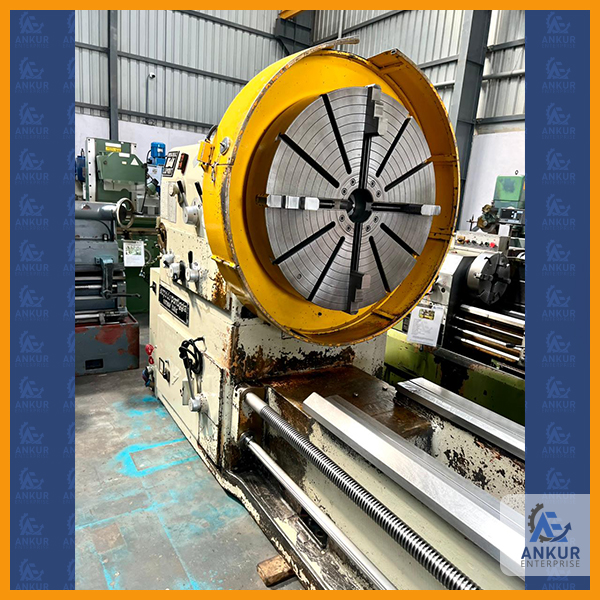

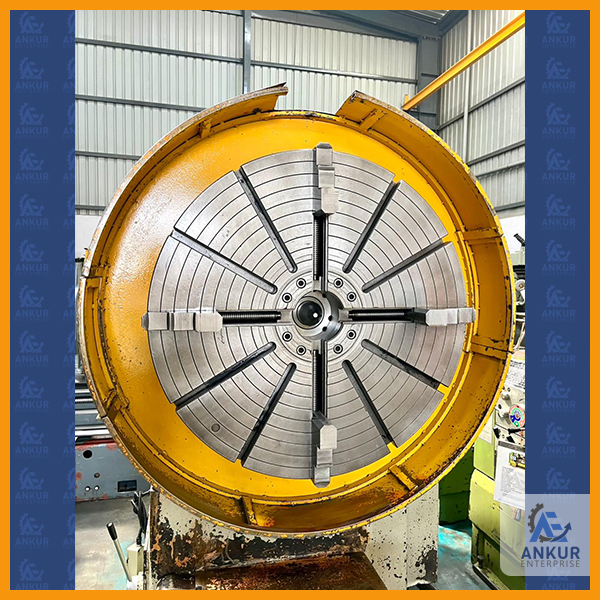

| CHUCK DIA. | 1000 MM | |

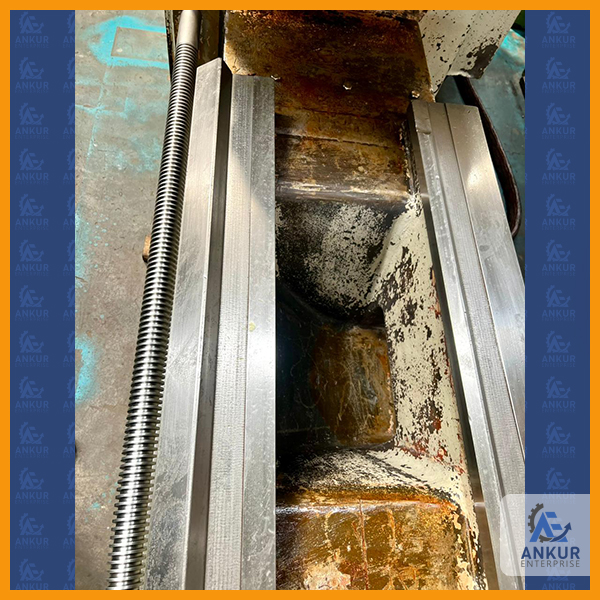

| BED WIDTH | 700 MM | |
| MAX. WEIGHT BETWEEN CENTERS | 6000 KG | |
| SPINDLE POWER | 18.5 KW | |
| SPINDLE SPEEDS | 8 | 350 RPM |
| SPINDLE BORE | 102 MM | |

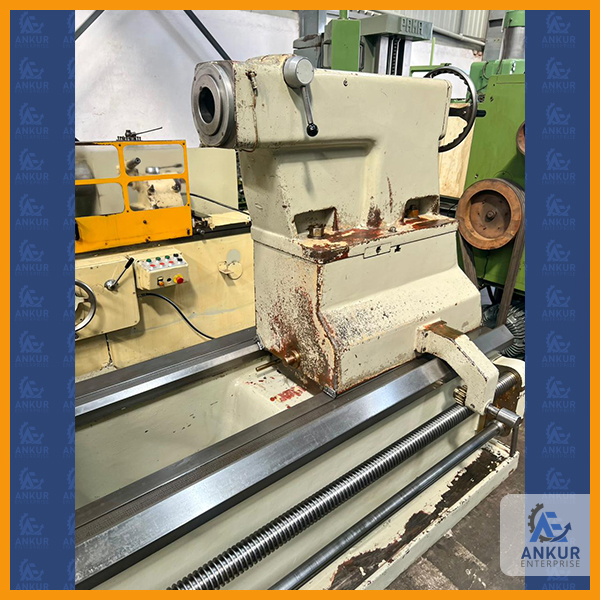

| TAILSTOCK NOSE | 125 MM | |
| TAILSTOCK NOSE TRAVEL | 400 MM | |
| TOTAL WEIGHT | 17 TONS | |

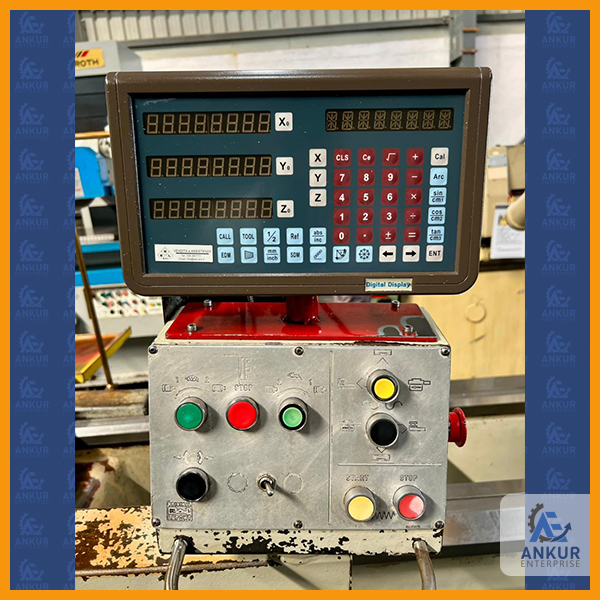

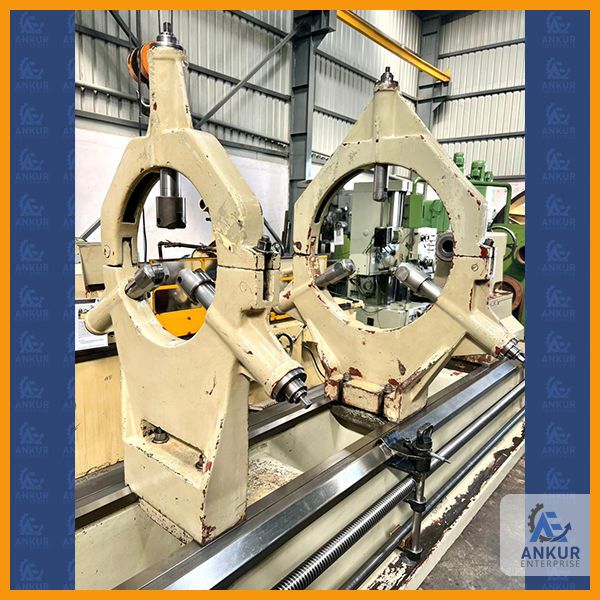

| MACHINE IS COMPLETE WITH 2&3 POINT STEADIES & DRO. | ||

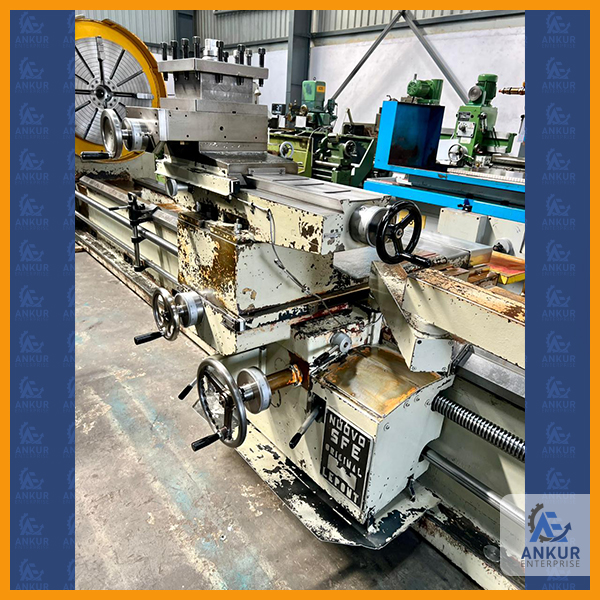

| FEATURE INCLUDES TOOL POST TRAVEL IN FEED & RAPID. | ||
| WITH RAPID TRAVELS ON THE CARRIAGE & CROSS SLIDE. |
