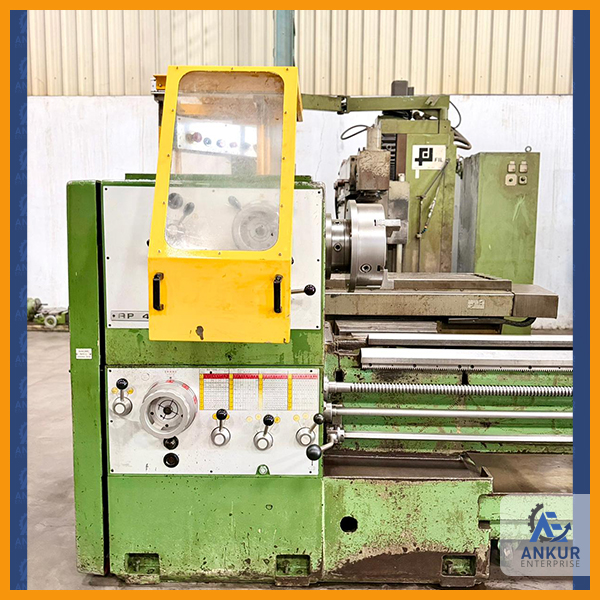

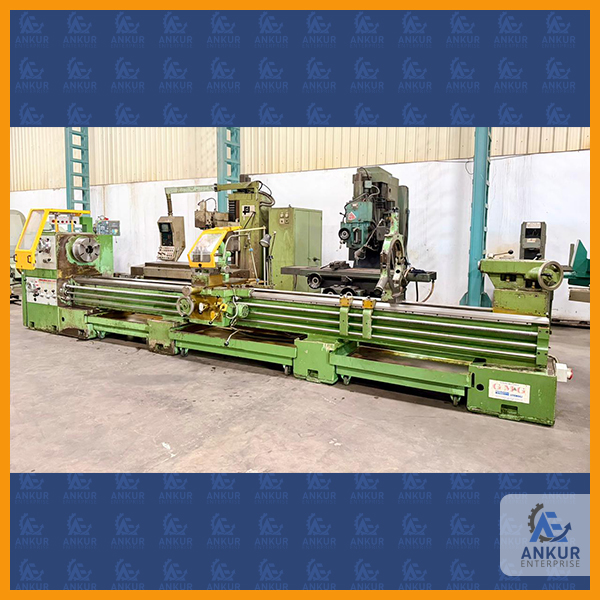

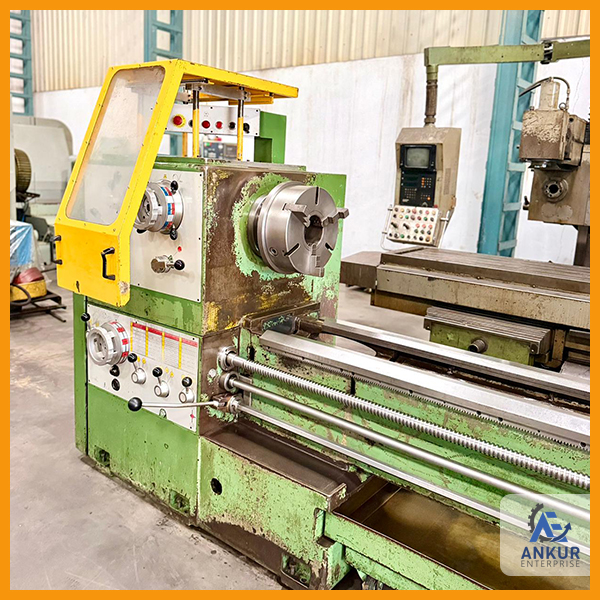

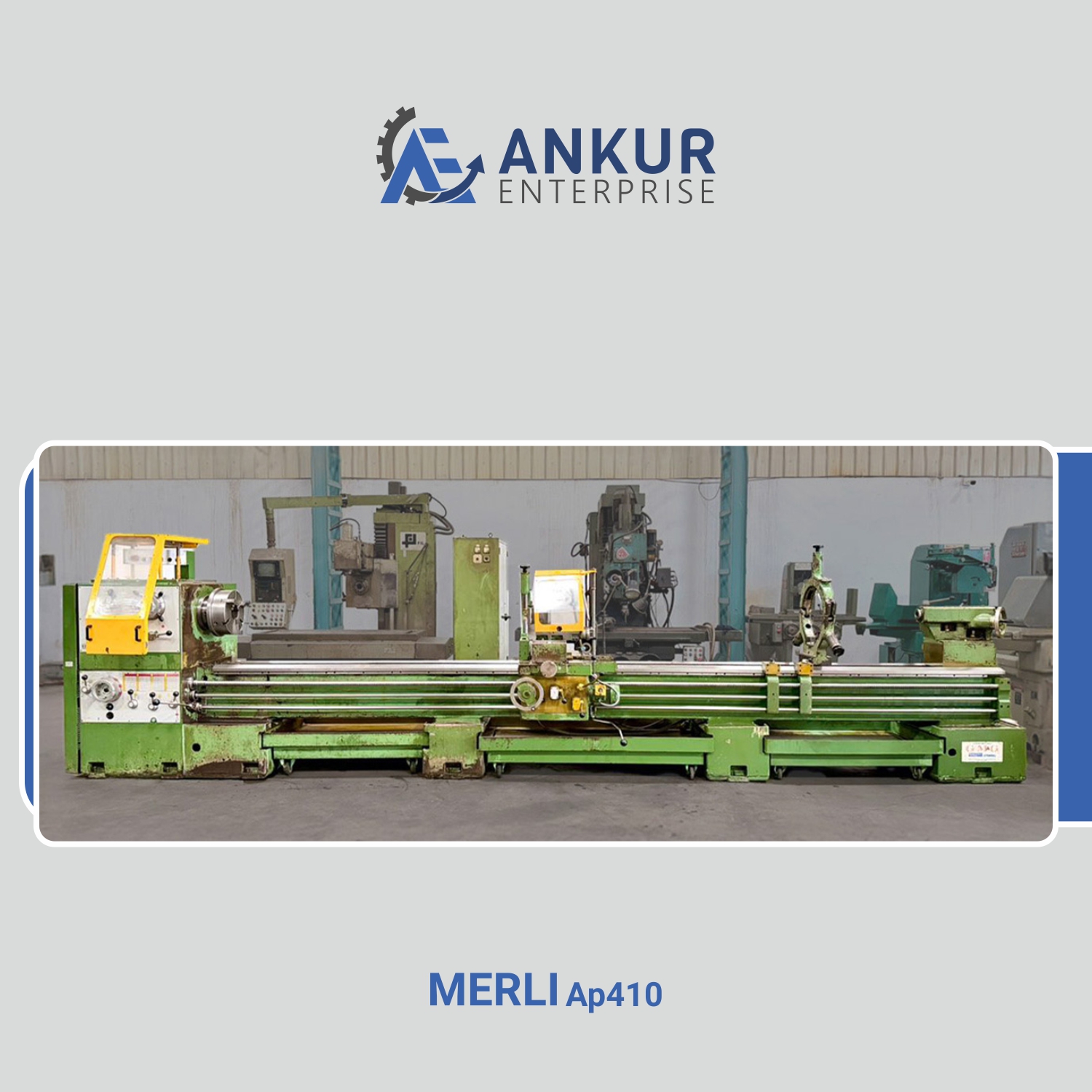

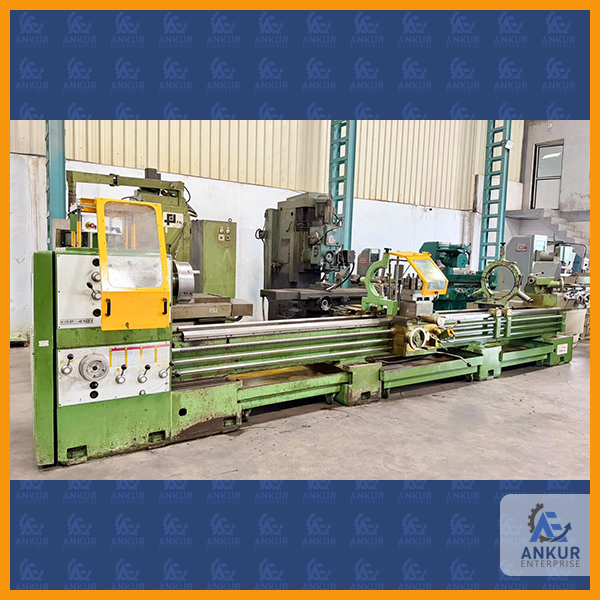

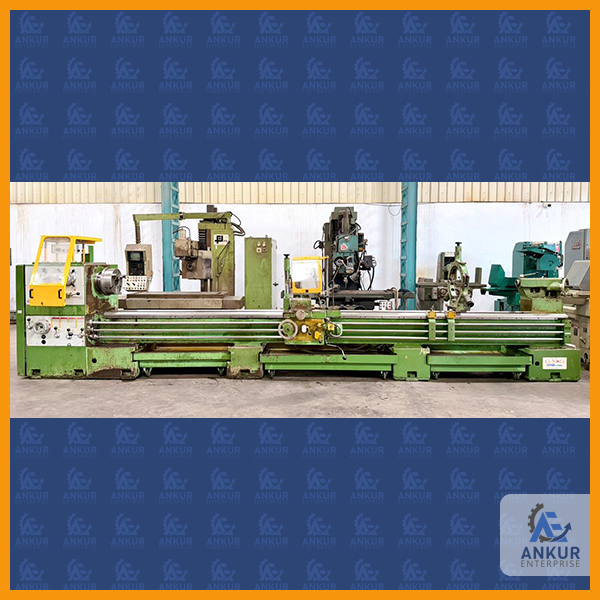

| GAP BED LATHE MACHINE | |
| MAKE | MERLI (ITALY) |
| MODEL | AP410 |
| MAX. JOB LENGTH | 5200 MM |
| CENTER HEIGHT | 410 MM |
| SWING OVER BED | 820 MM |
| SWING OVER CROSS SLIDE | 600 MM |
| SWING IN GAP | 1100 MM |
| BED WIDTH | 450 MM |
| SPINDLE SPEED | 14-1010 RPM |
| SPINDLE BORE | 105 MM |
| MAX. JOB LENGTH IN GAP | 290 MM |

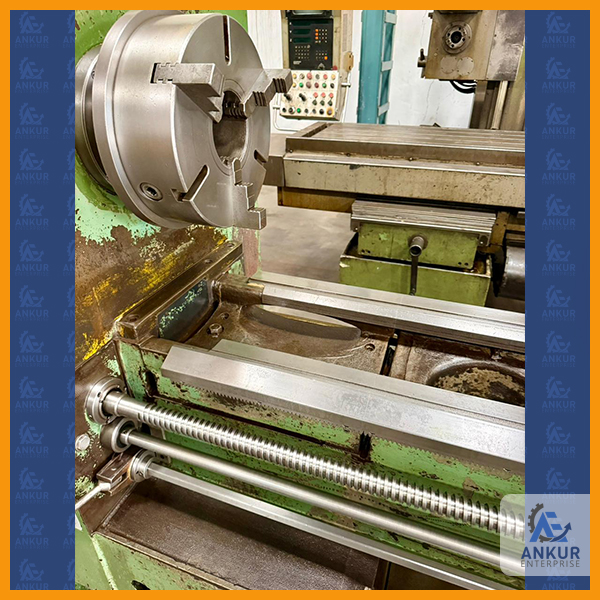

| 3 JAW CHUCK DIA. | 350 MM |
| 4 JAW CHUCK DIA. | 600 MM |
| IT’S A GAP BED TYPE MACHINE. | |

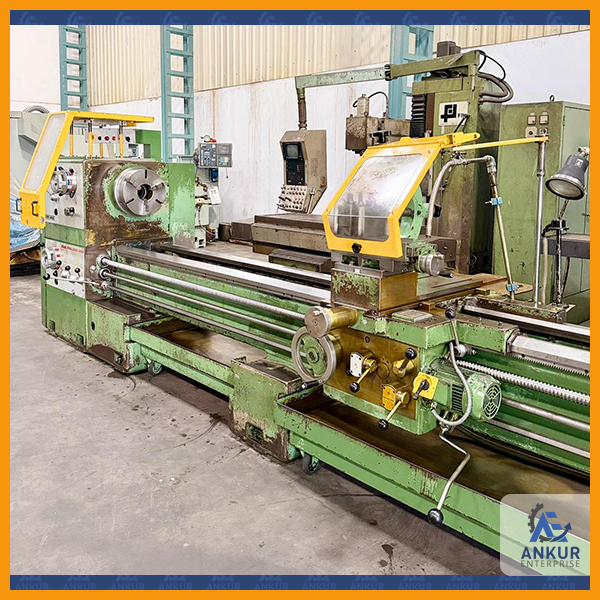

| WITH RAPID TRAVELS ON THE CARRIAGE & CROSS SLIDE. | |

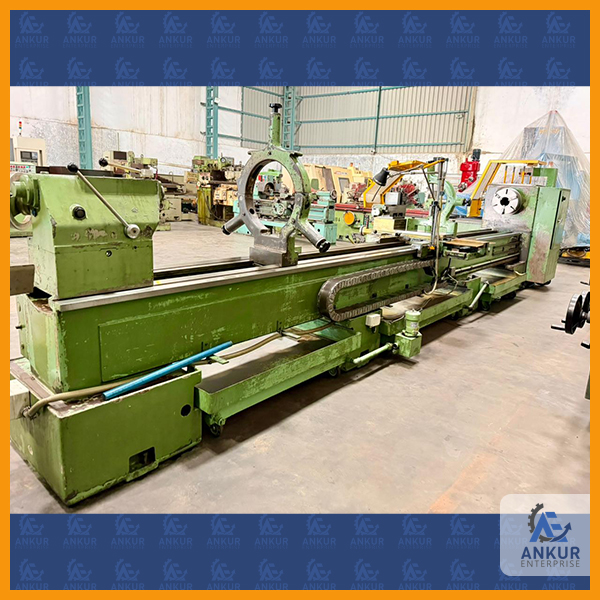

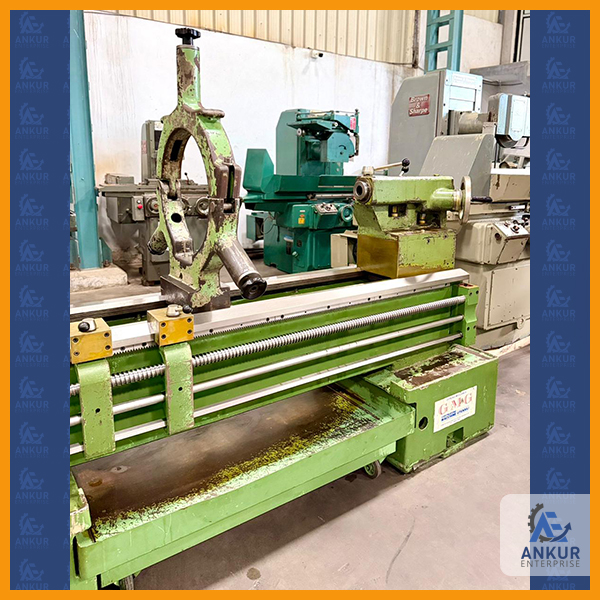

| COMPLETE WITH 1- 3 PIN STEADY & 1 HALF STEADY. |
