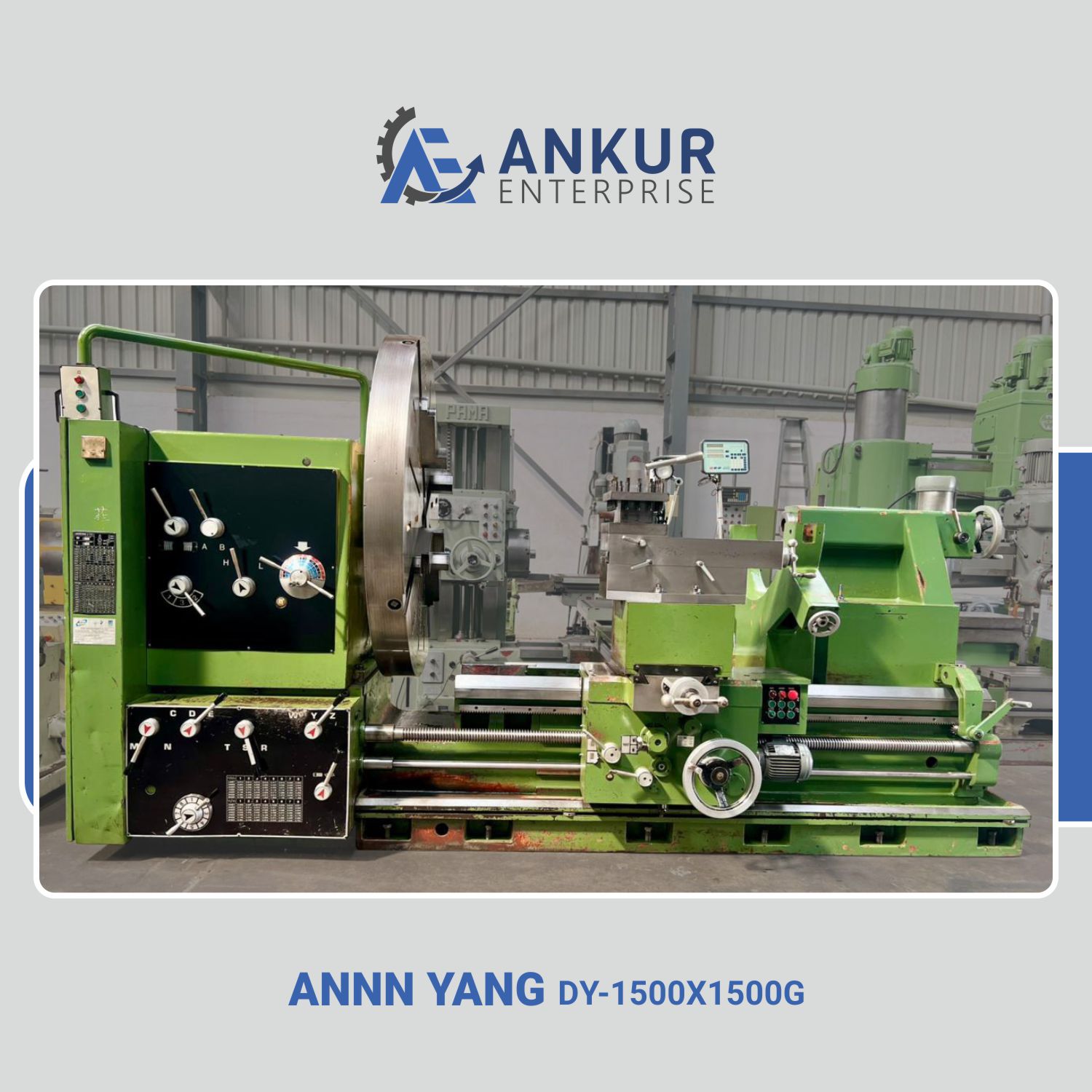

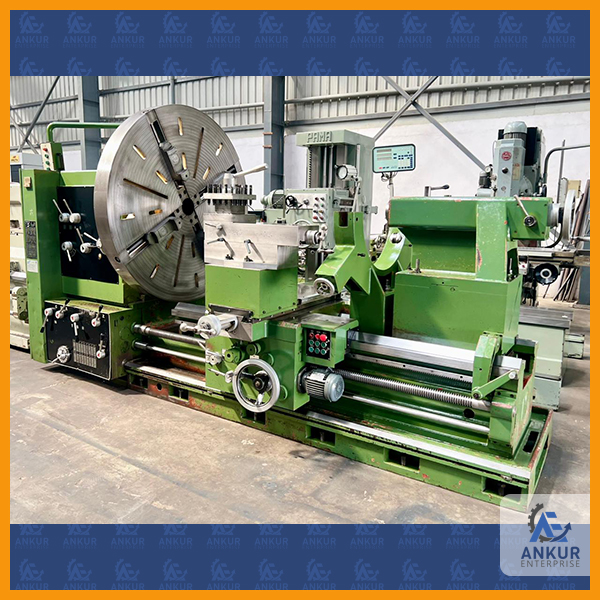

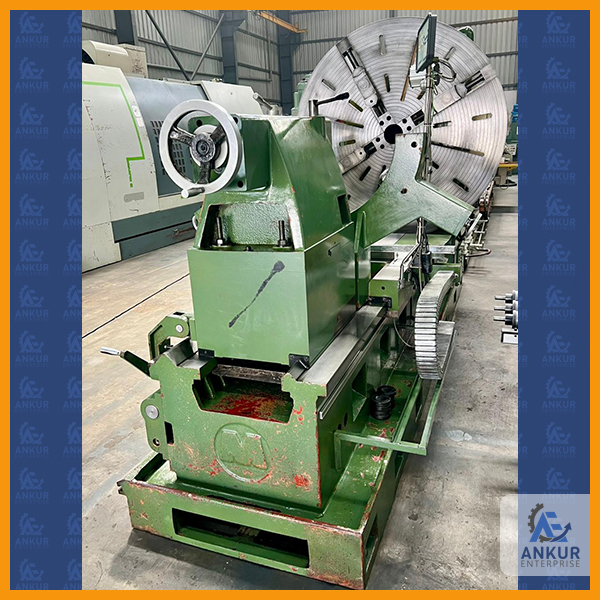

| EXTRA HEAVY-DUTY LATHE MACHINE | |

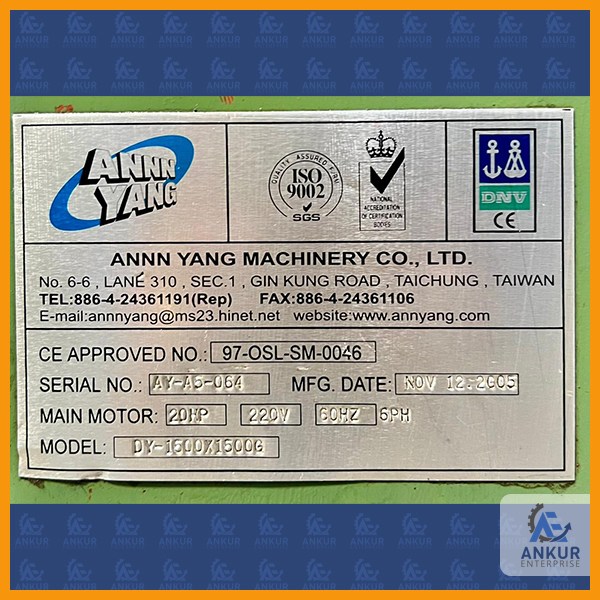

| MAKE | ANNN YANG (TAIWAN) |
| MODEL | DY-1500X1500G |
| YEAR | 2005/11 |
| MAX. JOB LENGTH MACHINE CAN PROCESS | 1500 MM |
| CENTER HEIGHT | 750 MM |
| SWING OVER BED | 1500 MM |
| SWING OVER CARRIAGE | 1130 MM |
| SWING IN GAP | 2000 MM |
| CROSS SLIDE TRAVEL | 750 MM |
| COMPOUND REST TRAVEL | 350 MM |
| QUILL TRAVEL | 350 MM |
| BED WIDTH | 692 MM |

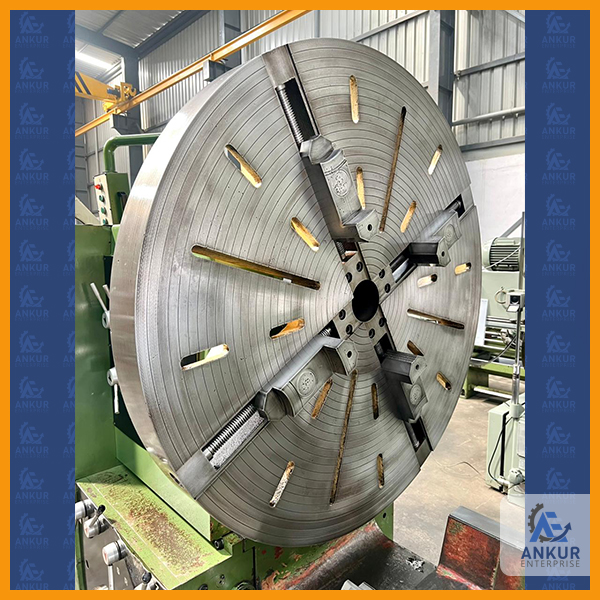

| CHUCK DIA. | 1530 MM |
| SPINDLE BORE | 155 MM |
| SPINDLE SPEED | 3-400 RPM |
| TAILSTOCK TAPER | MT6 |
| MAIN MOTOR | 20HP |
| APPROX. WEIGHT | 11 TON |

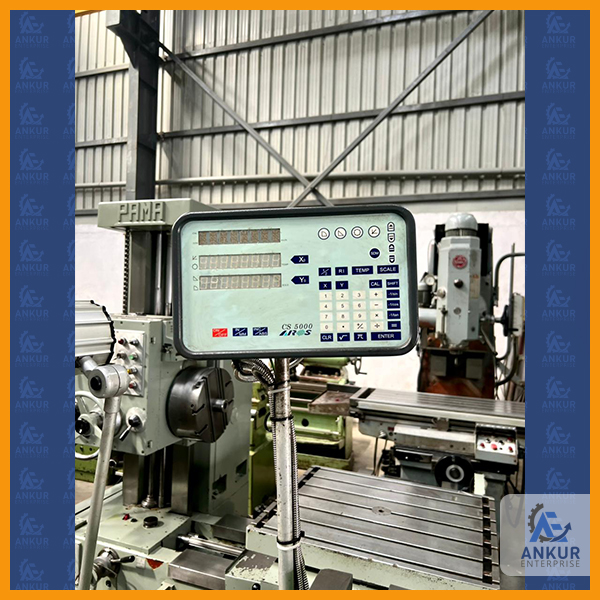

| EQUIPPED WITH DRO & 2 POINT STEADY. | |
| IT IS A GAP-BED TYPE MACHINE. | |
| WITH RAPID TRAVELS ON THE CARRIAGE. |
