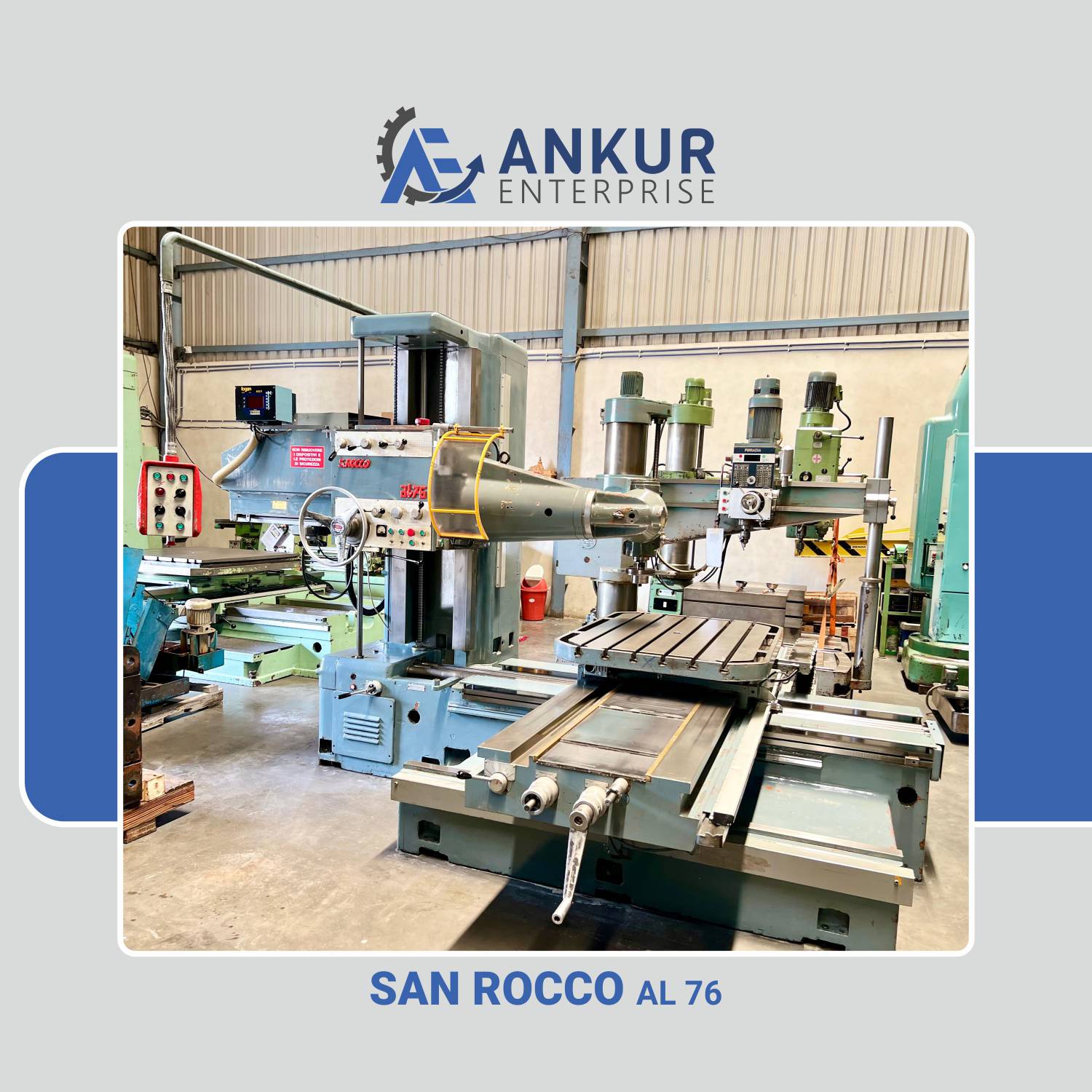

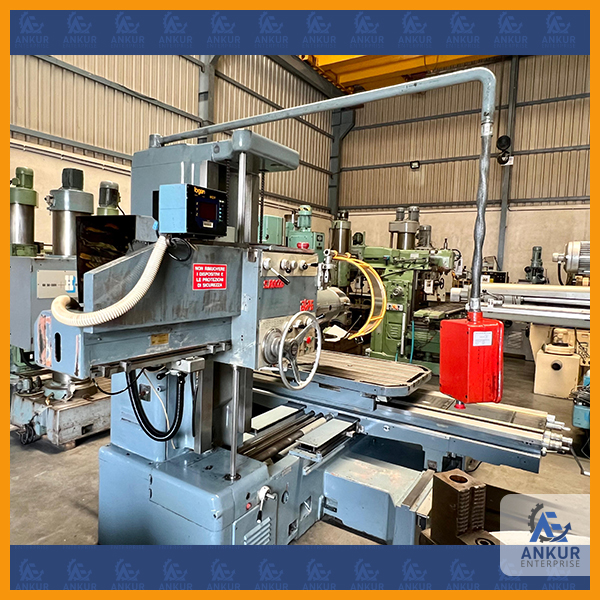

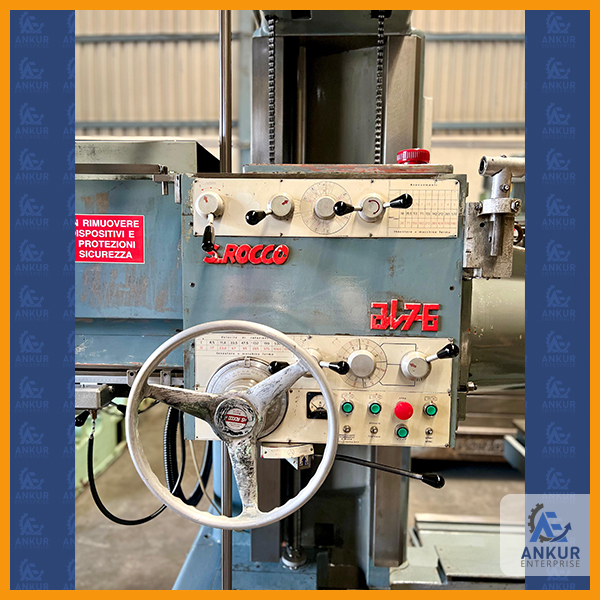

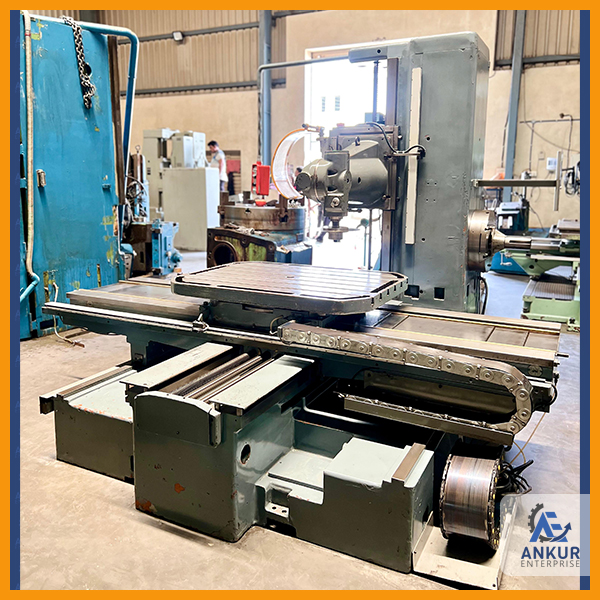

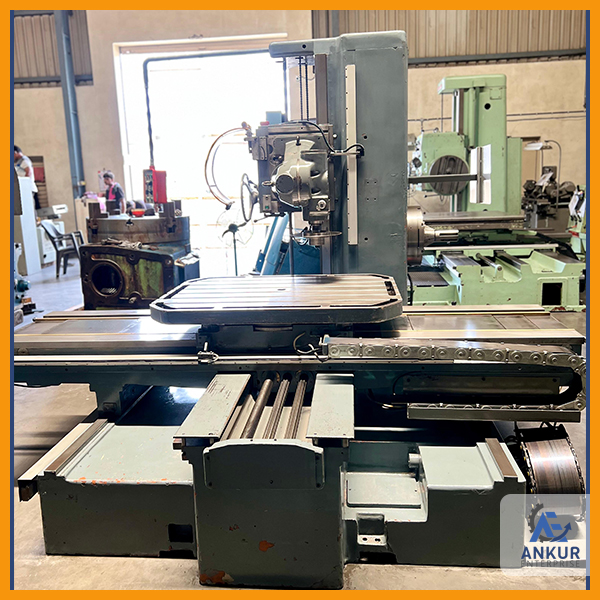

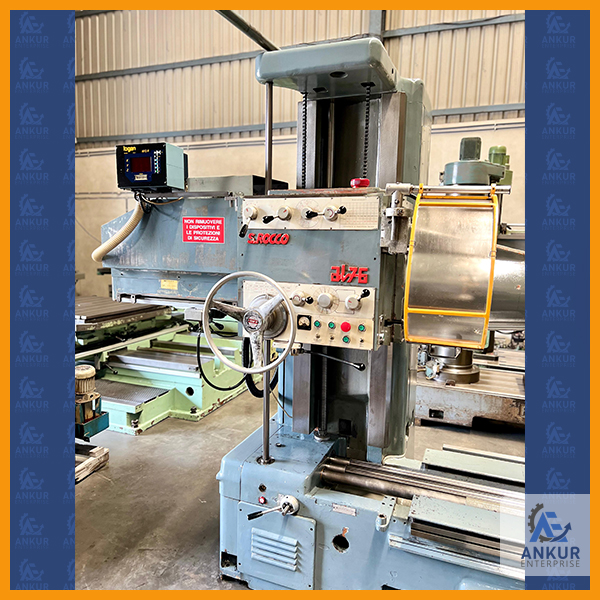

| HORIZONTAL BORING | |
| MAKE | SAN ROCCO (ITALY) |
| MODEL | AL 76 |
| SPINDLE DIA. | 76 MM |

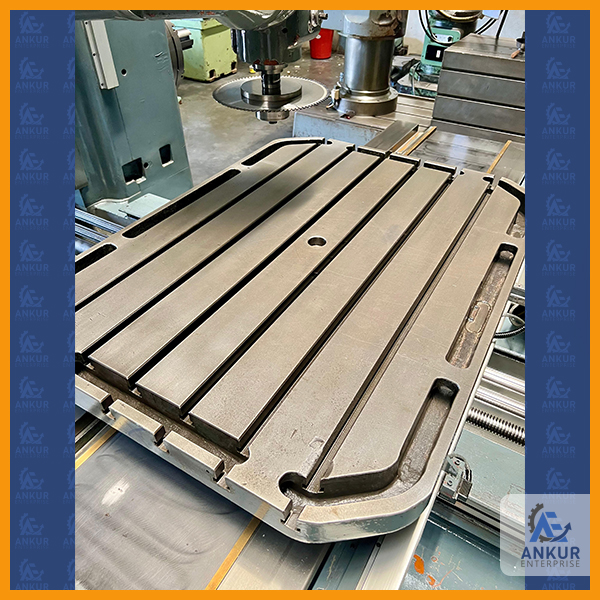

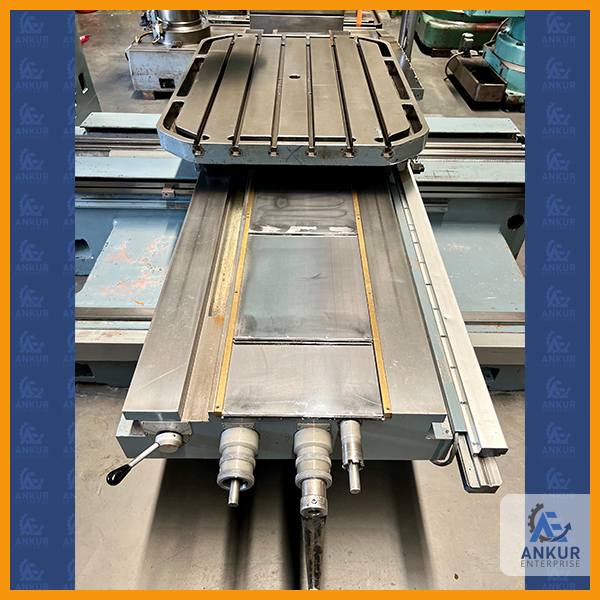

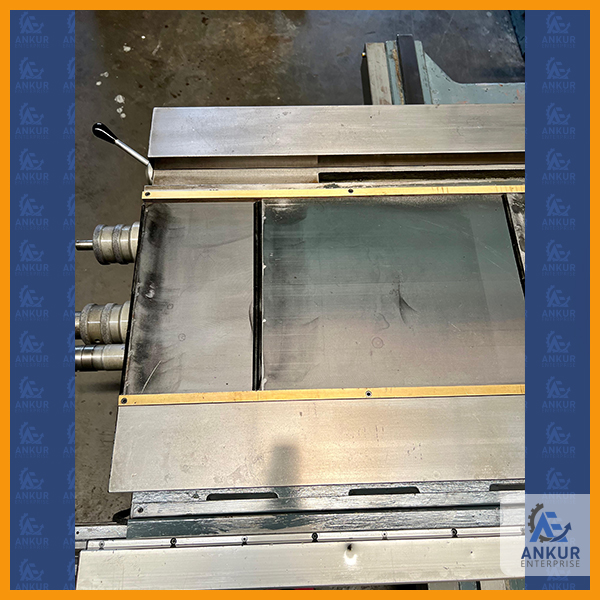

| TABLE SIZE | 1220X915 MM |
| LONGITUDINAL TRAVEL | 940 MM |
| CROSS TRAVEL | 2000 MM |
| VERTICAL TRAVEL | 1100 MM |
| SPINDLE STROKE | 660 MM |
| SPINDLE SPEED | 8.5 TO 1500 RPM |
| SPINDLE MOTOR POWER | 9 HP |
| SPINDLE TAPER | CM5 |
| APPROX. WEIGHT | 8.5 TON |

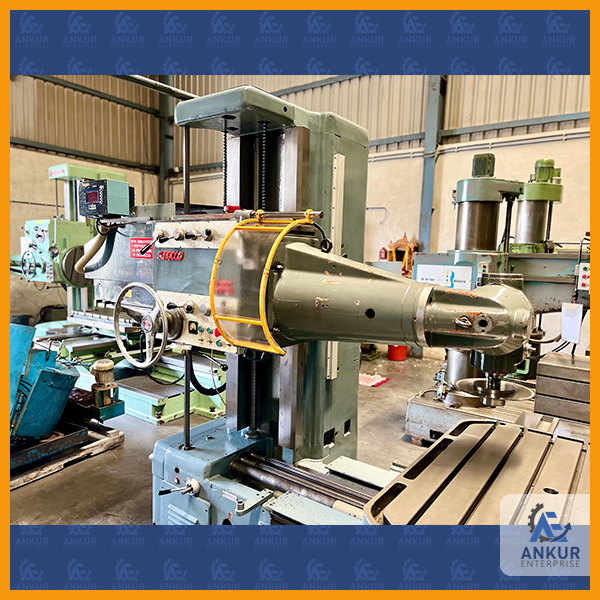

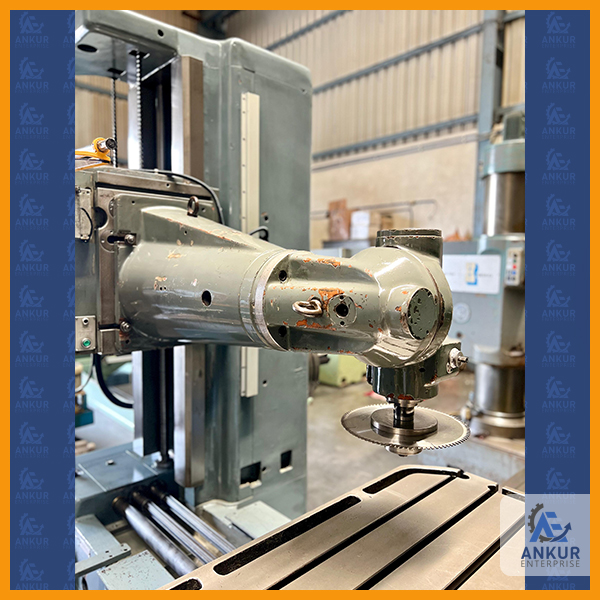

| COMPLETE WITH DRO, FACING HEAD, AND BI-ROTARY MILLING HEAD |
