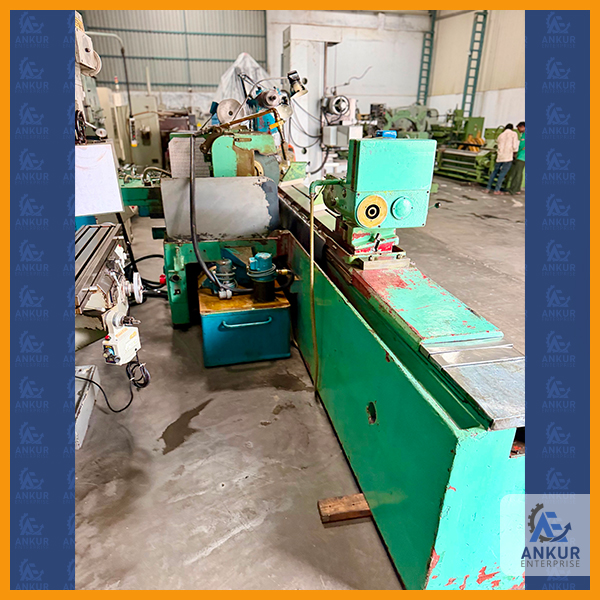

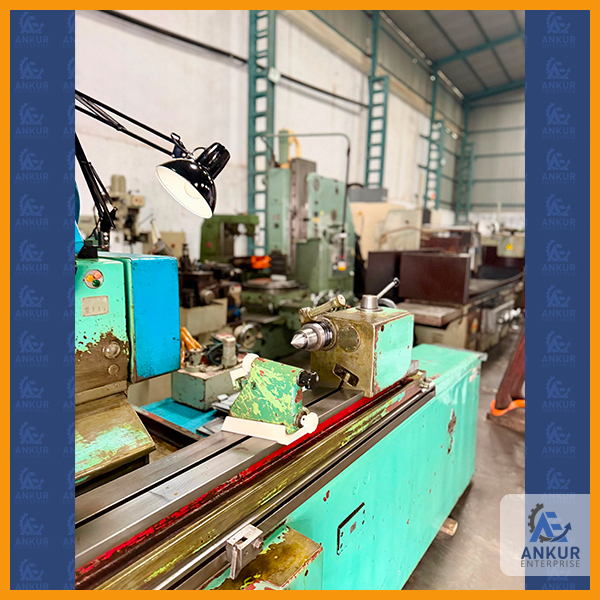

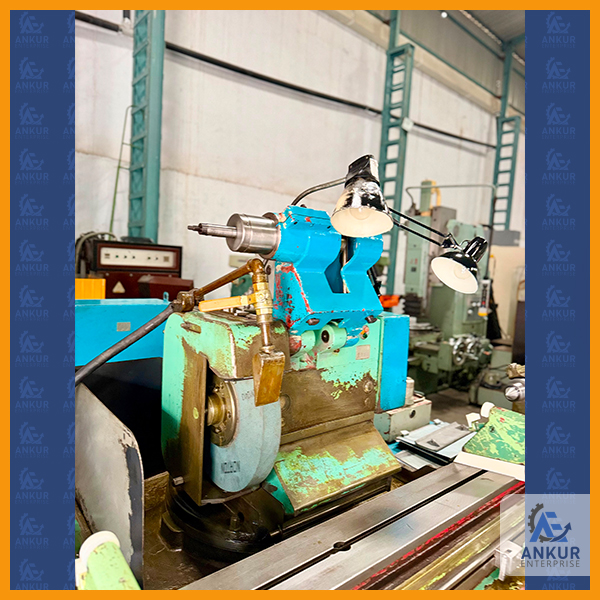

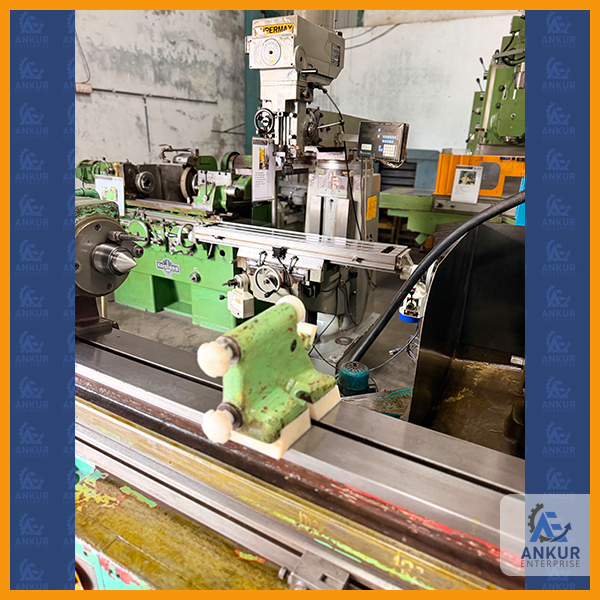

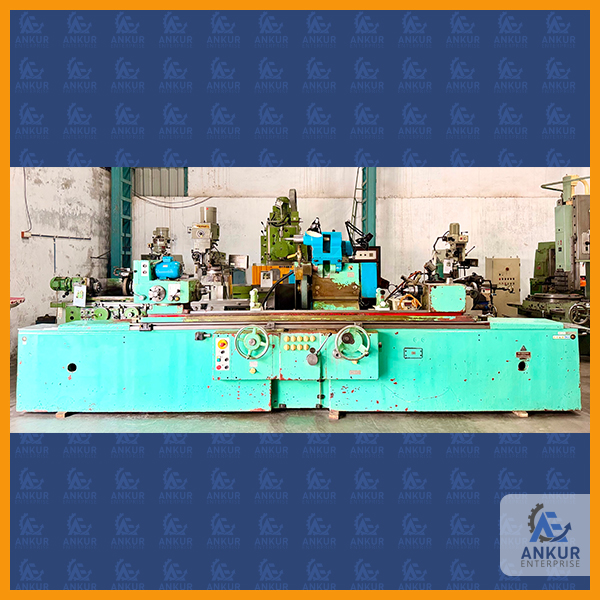

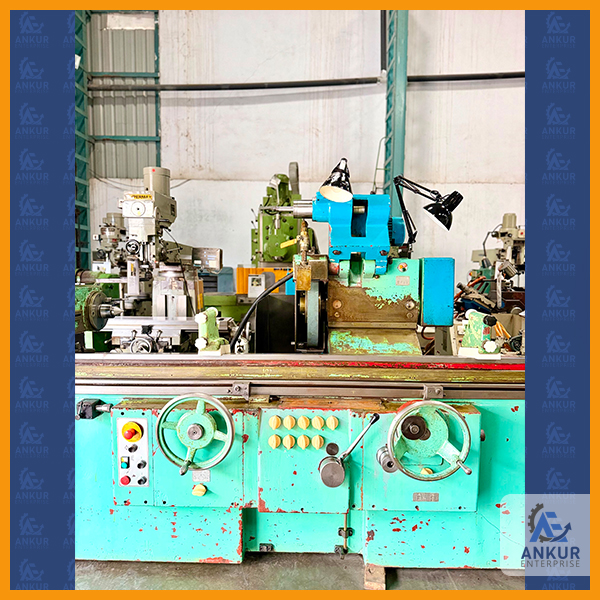

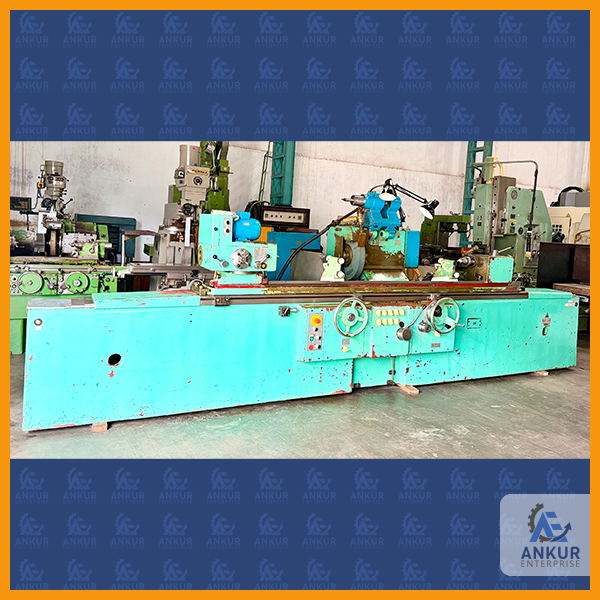

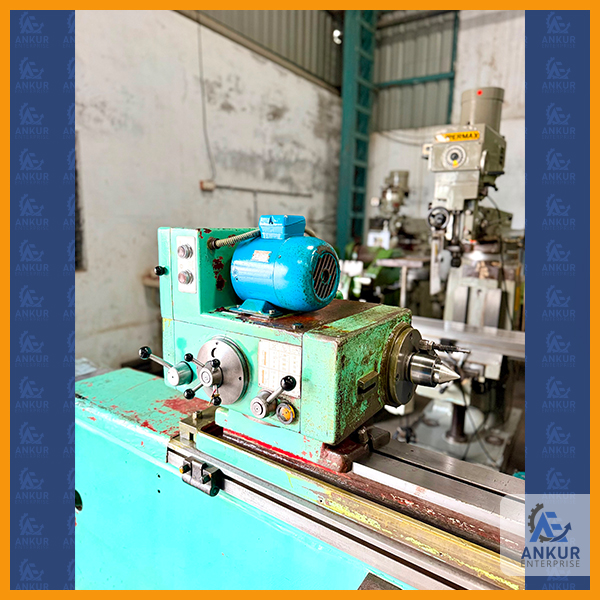

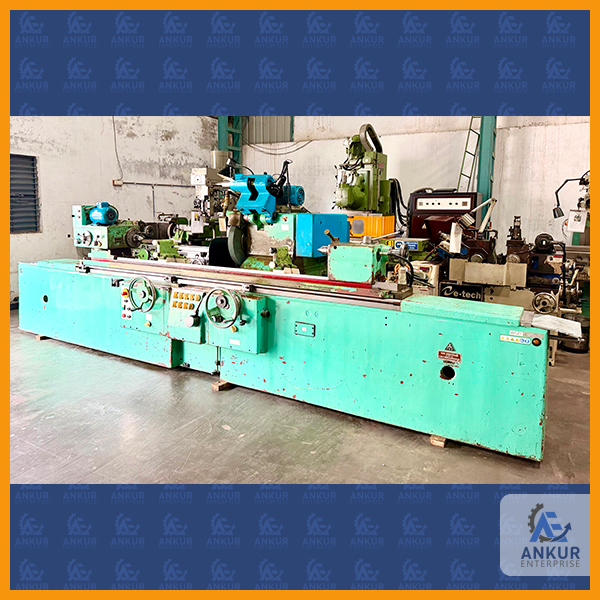

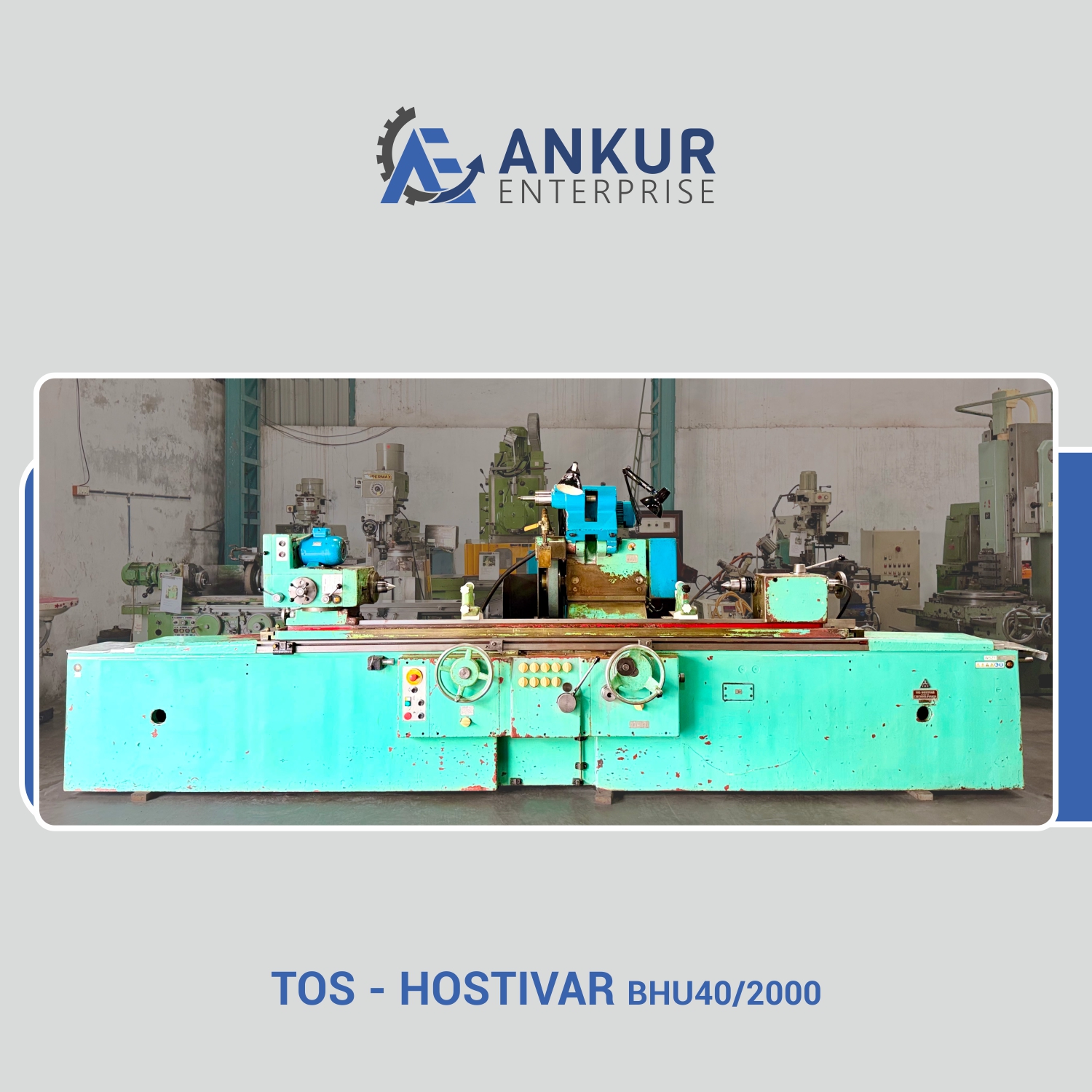

| CYLINDRICAL GRINDER ID/OD UNIVERSAL | |

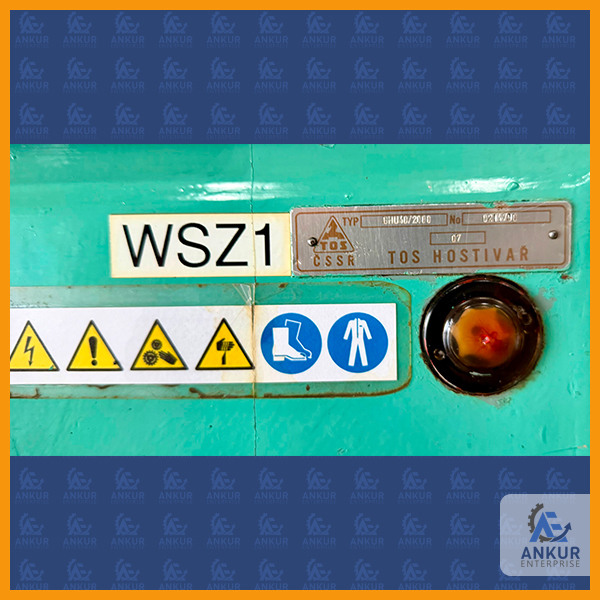

| MAKE | TOS – HOSTIVAR (CZECH REPUBLIC) |
| MODEL | BHU40/2000 |
| CENTER HEIGHT | 200 MM |
| MAX. DIAMETER OF JOB | 400 MM |
| MAX. LENGTH OF JOB | 2000 MM |
| GRINDING WHEEL SIZE | DIAMETER 500 MM X 60 MM WIDTH |
| WORK HEAD SPINDLE TAPER | MT5 |
| LEAST COUNT | 1 MICRON (0.001 MM) |
| WORK-HEAD SPEED | 12 RPM TO 400 RPM |
| SWIVEL OF WORK HEAD | 90 DEGREE |
| SWIVEL OF WHEEL HEAD | +-45 DEGREE |
| FEATURES LIKE DELAY, AUTO-SLOW, PLUNGE GRINDING, RAPID TRAVEL OF TABLE ETC. | |
| FEATURES LIKE AUTO-CUT & AUTO-COMPENSATION. | |
| WITH MAGNETIC |
