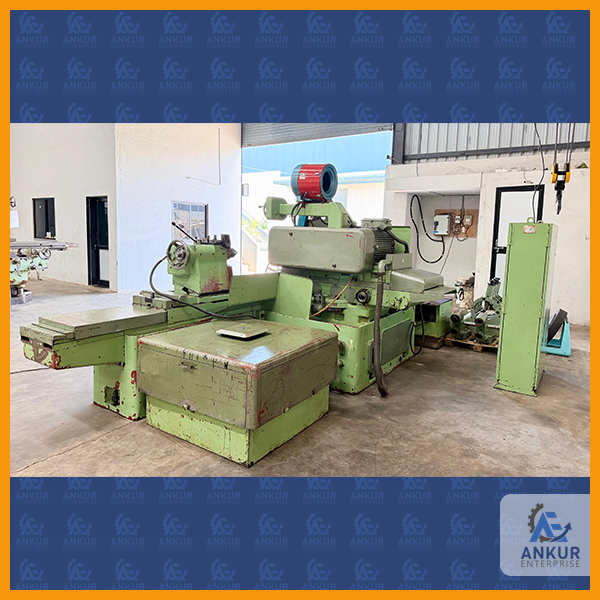

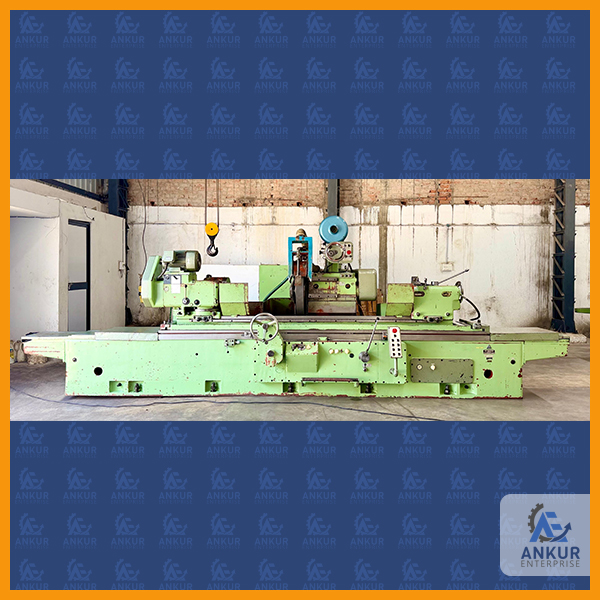

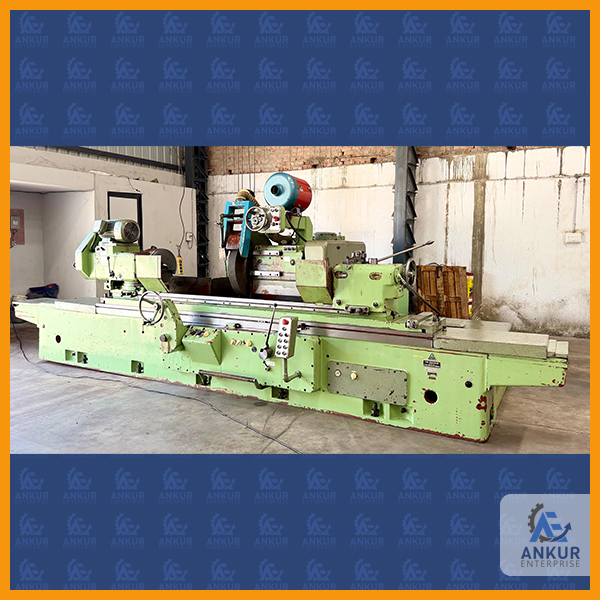

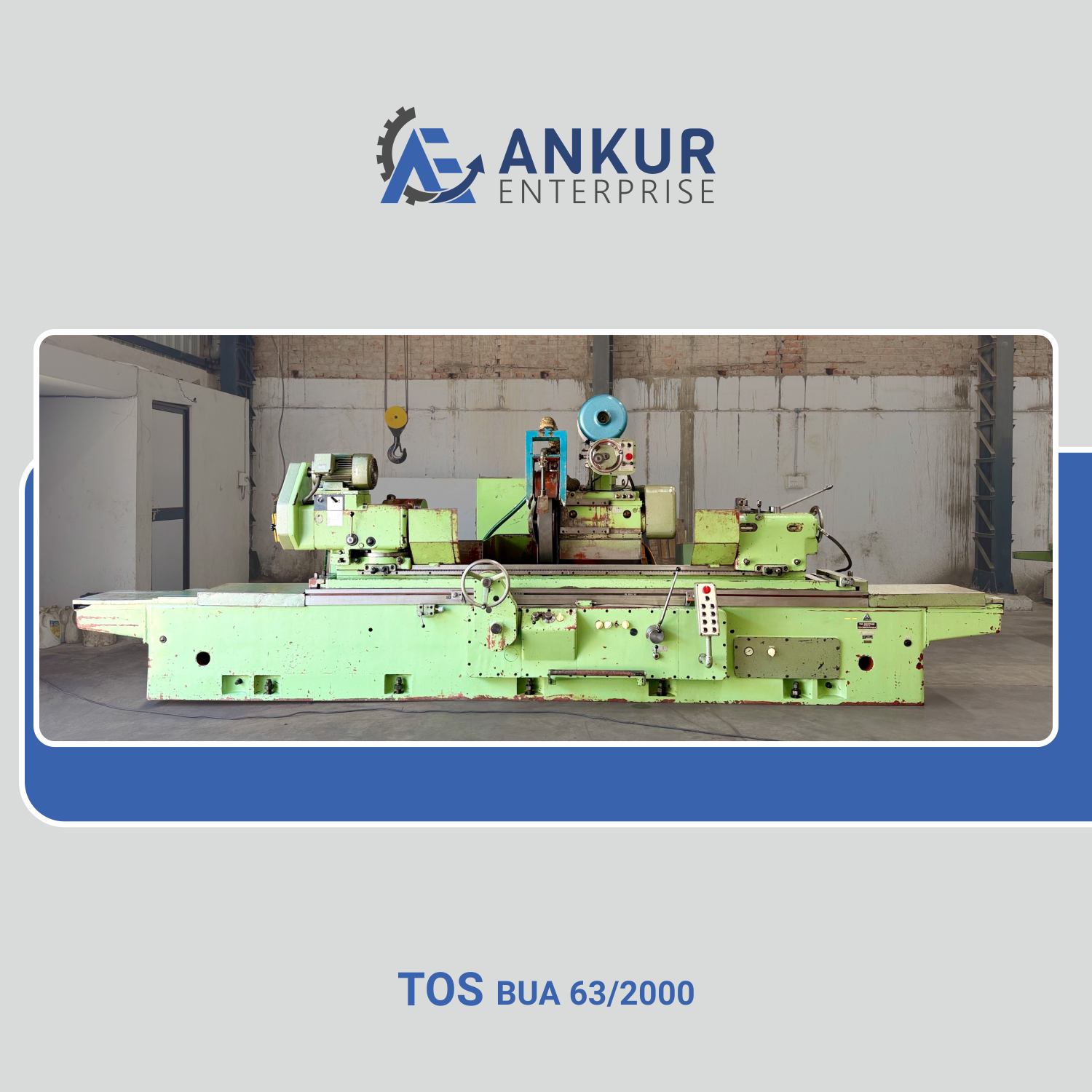

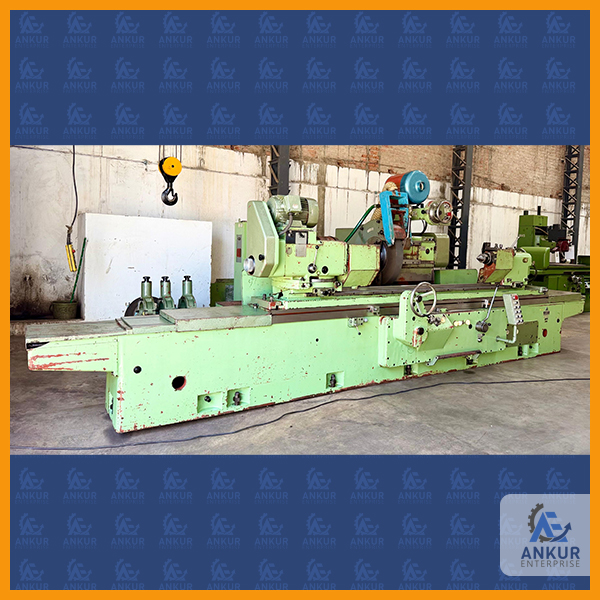

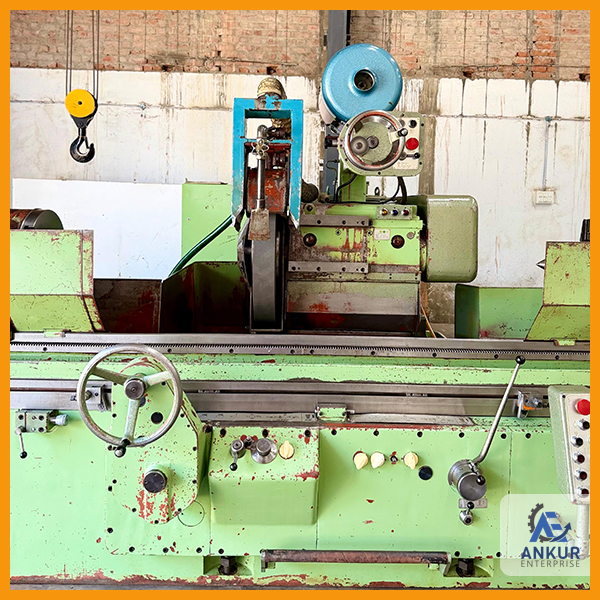

| HEAVY DUTY CYLINDRICAL GRINDER | |

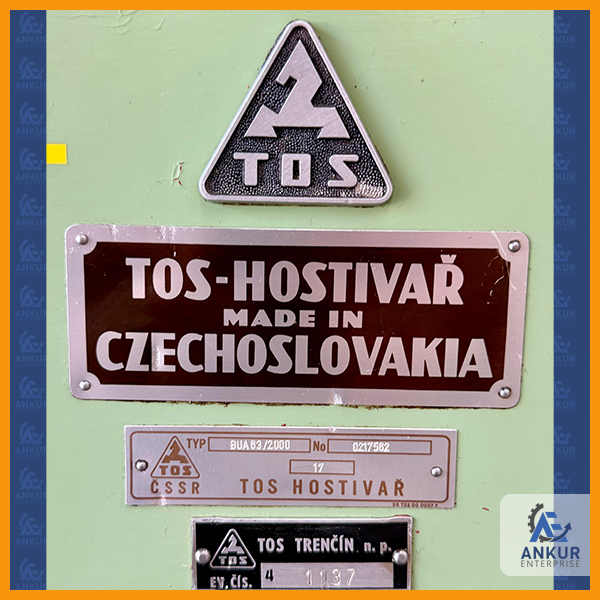

| MAKE | TOS (CZECH REPUBLIC) |
| MODEL | BUA 63 / 2000 |
| CENTER HEIGHT | 315 MM |
| MAX. JOB DIAMETER | 630 MM |
| MAX. LENGTH OF JOB | 2000 MM |

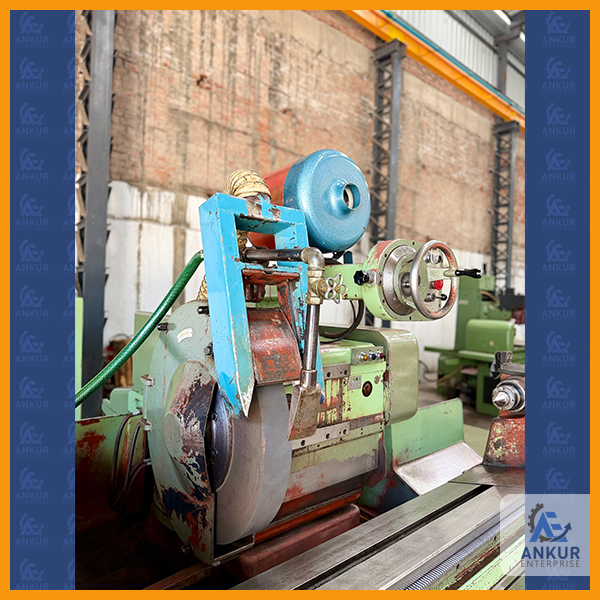

| GRINDING WHEEL SIZE | DIAMETER 750 MM X 100 MM WIDTH |

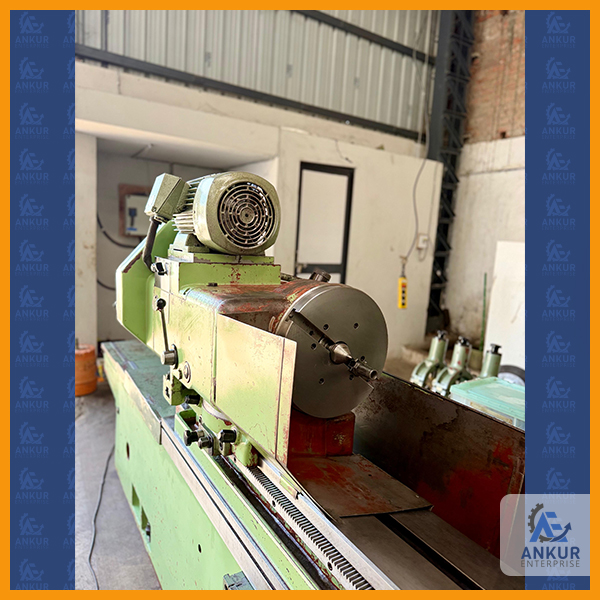

| WORK-HEAD SPEEDS | 9 RPM TO 156 RPM |

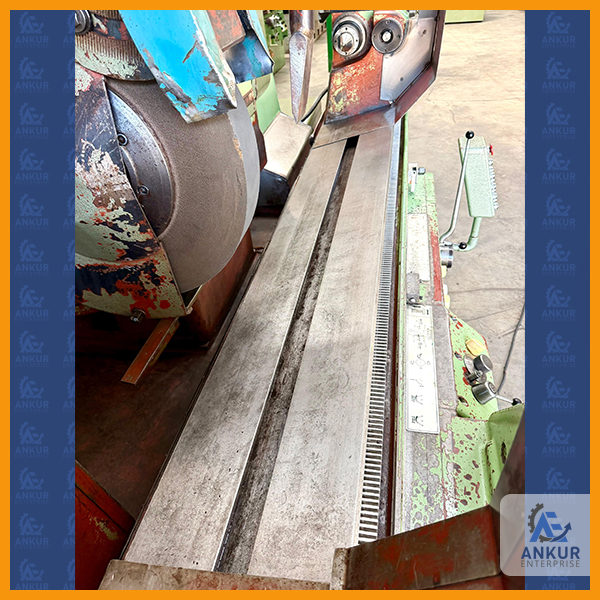

| TABLE ROTATION ANGLE | +6.5 DEGREE TO -6.5 DEGREE |

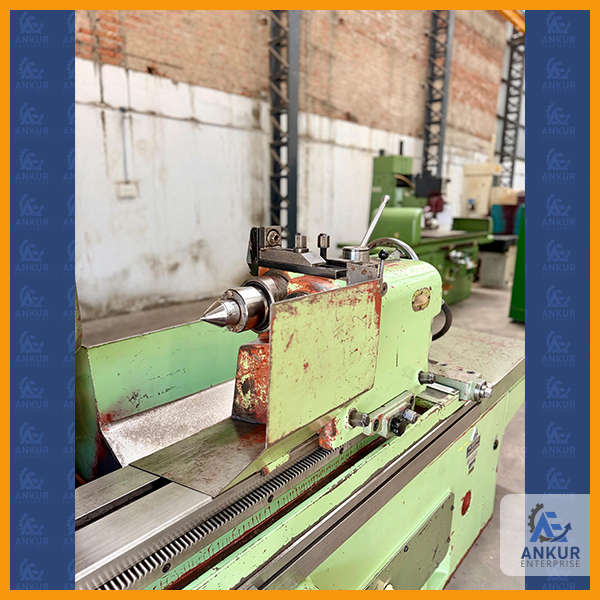

| FEATURES LIKE PLUNGE GRINDING, RAPID TABLE TRAVEL, HYDRAULIC TAIL-STOCK ETC. | |
| FEATURES LIKE AUTO-SLOW, DELAY, AUTO-CUT, AUTO-COMPENSATION ETC. | |
| MOTORISED TRAVEL OF WHEEL-HEAD FOR SETTING PURPOSES. | |
| ROTATION POSSIBLE IN WHEEL-HEAD, WORK-HEAD AND ALSO IN TABLE. | |

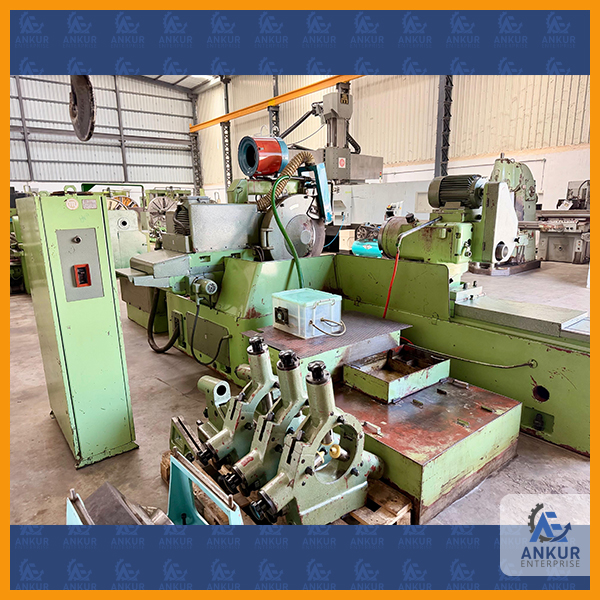

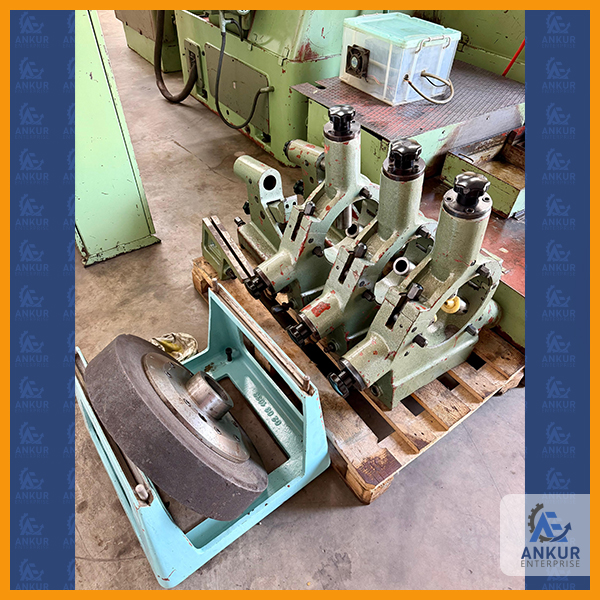

| COMPLETE WITH 3 JOB STEADY. | |
| COMPLETE WITH WHEEL DRESSERS, WHEEL BALANCING STAND, WHEEL FLANGES, WHEELS ETC. | |
| COMPLETE WITH MAGNETIC COOLANT FILTRATION UNIT, COOLANT TANK, PUMP, SPLASH GUARDS ETC. | |

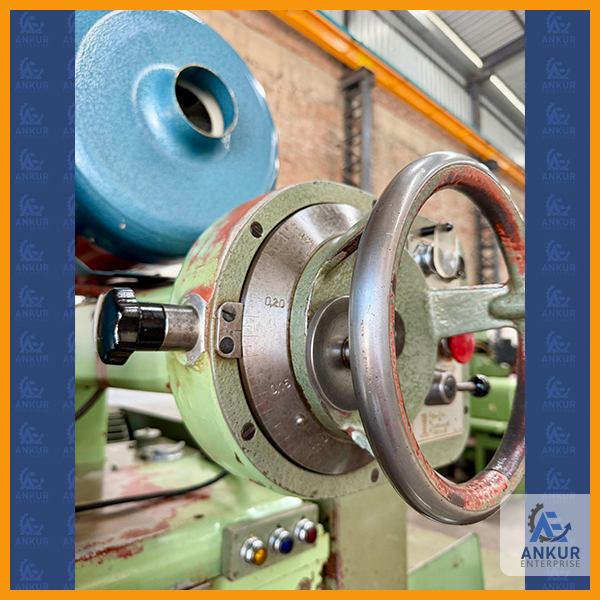

| MICRO-FEED TRAVELS (OF 2 MICRONS/STROKE) IN THE WHEEL-HEAD MOVEMENT |
