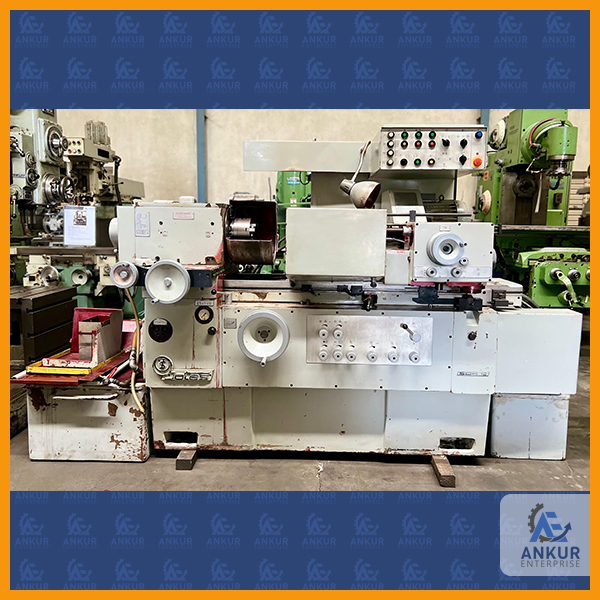

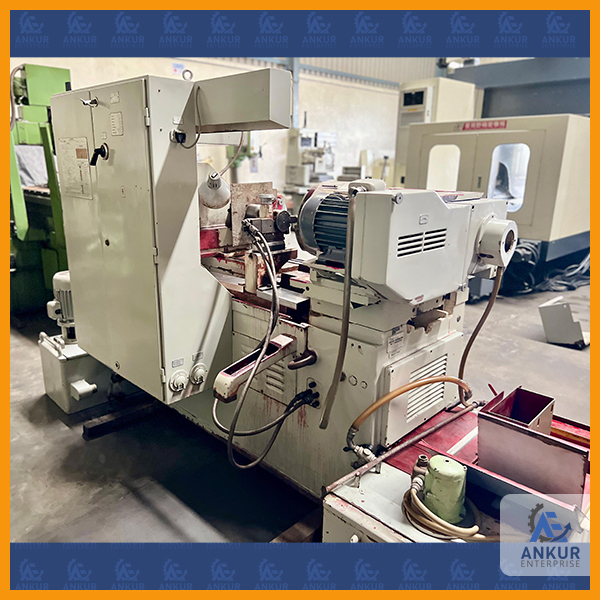

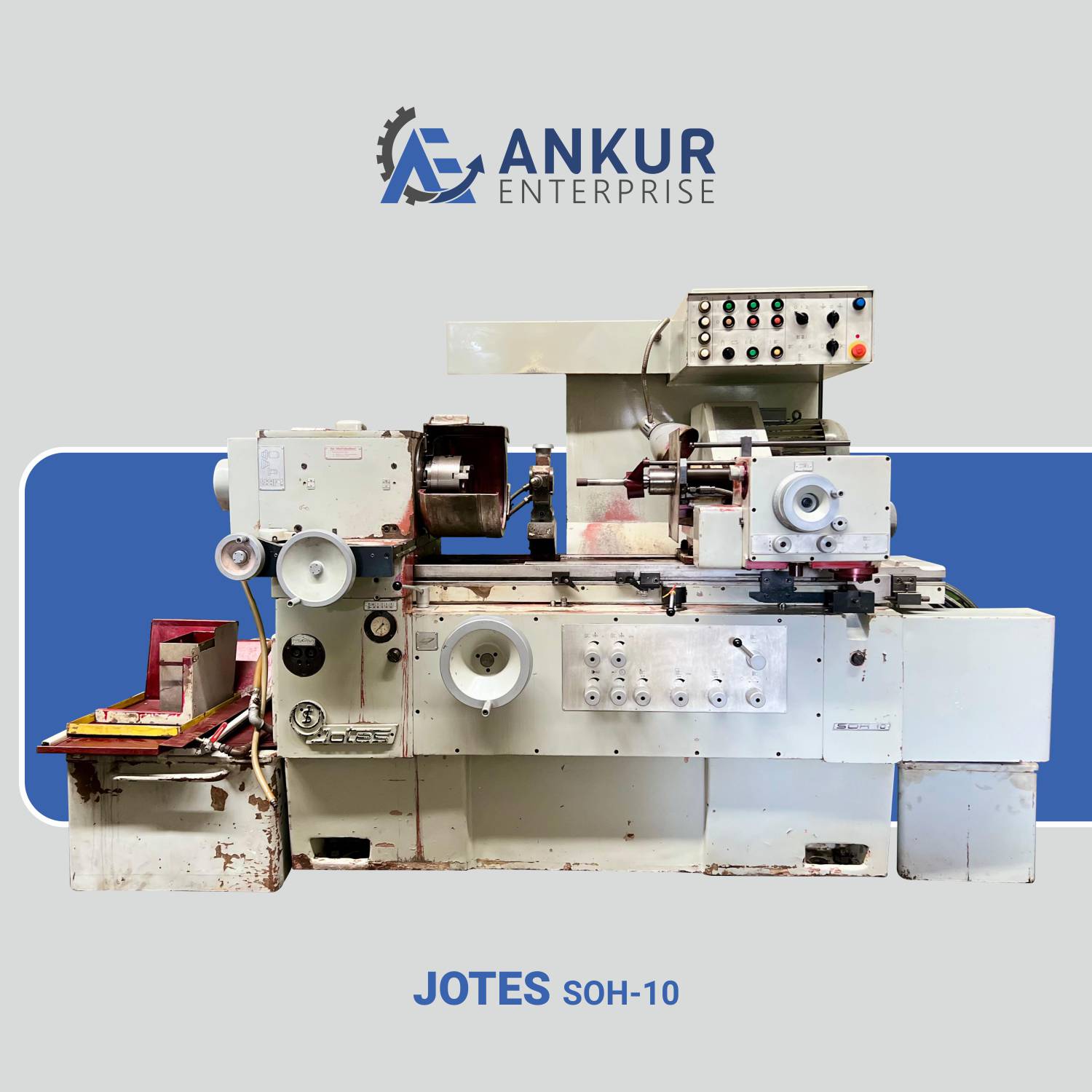

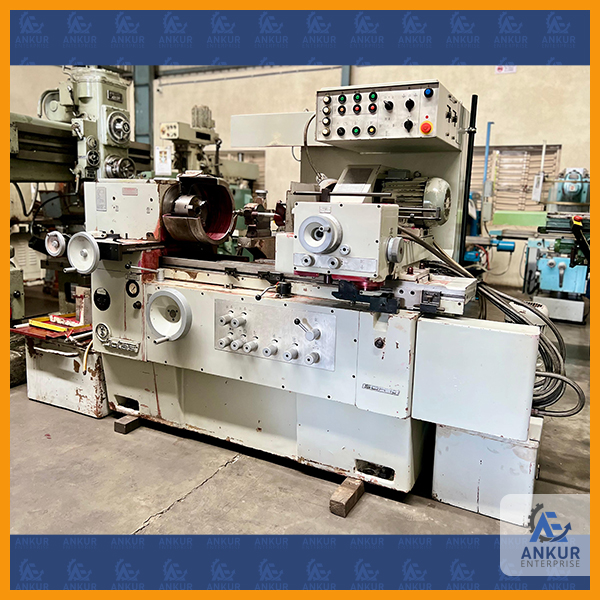

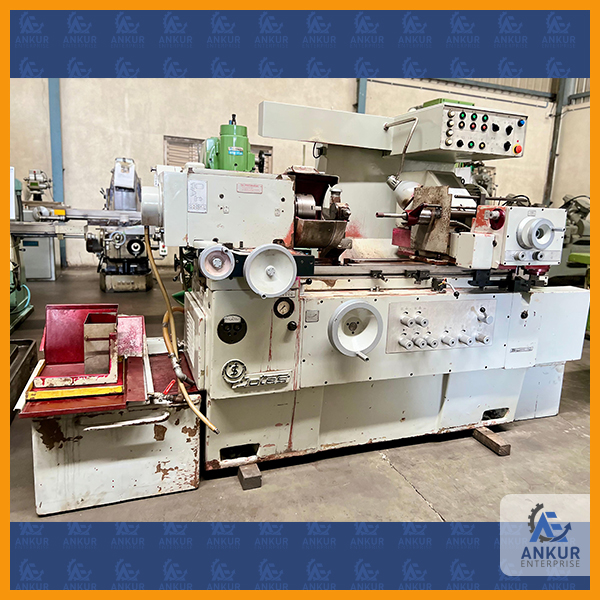

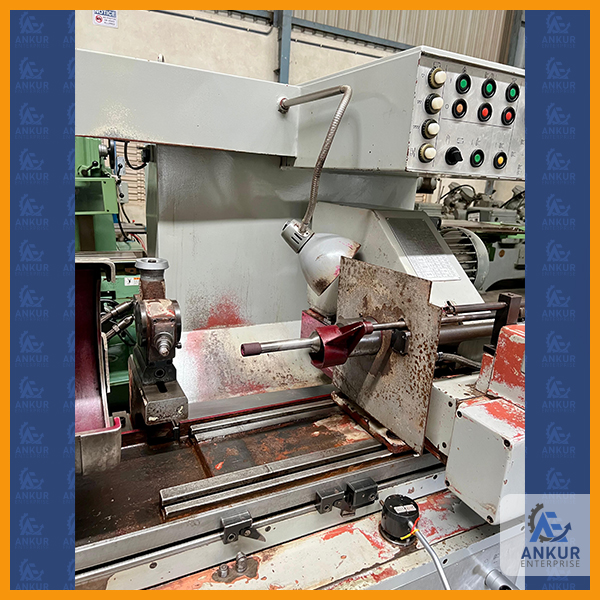

| CYLINDRICAL INTERNAL/ID GRINDER | |
| MAKE | JOTES (POLAND) |
| MODEL | SOH-10 |
| MIN. HOLE DIA. | 10 MM |
| MAX. HOLE DIA. | 100 MM |
| MAX. LENGTH OF HOLE | 160 MM |
| MAX. DIA. WITH COVER | 300 MM |
| MAX. DIA. WITHOUT COVER | 450 MM |
| DISTANCE BETWEEN THE SPINDLE AXIS AND THE TABLE SURFACE | 290 MM |
| MANUAL SPINDLE FEED (1 WHEEL REVOLUTION) | 2.5 MM |
| TRANSVERSE MANUAL SPINDLE FEED (FORWARD) | 50 MM |
| TRANSVERSE MANUAL SPINDLE FEED (BACK) | 180 MM |
| SPINDLE SPEED | 70-700 RPM |
| TURNING ANGLE OF SPINDLE | 15 DEGREE |
| POWER | 11 KVA |
| APPROX. WEIGHT | 3 TON |

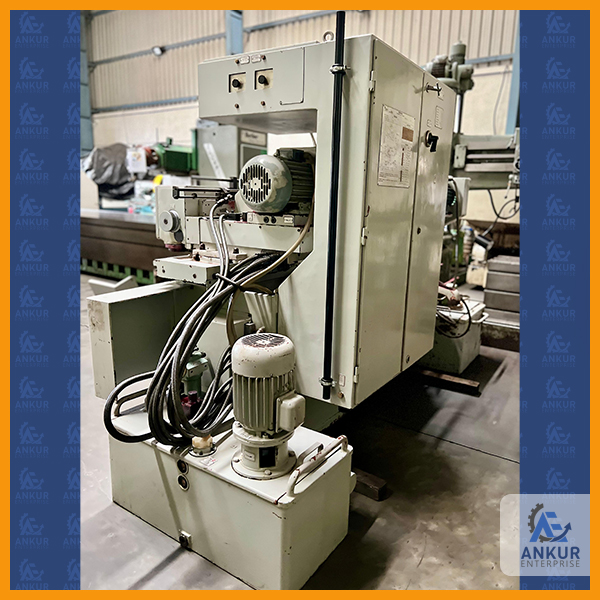

| COMPLETE WITH COOLANT TANK AND PUMP & HYDRAULIC POWER PACK | |
| EQUIPPED WITH HYDRAULIC WHEEL DRESSER |
