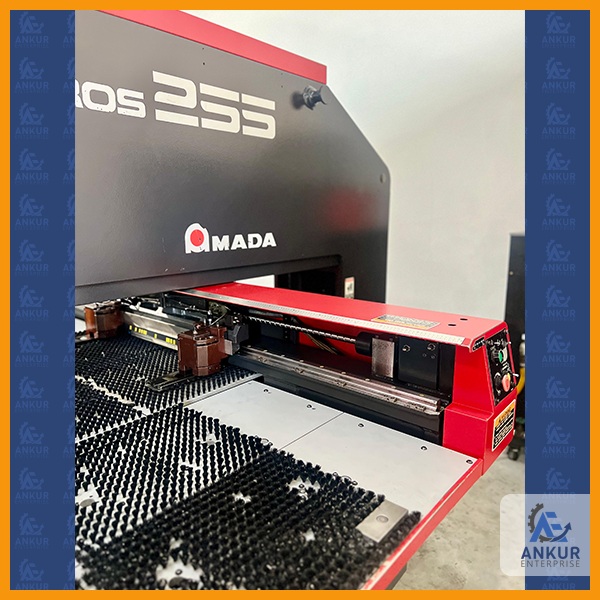

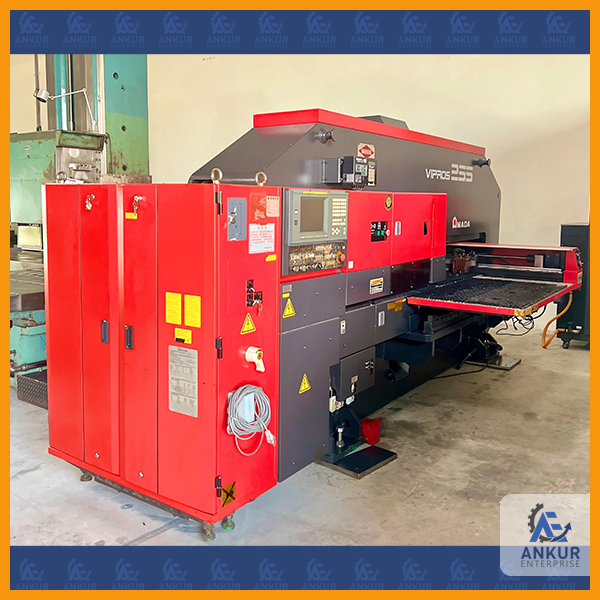

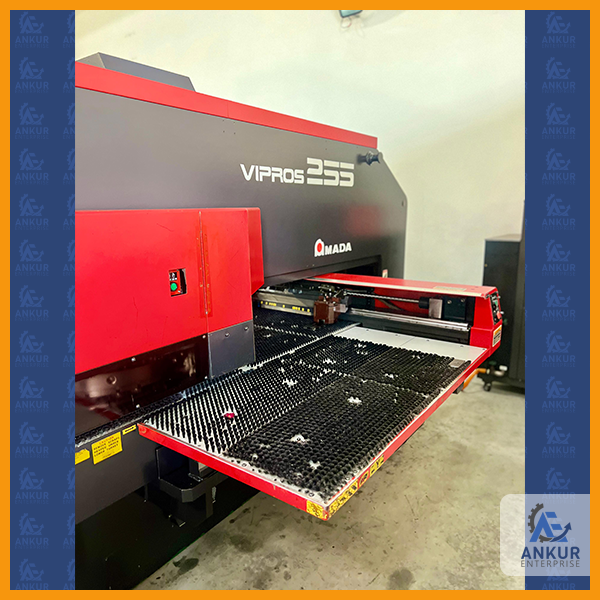

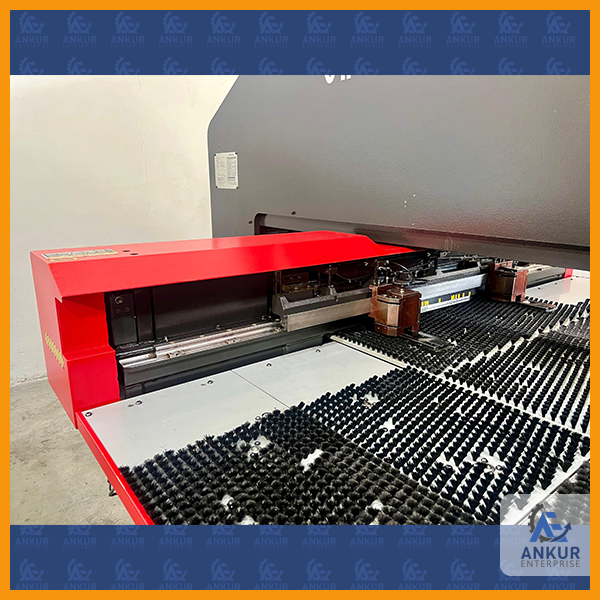

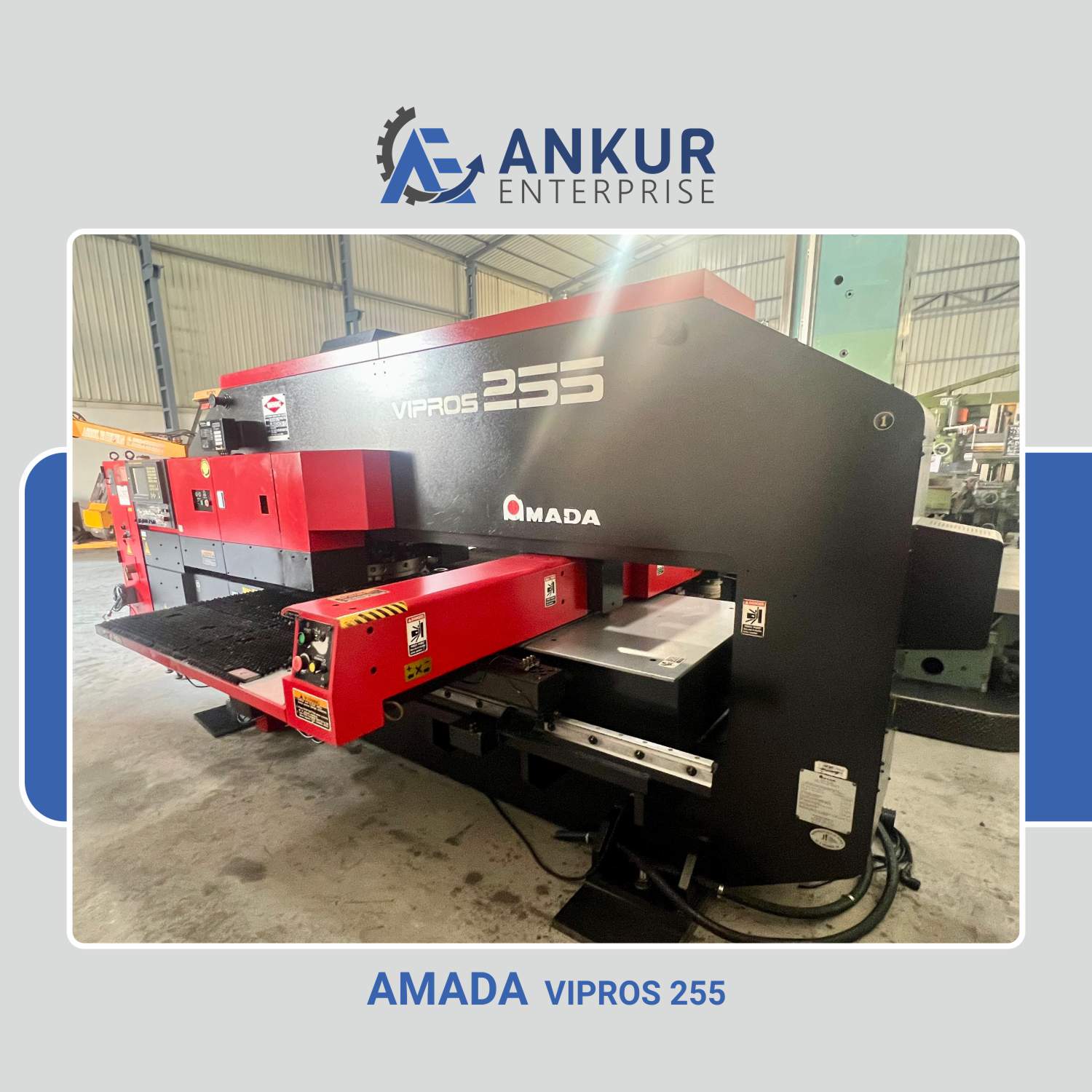

| CNC TURRET PUNCH | |
| MAKE | AMADA (JAPAN) |
| MODEL | VIPROS 255 |
| YEAR | 2005/03 |

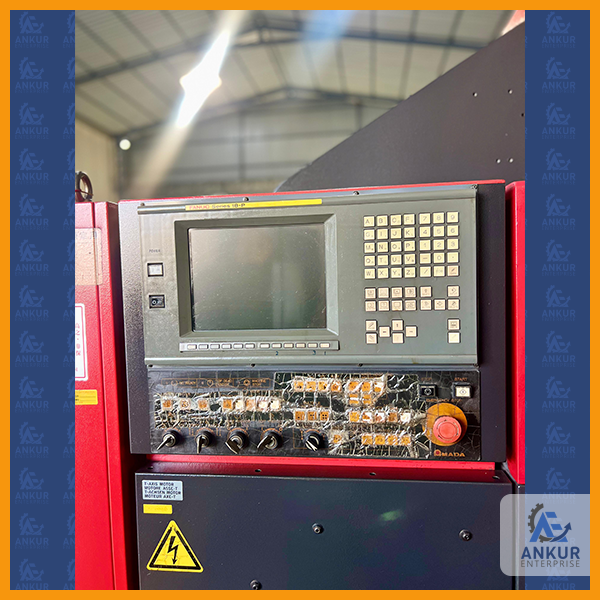

| CONTROL | FANUC 18-P |
| PUNCHING FORCE | 196 KN/ 20 Ton |
| MAXIMUM SHEET THICKNESS | 6 MM |
| X & Y AXIS MOVEMENT | 1270 MM |
| WORKABLE MAX SHEET SIZE | 1270X2540 MM |
| MAX. MATERIAL WEIGHT | 100 KG |
| MAX. HOLE DIA. | 88.9 MM |
| NUMBER OF INDEX | 3 |

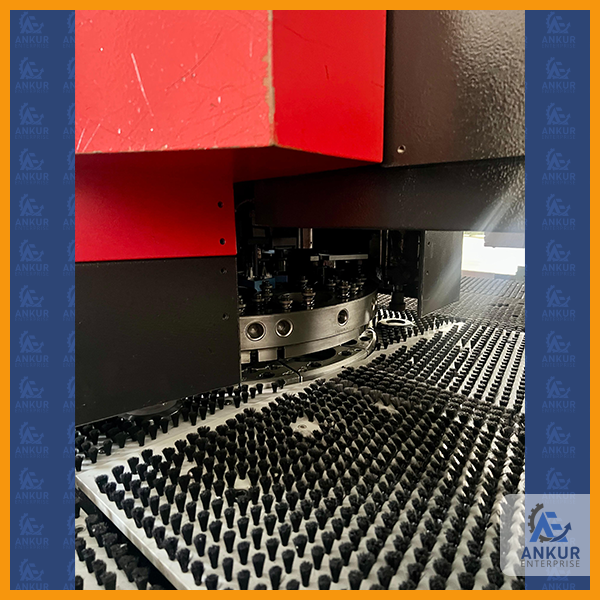

| NUMBER OF STATIONS | 31 |
| TURRET SPEED BI-DIRECTIONAL | 35 RPM |
| RAM STROKE LENGTH | 40 MM |
| AXIS SPEED X/Y | 82 M/MIN |
| MAIN ELECTRONIC CONNECTION | 400 V / 50 HZ |
| POWER CONSUMPTION | 27 KVA |
| OVERALL DIMENSIONS OF MACHINE | |
| WIDTH | 5000 MM |
| DEPTH | 1800 MM |
| HEIGHT | 2300 MM |
| MACHINE WEIGHT | 9800 KG |
