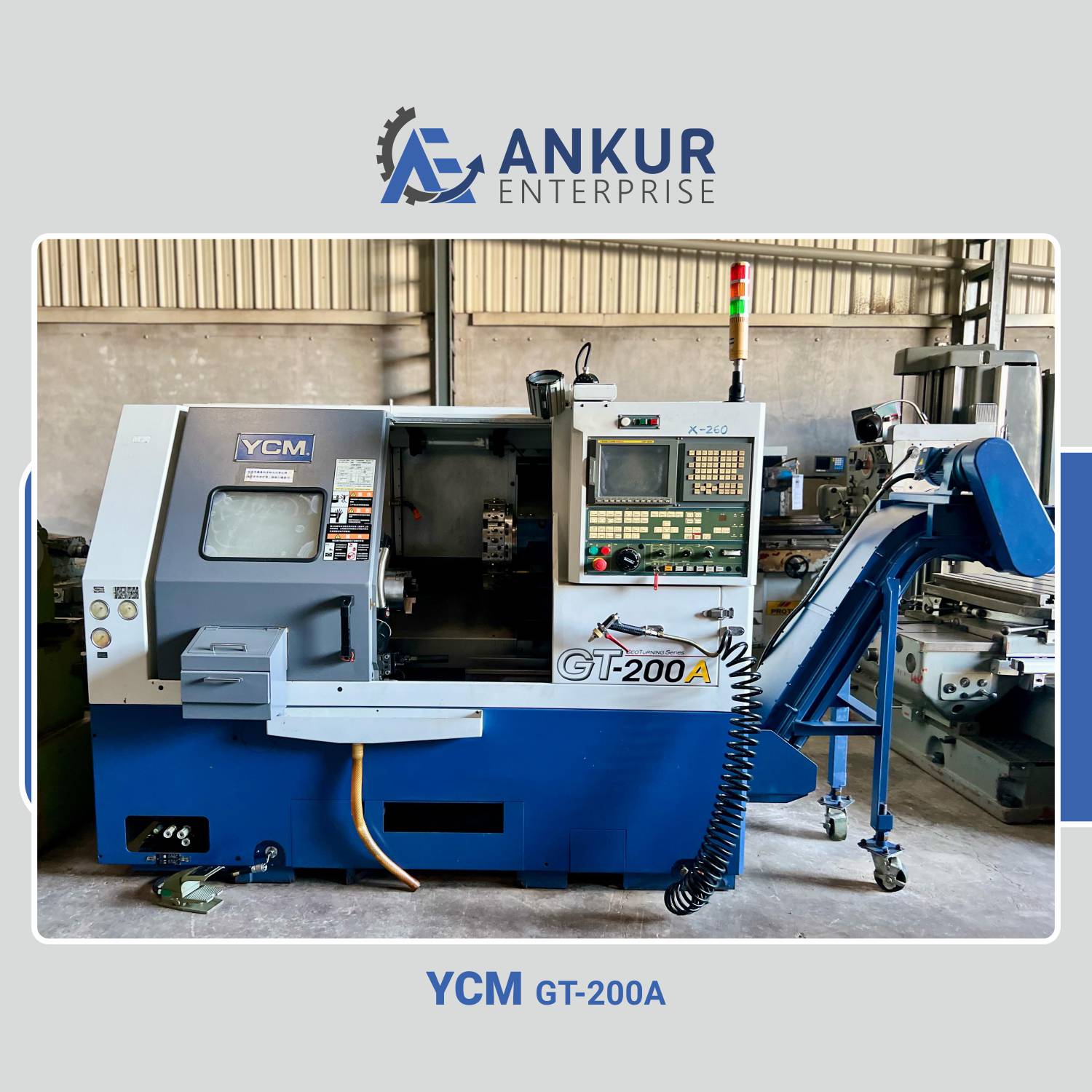

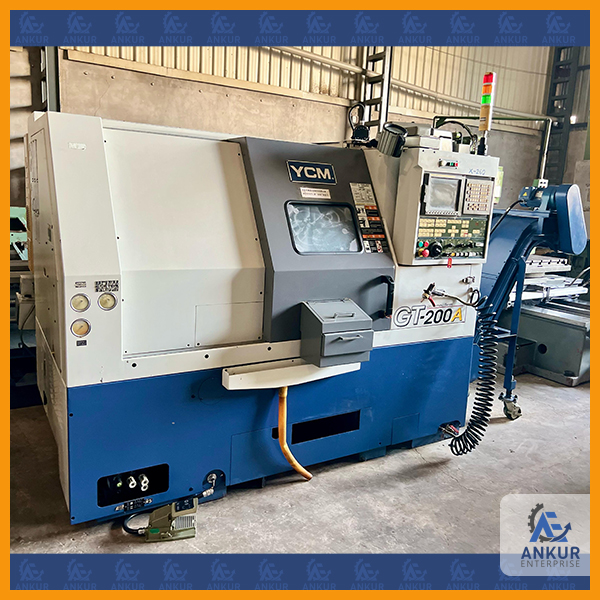

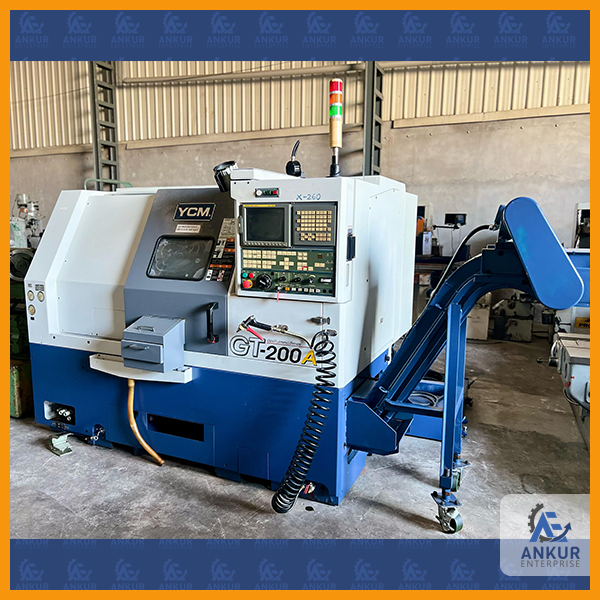

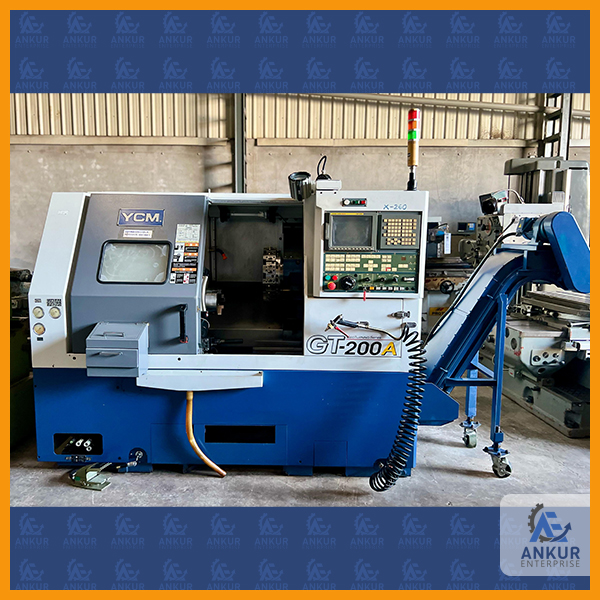

| CNC TURNING | |

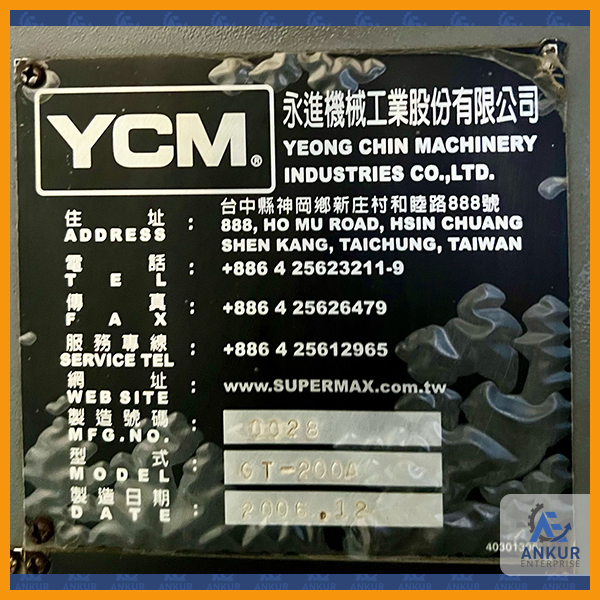

| MAKE | YCM (TAIWAN) |
| MODEL | GT-200A |
| YEAR | 2006/12 |

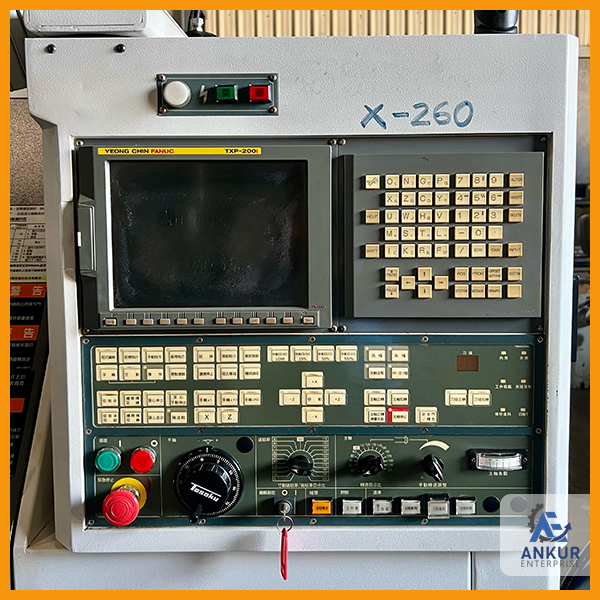

| CONTROL | FANUC TXP-200I |
| SWING OVER BED | 500 MM |
| SWING OVER CARRIAGE | 330 MM |
| MAX. TURNING DIA. | 260 MM |
| MAX. TURNING LENGTH | 360 MM |
| DISTANCE BETWEEN CENTER | 512 MM |

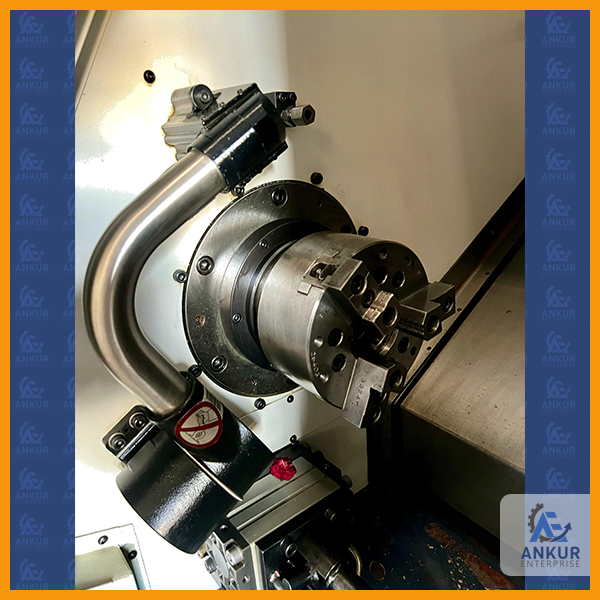

| CHUCK DIA. | 160 MM |
| SPINDLE NOSE | A2-5 |
| HOLE THROUGH SPINDLE DIA. | 56 MM |
| SPINDLE SPEED | 6000 RPM |
| X AXIS TRAVEL | 150 MM |
| Z AXIS TRAVEL | 360 MM |

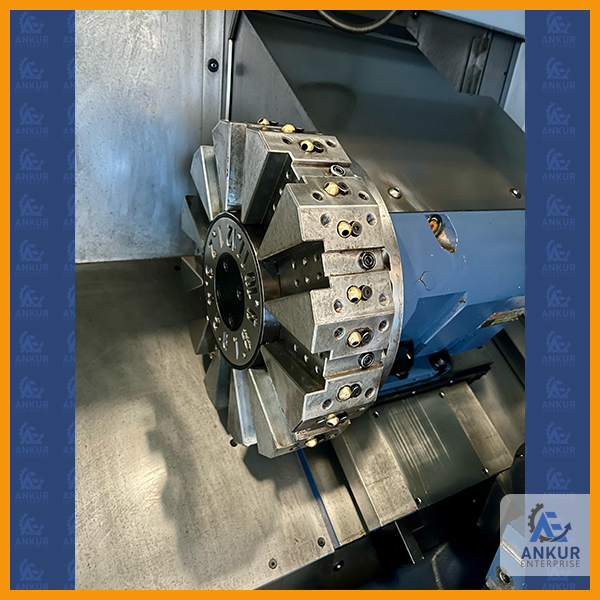

| TURRET TOOL MAGAZINE CAPACITY | 12 |

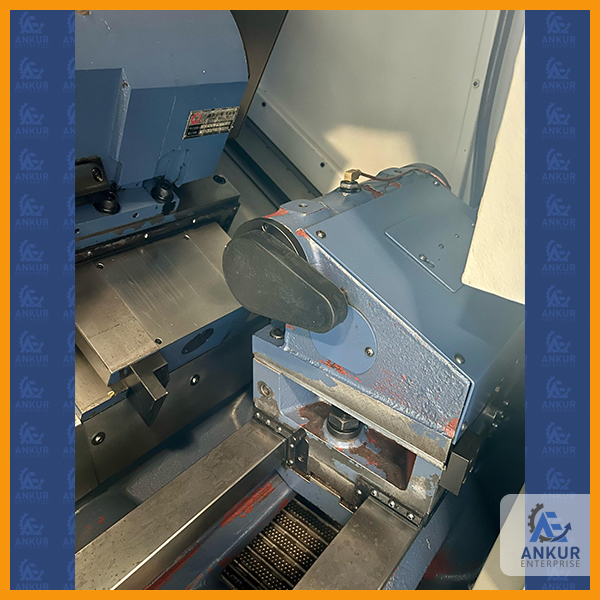

| TAILSTOCK STROKE | 260 MM |
| APPROX. WEIGHT | 4200 KG |
