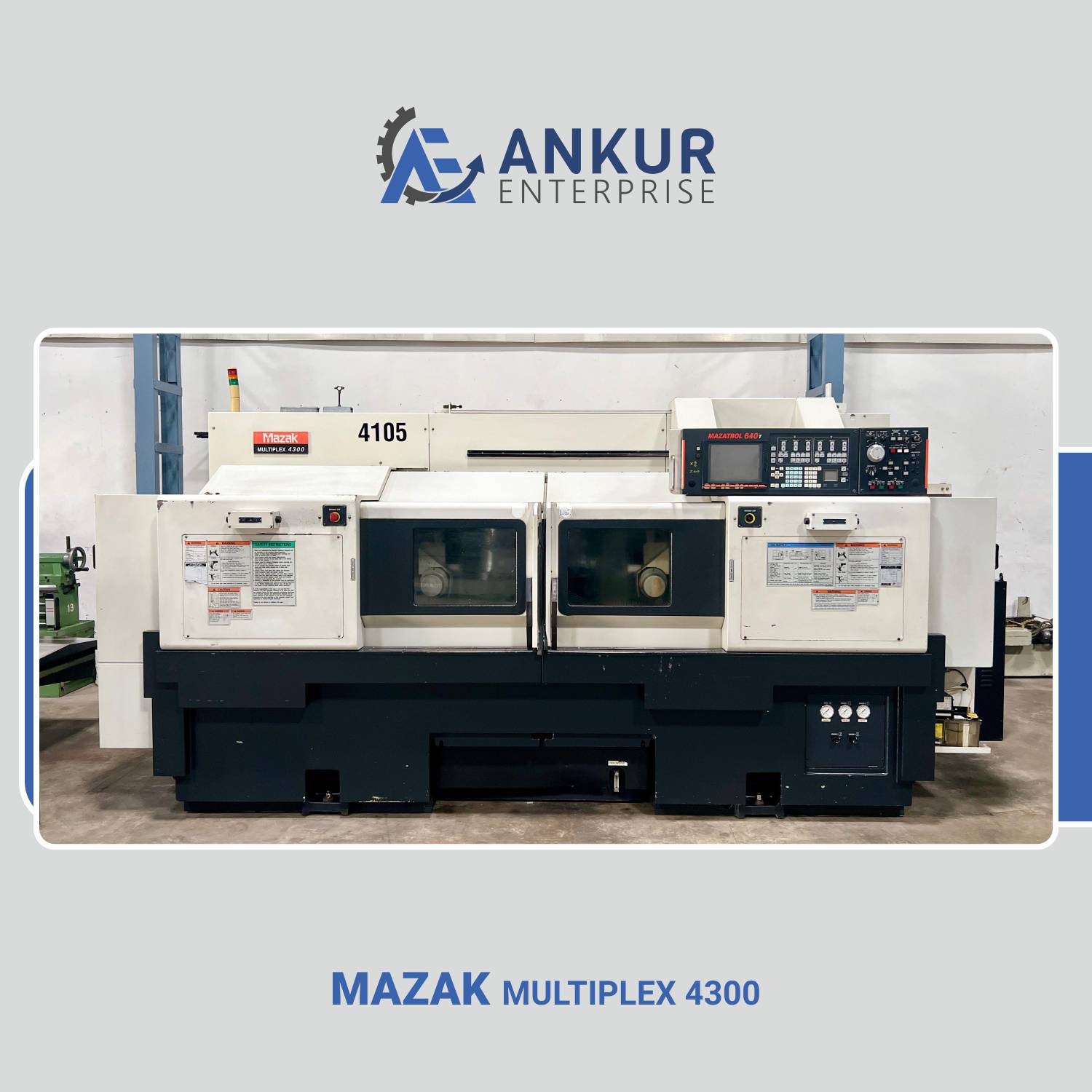

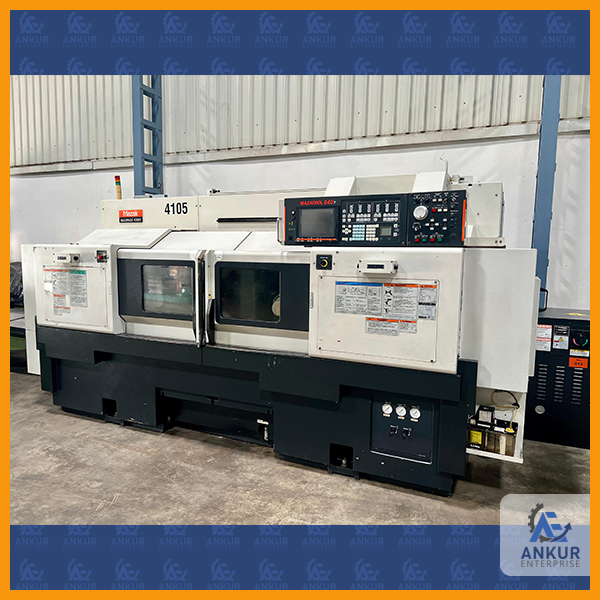

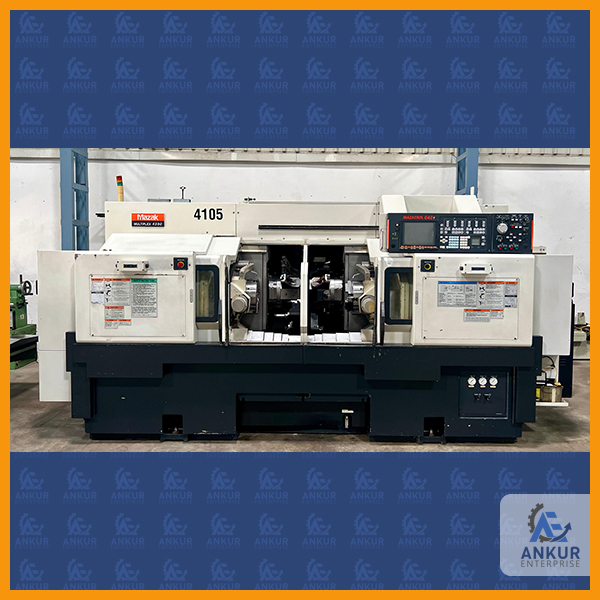

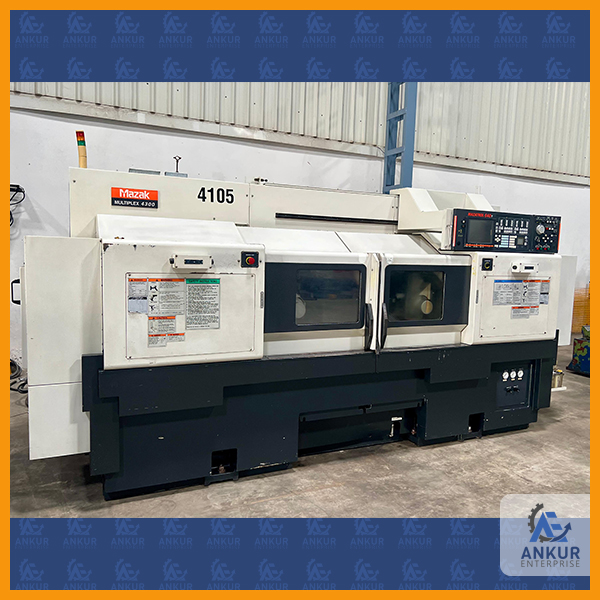

| DUAL SPINDLE 4 AXIS CNC TURNING CENTER | |

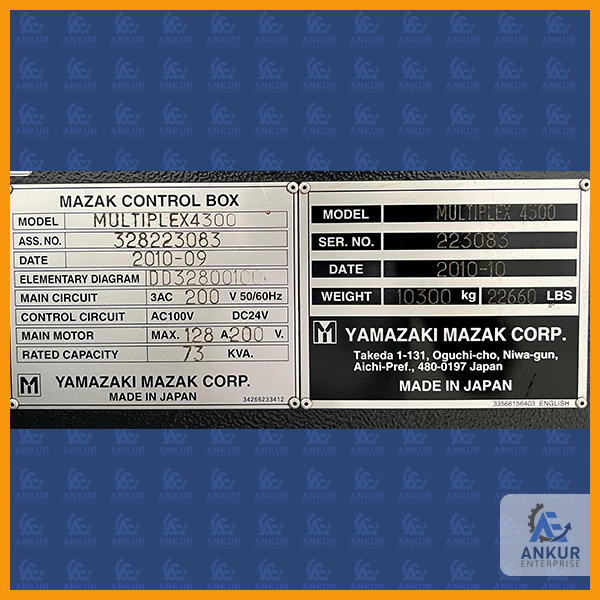

| MAKE | MAZAK (JAPAN) |

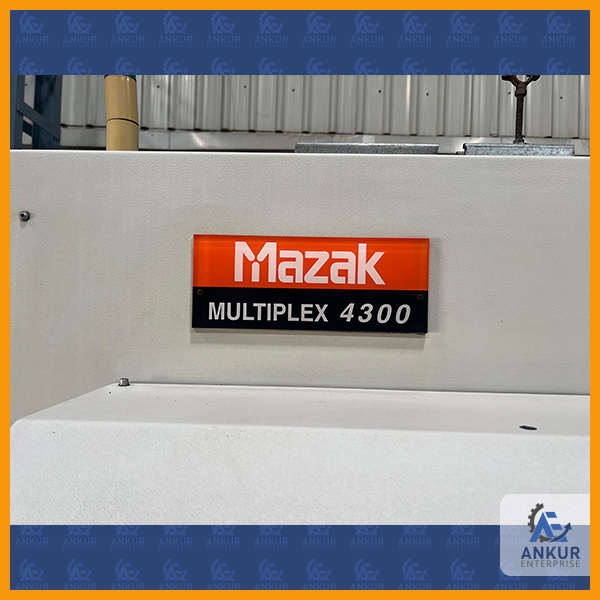

| MODEL | MULTIPLEX 4300 |
| YEAR | 2010 |

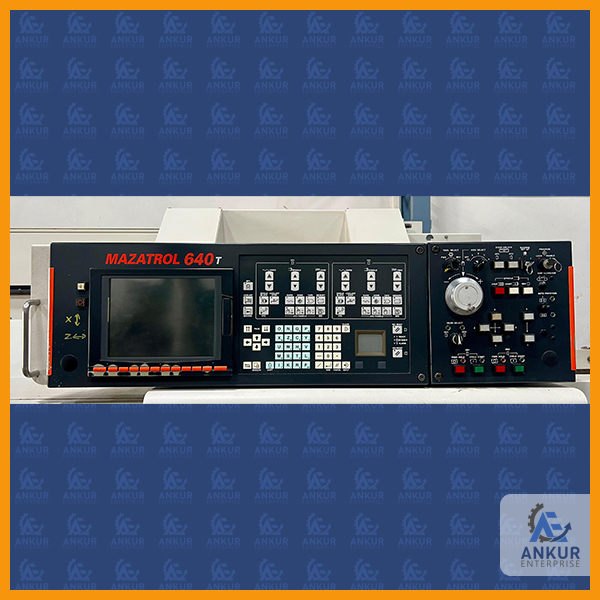

| CONTROL | MAZATROL 640T |
| NOMINAL MAIN SPINDLE TURNING DIAMETER | 228 MM |
| MAX MAIN SPINDLE TURNING DIAMETER | 429 MM |
| NOMINAL TURNING LENGTH | 223 MM |
| MAX TURNING LENGTH | 559 MM |
| MAX SWING | 559 MM |
| CHUCK DIAMETER STANDARD | 250 MM |
| CHUCK DIAMETER MAX | 300 MM |
| SPINDLE BORE | 89 MM |
| BAR CAPACITY | 76 MM |
| SPINDLE NOSE | A2-8 |
| SPINDLE SPEEDS | 35-4000 RPM |
| DRIVE MOTOR | 30 HP |
| TURRET | 12 POSITION |
| RAPID TRAVERSE RATE | 945 IPM |
| TRAVELS X1 & X2 (STD.) | 309 MM |
| TRAVELS Z1 & Z2 (STD.) | 604 MM |
| EQUIPPED WITH: | |

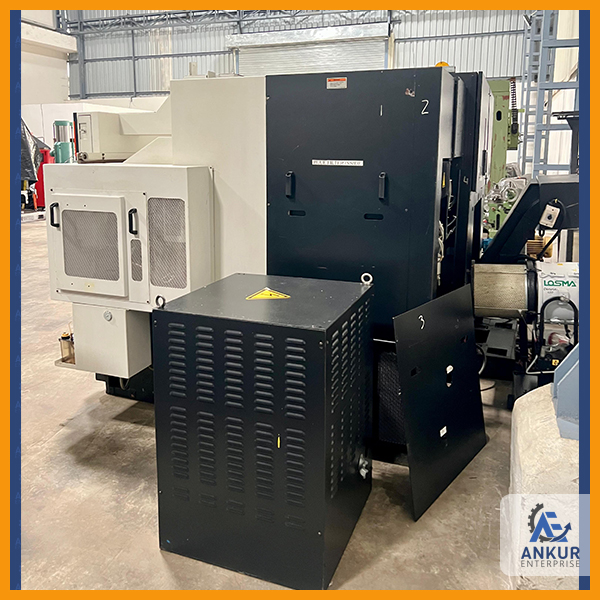

| (2) COLLET CHUCKS, CHIP CONVEYOR, TOOL PRESETTERS |
