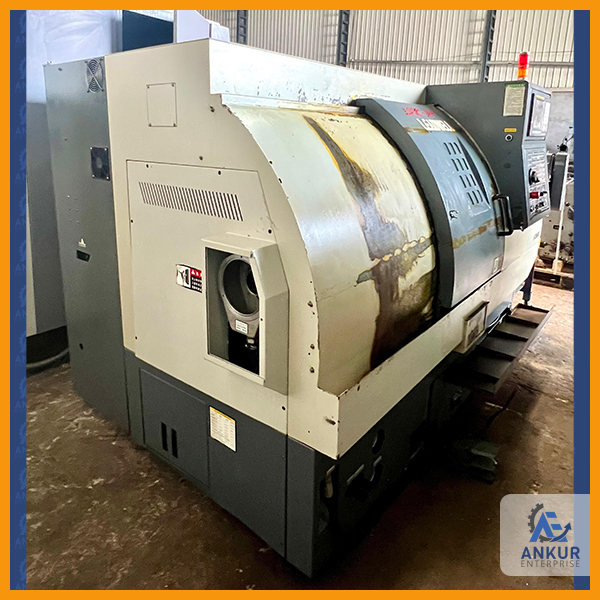

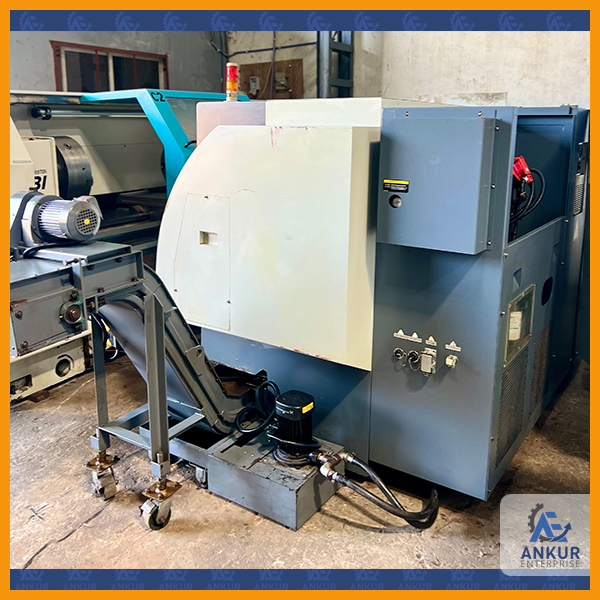

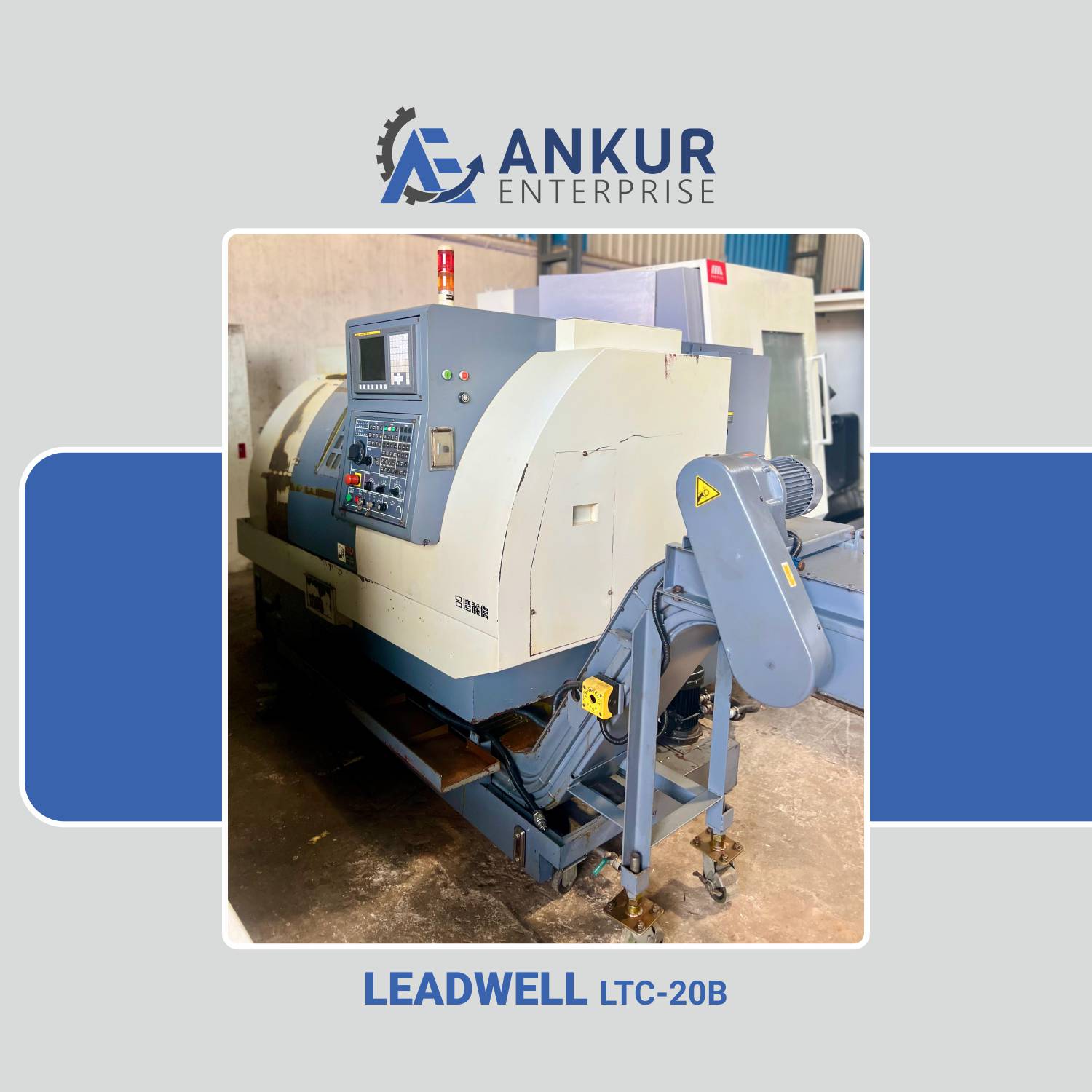

| CNC TURNING | |
| MAKE | LEADWELL (TAIWAN) |
| MODEL | LTC-20B |
| YEAR | 2012/6 |
| CONTROL | FANUC Oi Mate-TD |

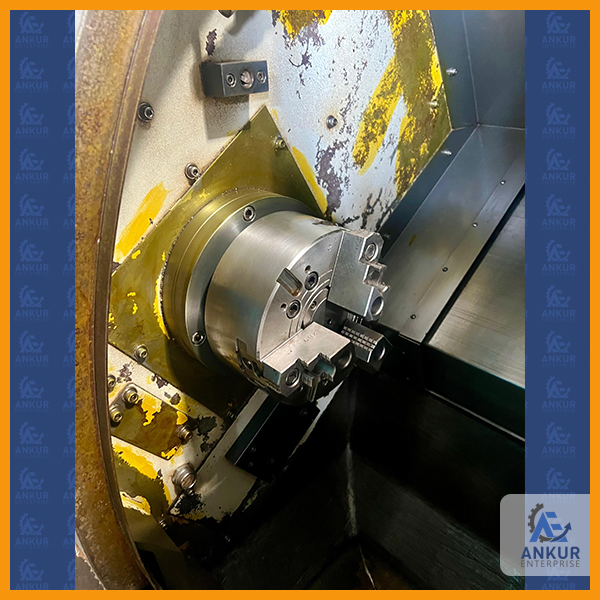

| CHUCK DIA. | 200 MM |
| TURNING LENGTH | 500 MM |
| TURNING DIA. | 320 MM |
| TURNING DIA. ABOVE BED | 450 MM |
| TURNING DIA. ABOVE TRANSVERSING SLIDE | 460 MM |
| LENGTH BETWEEN CENTER | 640 MM |
| X AXIS | 160 MM |
| Z AXIS | 540 MM |

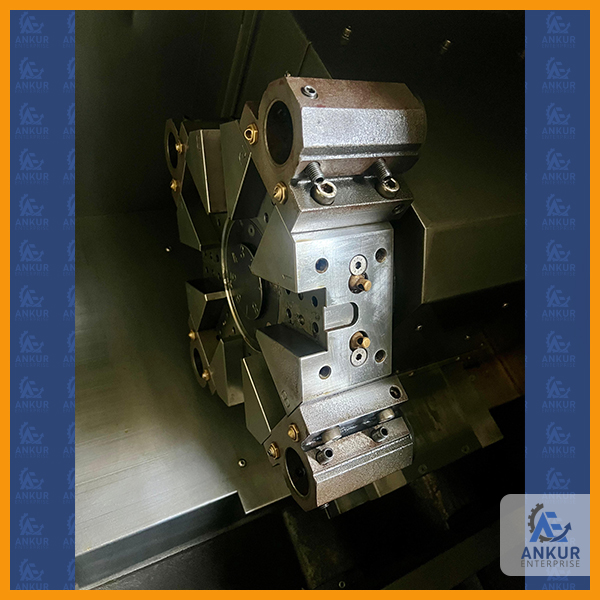

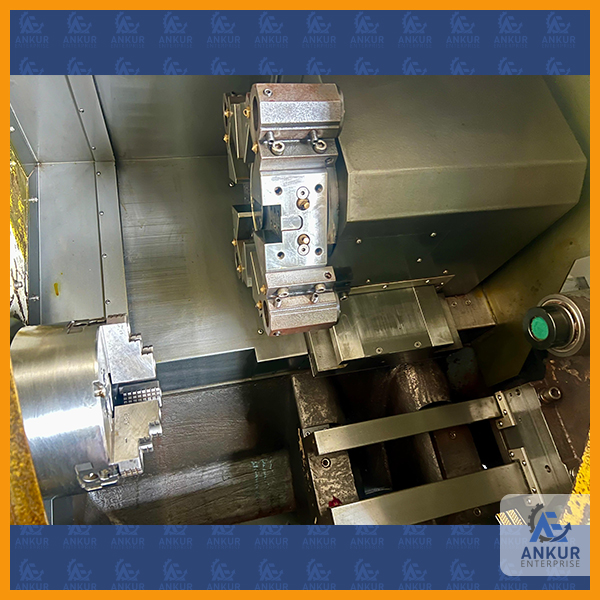

| NO. OF TOOL STATION | 8 |
| TURNING SPEED | 4000 RPM |
| BAR CAPACITY | 65 MM |
| SPINDLE NOSE | A2-6 |
| APPROX. WEIGHT | 4 TON |
