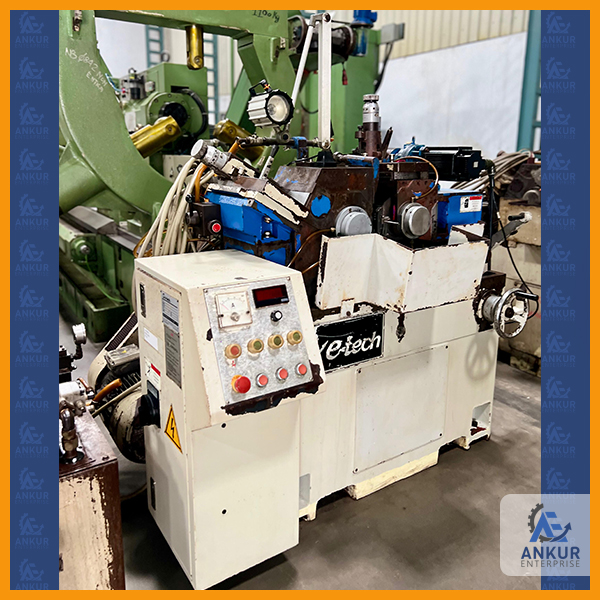

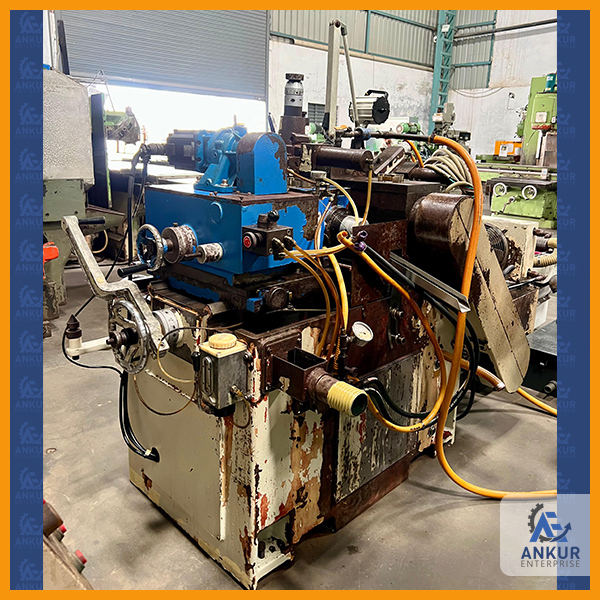

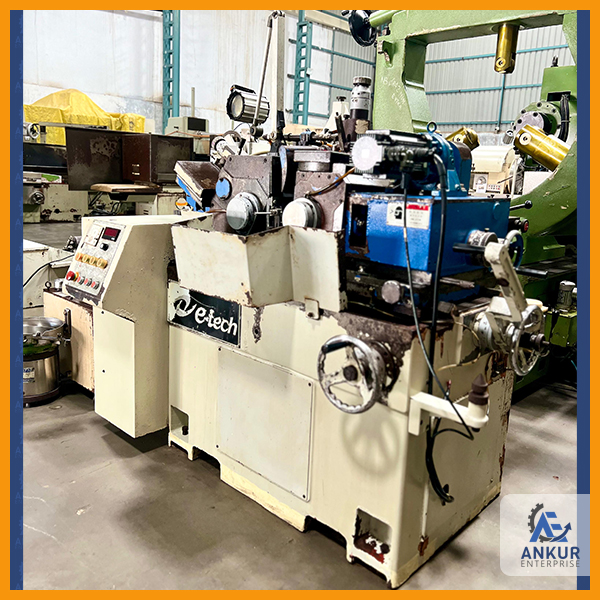

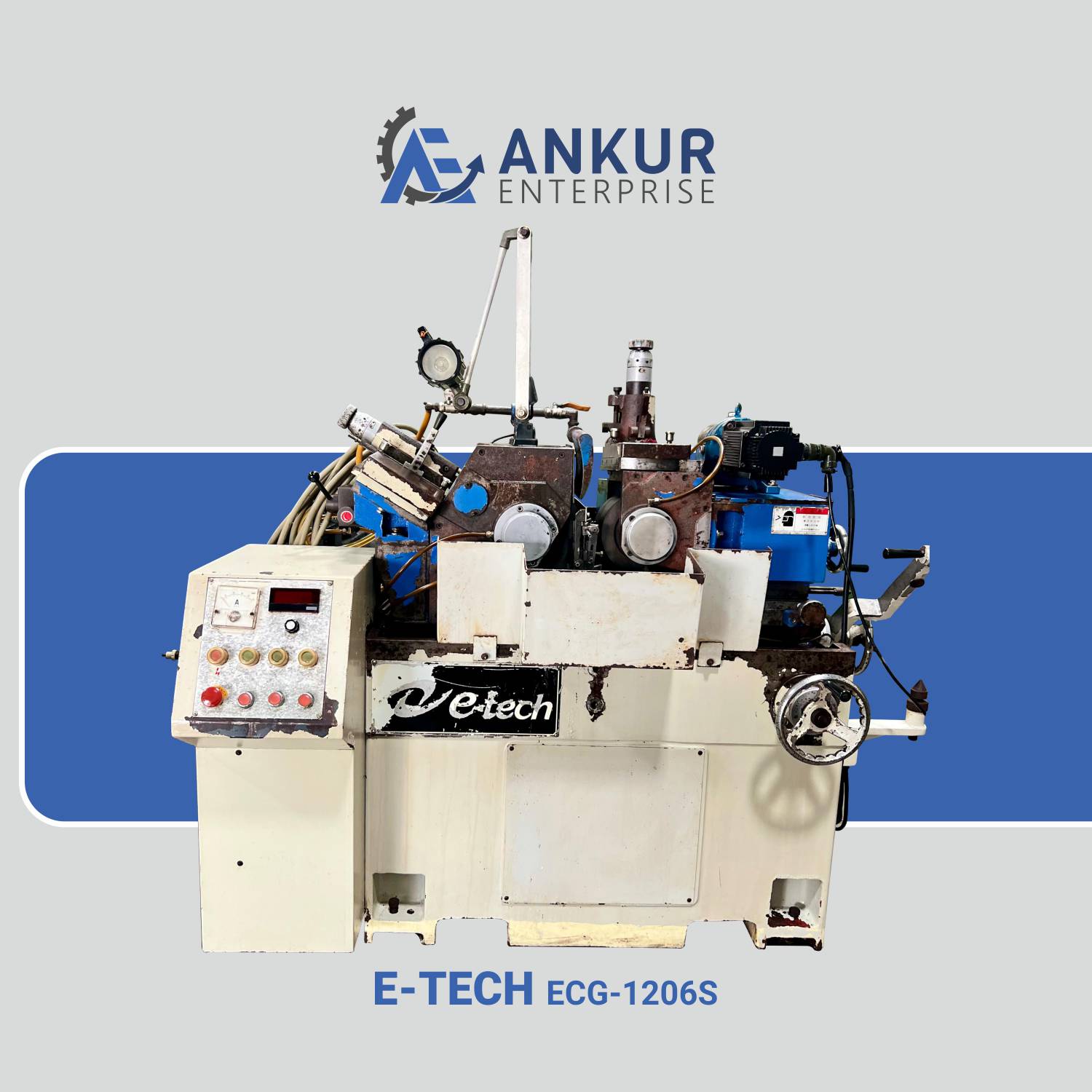

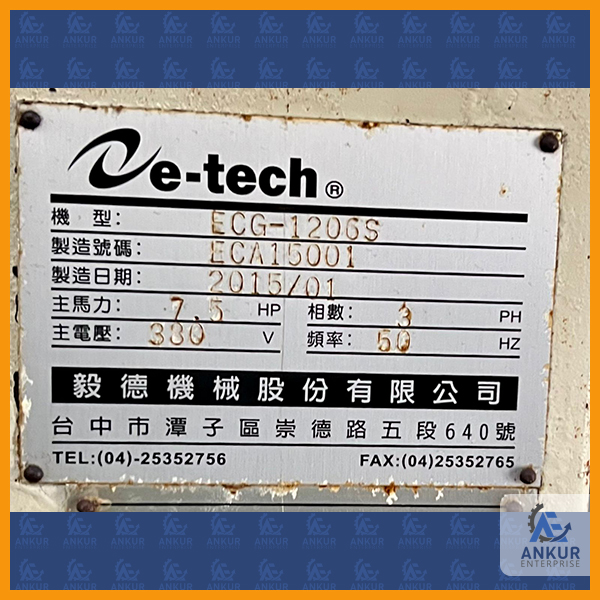

| PRECISION CENTERLESS GRINDER | |
| MAKE | E-TECH (TAIWAN) |
| MODEL | ECG-1206S |
| YEAR | 2015/01 |
| GRINDING CAPACITY: | |
| WORK DIA.(W/STD. WORKREST) | 1-30 MM |
| WORK DIA. (W/SPECIAL WORKREST) | 30-50 MM |

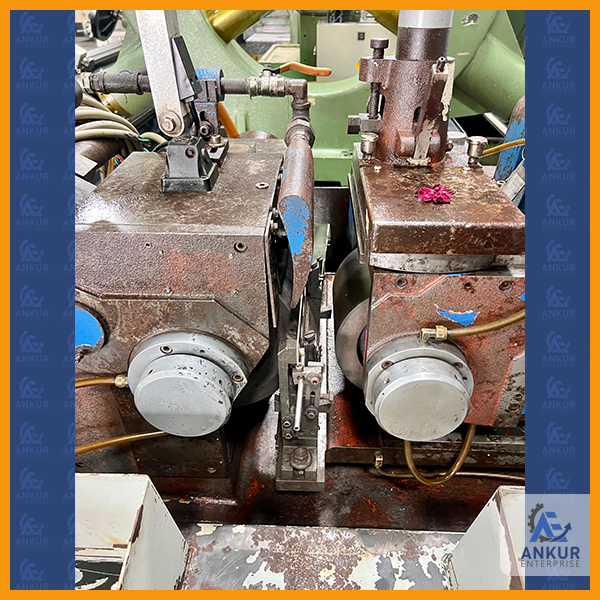

| GRINDING WHEEL: | |
| GRINDING WHEEL SIZE | 305X150X120 MM (ODXWXID) |
| SPINDLE SPEED | 2080 RPM |
| DRESSING INCREMENT PER GRA./REV. | 0.01/1.5 MM |
| REGULATING WHEEL: | |
| WHEEL SIZE | 205X150X90 MM (ODXWXID) |
| SPINDLE SPEED | 15-310 RPM |
| UPPER SLIDE INFEED HAND WHEEL PER GRA./REV. | 0.02/4 MM |
| SWIVELLING ANGLE (L/R) | +-5 DEGREE |
| INCLINING ANGLE (F/R) | +5 TO -3 DEGREE |
| LOWER SLIDE INFEED HAND WHEEL PER GRA./REV. | 0.05/7 MM |
| LOWER SLIDE MICRO INFEED HAND WHEEL PER GRA./REV. | 0.001/0.2 MM |

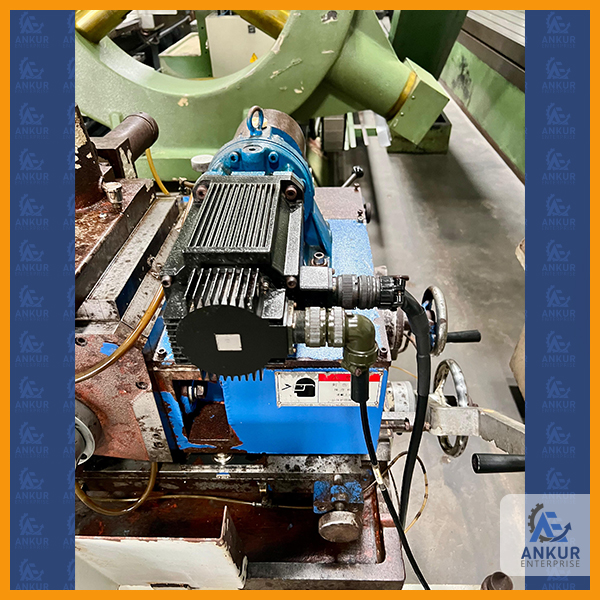

| REGULATING WHEEL MOTOR | 2 KW |

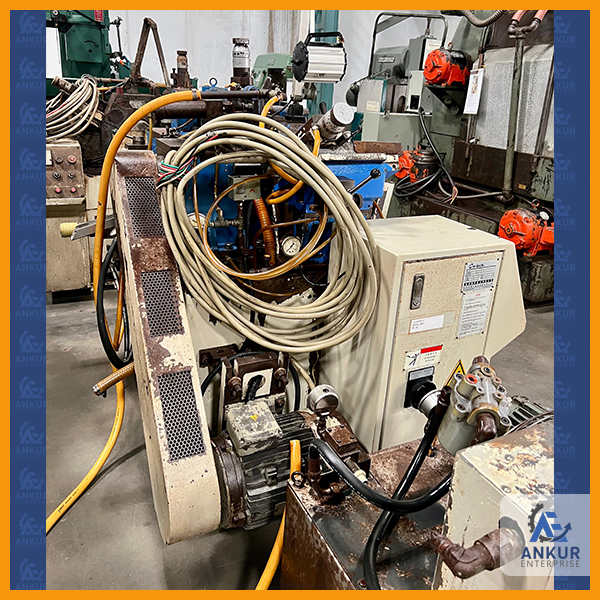

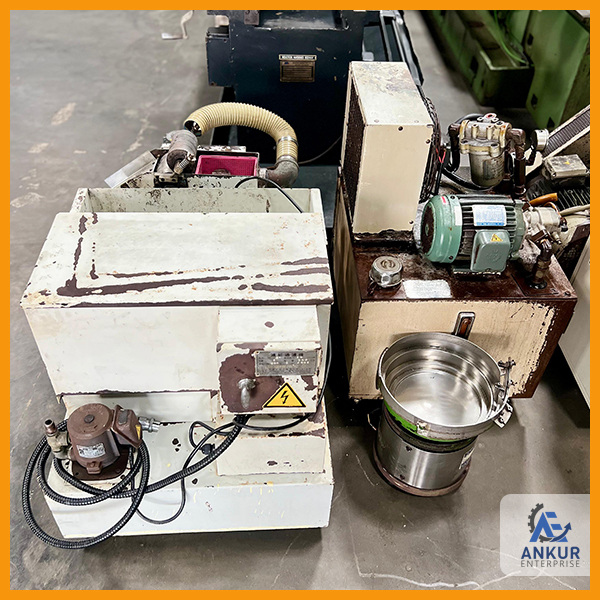

| HYDRAULIC MOTOR | 0.75 KW |
| APPROX. WEIGHT | 2200 KG |
