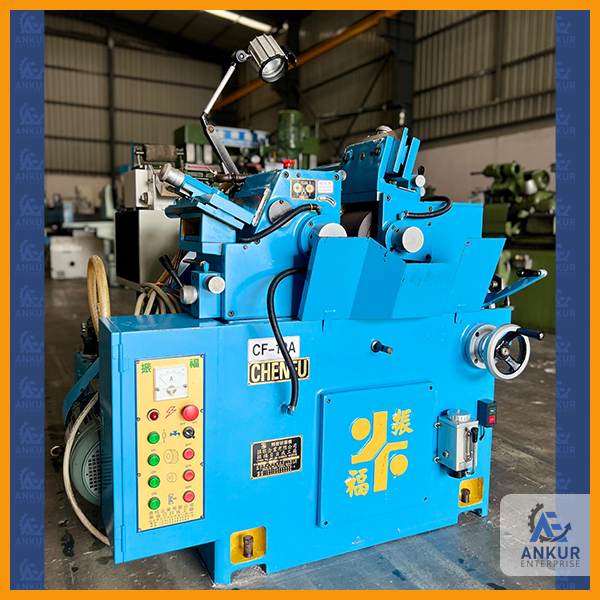

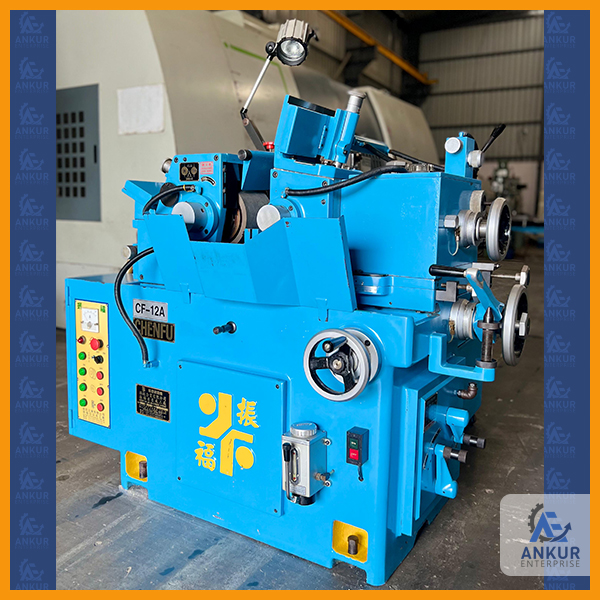

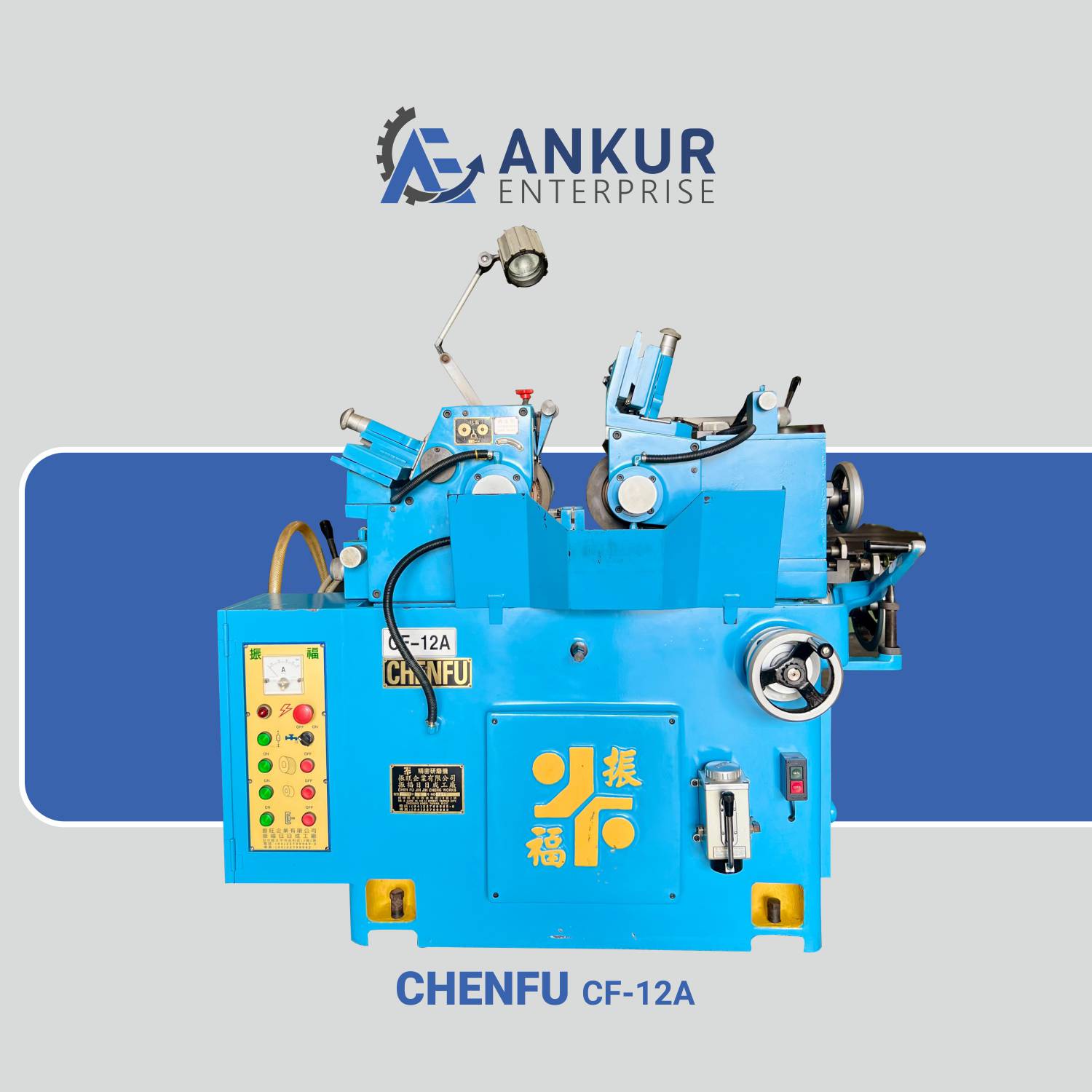

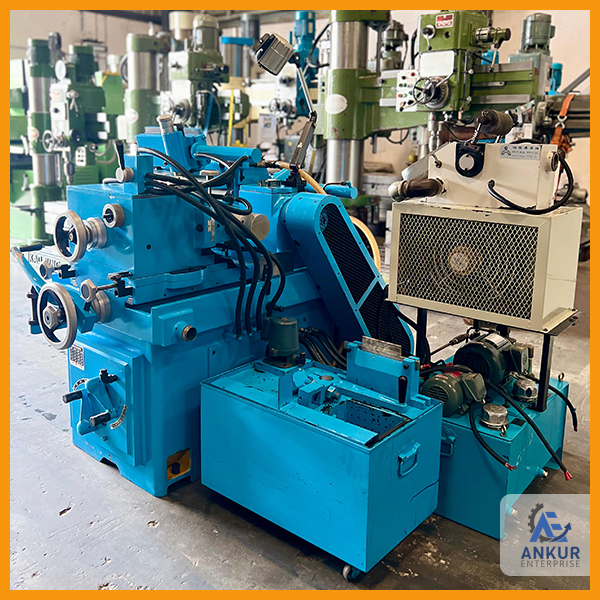

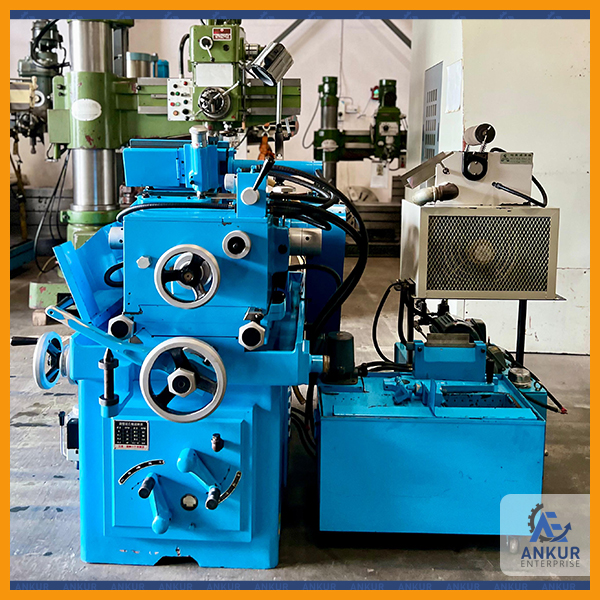

| TWIN GRIP PRECISION CENTERLESS GRINDER | |

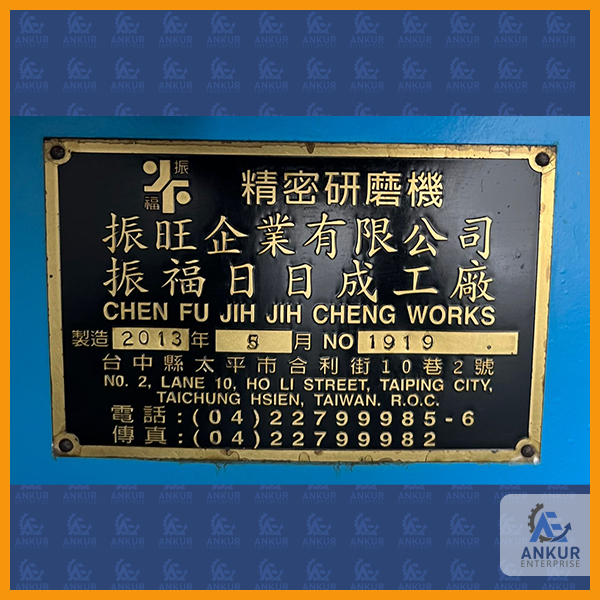

| MAKE | CHENFU (TAIWAN) |
| MODEL | CF-12A |
| YEAR | 2013 |
| STD. THRUFEED AND INFEED WORK REST | 1 TO 50 MM O.D. |
| GRINDING WHEEL | 305X150 MM |
| REGULATING WHEEL | 205X150 MM |
| REGULATING WHEEL SPEED | 19-360 RPM (7 STEPS) |
| GRINDING WHEEL SPEED | 2200 RPM |
| GRINDING WHEEL MOTOR | 5 HP |
| REGULATING WHEEL MOTOR | 1 HP |

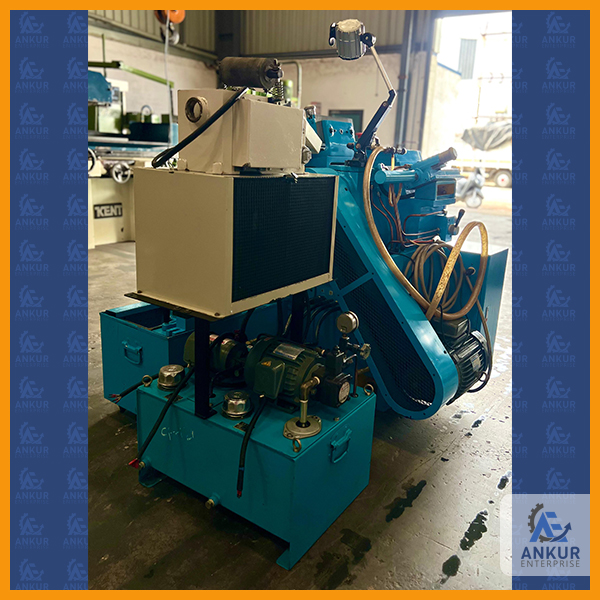

| HYDRAULIC POWER UNIT | 0.5 HP |
| COOLANT PUMP | 0.125 HP |
| REGULATING WHEEL INCLINATION ANGELS: | |
| TILTING ANGLE | 5 DEGREE |
| SWIVEL ANGLE | +- 5 DEGREE |
| APPROX. WEIGHT | 1.5 TON |
| COMPLETE WITH HYDRAULIC DRESSER |
